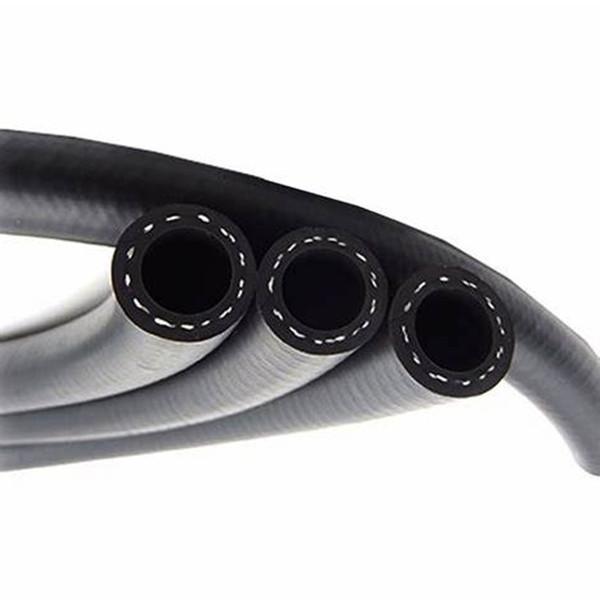

NBR Black Rubber Fuel Hose Fiber Braided 20 Bar For Fuel Transfer
NBR Black Rubber Fuel Hose Fiber Braided 20 Bar For Fuel Transfer
NBR Black Rubber Fuel Hose Fiber Braided 20 Bar For Fuel Transfer
NBR Black Rubber Fuel Hose Fiber Braided 20 Bar For Fuel Transfer
NBR Black Rubber Fuel Hose Fiber Braided 20 Bar For Fuel Transfer
NBR Black Rubber Fuel Hose Fiber Braided 20 Bar For Fuel Transfer
NBR Black Rubber Fuel Hose Fiber Braided 20 Bar For Fuel Transfer
NBR Black Rubber Fuel Hose Fiber Braided 20 Bar For Fuel Transfer
Specifications
Brand Name :
PASSION
Model Number :
3/8"
Certification :
ISO， CE
Place of Origin :
CHINA
MOQ :
1000m each size
Price :
USD 0.6 M
Payment Terms :
L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability :
300000M / month
Delivery Time :
25 days on receipt of the deposit payment
Packaging Details :
hoses are well packed by braided strips for export.
Material :
Nitrile
Application :
Mainly used for circulating petrol and kerosene, or the oil products with contents of aromatic substances etc.
Color :
black/red/blue/yellow
Package :
Well Packed in OPP Film and Braided Strap
Size :
1/4 inch~1 inch
Temperature Resistance :
-30c-to +100c
Working Pressure :
300psi
Bursting Pressure :
900psi
Length :
50m / roll or 100m/ roll
Printings :
accordingly to client's request
MOQ :
1000M each size
Sea Port :
Shanghai Port or Ningbo Port
Product Name :
NBR Black Rubber Fuel Hose Fiber Braided 20 Bar Petrol Fuel Hose for Fuel Transfer
Key Words :
Diesel Transfer Hose
Description

NBR Black Rubber Fuel Hose Fiber Braided 20 Bar Petrol Fuel Hose for Fuel Transfer

Construction - Tube: NBR
Reinforcement: High tensile polyester fiber braided.
Cover: NBR
Temperature: -30ºC to +100ºC
Color: Black, Red, Blue etc.
Application: Mainly used for circulating petrol and kerosene, or the oil products with contents of aromatic substances etc.
Standard length:
50m, 100m.
Specification:

Inner

Diameter

 Outer Diameter Working Pressure Burst Pressure Length Measurement Weight
inch mm mm bar psi bar psi m cbm/roll kg/m
3/16" 5 11.5 20 300 60 900 100 0.028 0.15
1/4" 6 13 20 300 60 900 100 0.031 0.17
5/16" 8 15 20 300 60 900 100 0.0353 0.216
3/8" 10 17 20 300 60 900 100 0.0442 0.24
1/2" 12.7 22 20 300 60 900 100 0.0756 0.428
5/8" 16 25 20 300 60 900 50 0.0329 0.40
3/4" 19 29 20 300 60 900 50 0.0572 0.60
1" 25 36 20 300 60 900 50 0.099 0.84
1-1/4" 32 43 10 150 30 450 50 0.170 1.20
1-1/2" 38 50 10 150 30 450 50 0.190 1.39
2" 51 65 10 150 30 450 50 0.410 1.80

NBR Black Rubber Fuel Hose Fiber Braided 20 Bar For Fuel Transfer

NBR Black Rubber Fuel Hose Fiber Braided 20 Bar For Fuel Transfer

NBR Black Rubber Fuel Hose Fiber Braided 20 Bar For Fuel Transfer

NBR Black Rubber Fuel Hose Fiber Braided 20 Bar For Fuel Transfer

About PAISHUN


The factory covers a land of over 1.5 hectares, and the workshops occupy a surface of 7500 square meters. We own complete production lines of rubber mixing process, cold feeding
The factory covers a land of over 1.5 hectares, and the workshops occupy a surface of 7500 square meters. We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.

We produce mainly the industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.
