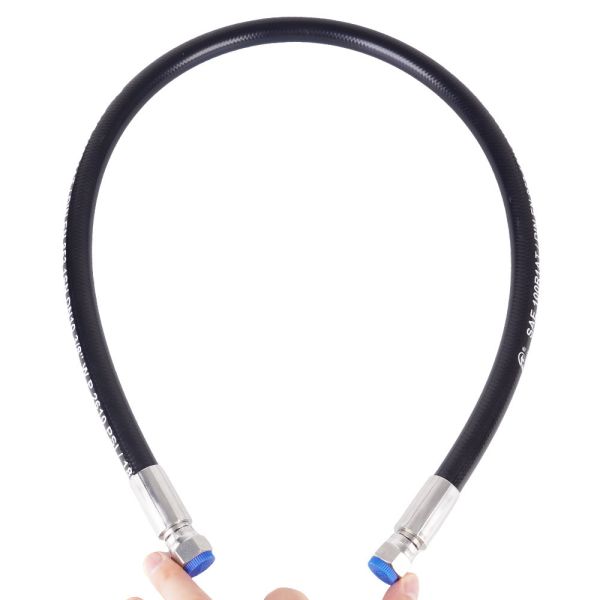

SAE 100R1& EN853 1SN 3/8'' Smooth Surface Hydraulic Hose Assembly
SAE 100R1& EN853 1SN 3/8'' Smooth Surface Hydraulic Hose Assembly
SAE 100R1& EN853 1SN 3/8'' Smooth Surface Hydraulic Hose Assembly
SAE 100R1& EN853 1SN 3/8'' Smooth Surface Hydraulic Hose Assembly
SAE 100R1& EN853 1SN 3/8'' Smooth Surface Hydraulic Hose Assembly
SAE 100R1& EN853 1SN 3/8'' Smooth Surface Hydraulic Hose Assembly
SAE 100R1& EN853 1SN 3/8'' Smooth Surface Hydraulic Hose Assembly
SAE 100R1& EN853 1SN 3/8'' Smooth Surface Hydraulic Hose Assembly
SAE 100R1& EN853 1SN 3/8'' Smooth Surface Hydraulic Hose Assembly
SAE 100R1& EN853 1SN 3/8'' Smooth Surface Hydraulic Hose Assembly
SAE 100R1& EN853 1SN 3/8'' Smooth Surface Hydraulic Hose Assembly
SAE 100R1& EN853 1SN 3/8'' Smooth Surface Hydraulic Hose Assembly
Specifications
Brand Name :
PASSIONCO HOSE
Model Number :
PG01-10
Certification :
CE, RoSH
Place of Origin :
Zhejiang, China
MOQ :
100pieces
Price :
USD5.6~6.0 per piece
Payment Terms :
L/C, T/T
Supply Ability :
200,000meters per month
Delivery Time :
4 weeks
Packaging Details :
Strong woven stripes wrapped
Inner Tube :
Oil Resistant Sythetic Rubber
Outer Cover :
Abrasion & Ozone Resistant Synthetic Rubber
Working Pressure :
18MPa / 180bar / 2610psi
Bursting Pressure :
72MPa / 720bar / 10440psi
Standard :
DIN EN853 1SN / SAE 100R1AT
Temperature Range :
-40℃~+100℃
Surface :
Smooth Cover
Length :
0.9meter
Fitting :
Movable Fittings
Logo :
Custom Logo
Description

SAE 100R1 Hydraulic Hose Assembly

Description:

Our hoses have reliable quality, all CE and RoHS are approved.
Our factory is ISO 9001 approved, we have a complete line of test machines. We test every batch of goods before shipping.
We just imported 14 sets of brand-new automatic inner hose knitting machines from Italy. The knitting speed is faster, production capacity has been greatly improved, and quality is better and more stable.
Color can be black, blue, gray, or as you request.
We have over 10 years of experience producing pressure washer hoses.
We offer free samples.
We can print words and your logo on the hose as per your request.
We are a factory, and prices are lower.

Product Parameters:

3/8'' Smooth Surface Hydraulic Hose Assembly
Application Auto System, Construction, Agriculture and other machine hydraulic system.
Reinforcement One Braid of High Tensile Steel Wire
TEMP. Rang -40ºC~100ºC / -40ºF~+212ºF (Max 120ºC / 248ºF Intermittent)
Inner Diameter 3/8'' (9.8mm)
Certifications CE & RoHS approved.
Fittings Movable Fittings
Standards DN EN853 / SAE 100R1AT
Length 0.9 meter/piece
Specific Parameters
Part Number I.D O.D Max W.P. Min B.P. Min Bend Radius Weight
NO. inch mm mm psi mpa psi mpa inch mm kg/meter
PR1-04 1/4 6.5 13.2 3260 22.5 13050 90.0 3.94 100 0.22
PR1-05 5/16 8.1 14.8 3115 21.5 12470 86.0 4.53 115 0.26
PR1-06 3/8 9.8 17.1 2610 18.0 10440 72.0 4.92 125 0.33
PR1-08 1/2 12.8 20.1 2320 16.0 9280 64.0 7.09 180 0.41
PR1-10 5/8 16.0 23.4 1885 13.0 7540 52.0 8.08 205 0.49
PR1-12 3/4 19.0 27.3 1520 10.5 6090 42.0 9.45 240 0.63
PR1-16 1 25.4 35.0 1275 8.8 5105 35.2 11.81 300 0.92
PR1-20 1-1/4 31.8 42.8 915 6.3 3655 25.2 16.54 420 1.23
PR1-24 1-1/2 38.1 50.0 725 5.0 2900 20.0 19.69 500 1.54
PR1-32 2 50.8 62.6 580 4.0 2320 16.0 24.80 630 1.91

Applications:

This hydraulic hose is constructed of synthetic rubber with one high-tensile steel wire braid reinforcement layer for durability.

It has incredible flexibility, which is weather-resistant, corrosion-proof, and explosion-proof. The hose is ideal for construction, agriculture, and other machinery that uses a hydraulic system.

Advantages:

1. High Pressure Resistance.

2. Long life.
3. Aging resistance.
4. Joint is Firmly Buckled.
5. Customized LOGO.
6. Wear Resistance.
7. High Flexibility.
8. No Kinks.
SAE 100R1& EN853 1SN 3/8'' Smooth Surface Hydraulic Hose Assembly

PLEASE FEEL FREE TO CONTACT US FOR ANY QUESTION!

PASSION FOR HOSE, PASSION FOR YOU!
