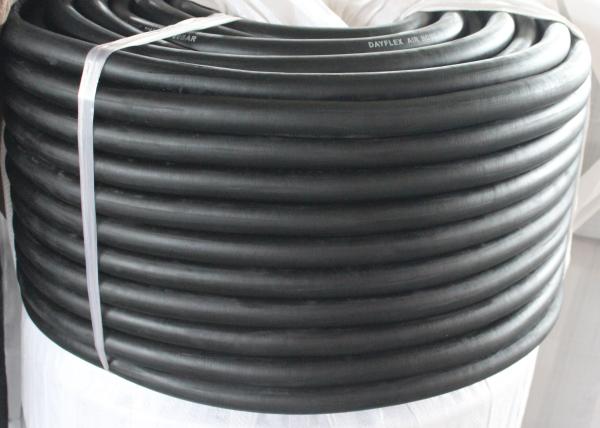

High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose
High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose
High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose
High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose
High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose
High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose
High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose
High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose
High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose
High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose
High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose
High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose
Specifications
Brand Name :
PASSIONCO HOSE
Model Number :
PA-10
Certification :
RoHS, CE
Place of Origin :
Zhejiang, China
MOQ :
1000meters
Price :
USD0.4~0.6 per meter
Payment Terms :
L/C, T/T
Supply Ability :
200,000 meters per month
Delivery Time :
4 weeks
Packaging Details :
Strong woven stripes wrapped
Material :
EPDM
Inner Diameter :
5/16''
Application :
Pneumatic Equipment, Compressed Air
Standard Length :
25FT, 50FT (Customized)
Temp. Range :
-30℃~+80℃
Cover :
Smooth EPDM Synthetic Rubber
Working Pressure :
20bar / 300psi
Bursting Pressure :
60bar / 900psi
Color Option :
Red, Blue, Black, Green, etc.
Description

5/16'' Rubber Air Intake Hose

Description:

An air hose used in pneumatic tools is a flexible tube designed to carry compressed air from an air compressor to various pneumatic devices. These hoses are typically made from materials like RUBBER, which offer durability and flexibility, allowing easy movement and maneuverability during use

Key applications include:

Powering Tools: Commonly used for tools such as grinders, sanders, spray guns, and drills

System Connectivity: They connect the compressor to the tools, ensuring efficient air transfer and operational efficiency

Versatile Use: Suitable for various industrial and construction applications where pneumatic power is needed

Proper selection and maintenance of air hoses are crucial for ensuring optimal performance and safety when using pneumatic tools.

High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake HoseHigh Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake HoseHigh Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose

Product Parameters:

5/16'' Rubber Air Intake Hose
Application Industrial, Automotive, Construction, etc.
Color option Red/Blue/Black/Green/Orange/Yellow etc.
TEMP. Rang -30ºC ~ +80ºC
Inner Diameter 5/16''(8mm)
Certifications CE & RoHS approved.
Inner Tube NR & SBR Synthetic Rubber.
Outer Cover SBR & EPDM Synthetic Rubber.
Specific Parameters
Part Number I.D O.D Max W.P. Min B.P. Min Bend Radius Weight
NO. inch mm inch mm psi bar psi bar inch mm kg/meter
PA-05 3/16 4.8 0.45 11.5 300 20 900 60 4.53 115 0.15
PA-06 1/4 6.3 0.51 13.0 300 20 900 60 5.12 130 0.17
PA-08 5/16 8.0 0.59 15.0 300 20 900 60 5.91 150 0.22
PA-10 3/8 10.0 0.67 17.0 300 20 900 60 6.69 170 0.26
PA-13 1/2 12.7 0.83 21.0 300 20 900 60 8.27 210 0.40
PA-16 5/8 16.0 0.94 24.0 300 20 900 60 9.45 240 0.47
PA-19 3/4 19.0 1.14 29.0 300 20 900 60 11.42 290 0.60
PA-25 1 25.4 1.40 35.5 300 20 900 60 13.98 355 0.78

Applications:

Powering Tools: They are commonly used to power pneumatic tools such as nail guns, impact wrenches, grinders, and spray guns. This allows for efficient and effective operation of tools that require compressed air.

Transportation of Compressed Air: Air hoses facilitate the transfer of compressed air from an air compressor to the tools or equipment in use. This is crucial in environments like workshops, construction sites, and manufacturing facilities.

Automotive Repair: In automotive settings, air hoses are vital for operating pneumatic tools used in repairs, painting, and assembly processes.

Versatile Applications: They are also used in home improvement projects, gardening (for air-powered sprayers), and industrial automation, showcasing their versatility in various contexts.

Advantages:

1. Customized sizes.
2. Long life.
3. Aging resistance.
4. Customized LOGO.
5. Wear Resistance.
6. High Flexibility.
7. No Kinks.
High Quality Lightweight Pneumatic Tool 5/16'' Rubber Air Intake Hose
