Specifications
Brand Name :
BEST
Model Number :
4070J/60100J
Certification :
CE
Place of Origin :
wenzhou
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20sets/month
Delivery Time :
20days
Packaging Details :
wooden box
Max. Printing size :
380×700
Max. Screen size :
700×1100
Name :
LC-4070J/60100J non-woven label sticker servo auto unwinding rewinding roll to roll silk screen printing machinery ce
voltage :
380
color :
customized
warranty :
1 year
Description

Allfine Group-20 years experience Solution
1:Label production line- flexo print machine,die cutting machine,slitting machine,inspection and rewinding machine
2:Flexible package line-water bottle label PVC,heat transfer Pet, Opp, Pe etc rotogravure printer, dry laminator, PP PE film blowing machine,bag making machine
3:Decal paper,wine and smoking package-Silk screen press machinery, wicket dryer, uv dryer
4:Paper cup production line- flexo printer. die cutting machine, paper cup making machine

1: Save material 2: Improve efficiency 3:Professional tranning 4: Factory built

Partner Manager-Jack Huang
Allfine Group

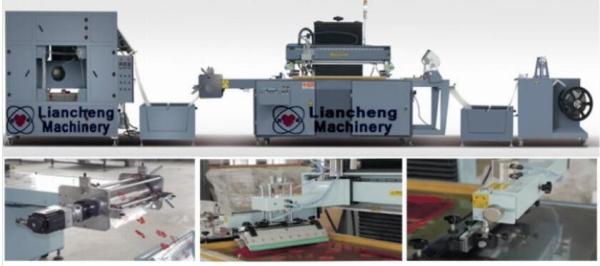

LC-4070J/60100J non-woven label sticker servo auto unwinding rewinding roll to roll silk screen printing machinery ce
screen printing production line.pdf
We provide the classic automatic stop-cylinder screen press with max. speed up to 4,000 sheets/hour, which can compete with world famous brand like Sakurai and SPS. And the semi-automatic and 3/4 automatic flat-bed screen press are also available for short run jobs. You can also find all necessary auxilaury machines for making the screen plate in our product range.

After equipped with various dryers and cooling systems, the production line can work out multi-color screen printing, UV spot gloss varnishing, glitter coating, scatcher card printing, decal screen printing and also a few kinds of luxurious finishing effects for the printed sheets.

Automatic discharge, length pull feeding, automatic winding, dual servo control the pull-print materials, ensure that the printing accuracy and printing quality; modular design is more conducive to the installation of UV curing equipment, extended print range.

Applications
◆ appliances, electronics industry: electrical control membrane switch, nameplate, IML, IMD, remote control panels, flexible circuit boards;
◆ Communication information industry: the phone keypad, battery accessories, computers and peripheral terminal equipment nameplate label;
◆ industrial control: electronic switches, instrument panel labels;
◆ Transportation: Traffic police standard shipping labels, containers, automobile car stickers, car and motorcycle decorative stickers and the like;
◆ garment and textile industry: non-woven printing, textile and apparel in the transfer;
◆ printing and packaging industry: stickers and other stickers.
Technical data
Model LC-4070J LC-60100J
Max. Printing size 380×700 580×1000
Max. Screen size 700×1100 900×1400
Material Width 150～400 150～600
Max. Dia of Feed roller Φ 500 Φ 500
Max. Dia of Collection roller Φ 500 Φ 500
Printing Speed (times/hour) 1800 1800
Substrate thickness 0.07 ～ 0.38 0.07 ～ 0.38
Printer Power 3P 380V 50Hz 2.7 Kw 3P 380V 50Hz 2.7 Kw
Oven Power 3P 380V 50Hz 13 Kw 3P 380V 50Hz 13 Kw
Gas 5-7Kgs/cm2 5-7Kgs/cm2
Overall size of printing part 5200×1300×1780 6400×1370×1950
Overall size of oven 2150×950×1970 2150×1200×1970
Europe Patented designing imported parts 20 years experience screen printer



Features
1. Controller: Japan Omron PLC control with Omron touch screen, ease of operation
2. Infeed: inflatable drum loading roll material is convenient, saves time and effort

3. Feeding: photoelectric control, rewinding, to avoid the substrate surface scratches, automatic dust
removal device to reduce the defect rate and improve print quality; and optional anti-static device
4. Printing table: with vacuum suction and blow-back function

5. Squeegee: squeegee with constant pressure and anti-drip ink device (patented), ensure printing
pressure uniform and ink layer is uniform, ensure print quality
6. The screen holder: the screen holder designed as activities cantilever, shift and adjust easily and effort

7. Printing: servo motor drive with precision guide, start and stop stable, printing uniform, to ensure the
uniformity of the printed ink layer

8. Alignment: multi-color automatic tracking, the PLC + Germany SICK color sensors control, alignment and
overprint are accurate and stable, adjustable precision micrometer, adjustment accuracy of sensor is up to
0.005mm

9. Cited material: set the length in touch screen, servo drive to cited material, with color sensor, the length
of pulled up material is accurate and stable

10. Dry-collection: opto sensors control collection, stop when no substrate, speed is frequency stepless
and avoid the scratching of the substrate surface; closed oven, good thermal insulation, low heat loss, save
energy, circulation drying, heat evenly, and not easily deformed

11. Screen adjustment: precision machining screw, to ensure that the regulation accuracy, with the bit
scale, rapid completion of the stencil pattern alignment

Unwind and infeed section – The roll of stock must be held under control so the web can unwind as needed.
Printing section – Single color station including the fountain, anilox, plate and impression rolls.
Drying station – High velocity heated air, specially formulated inks and an after-dryer can be used.
Outfeed and rewind section – Similar to the unwind segment, keeps web tension controlled.

1. Fountain roller
The fountain roller transfers the ink that is located in the ink pan to the second roller, which is the anilox roller. In Modern Flexo printing this is called a Meter or "metering" roller.
2. Anilox roler
This is what makes flexography unique. The anilox roller meters the predetermined ink that is transferred for uniform thickness. It has engraved cells that carry a certain capacity of inks that can only be seen with a microscope. These rollers are responsible to transfer the inks to the flexible-plates that are already mounted on the Plate Cylinders.
