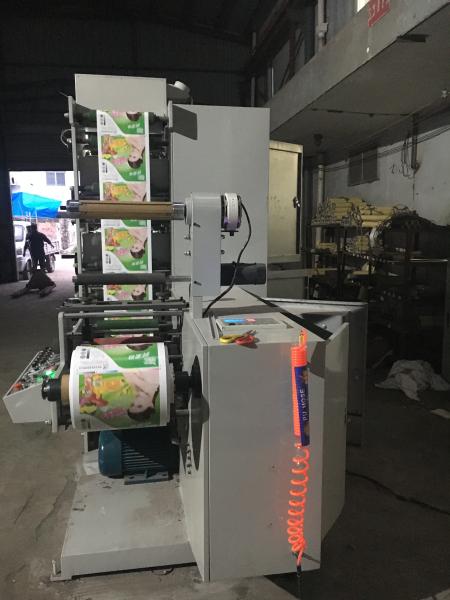

RY320-4c Auto Label Flexo Printing Machine Automatic Flexographic Flexo Label Printing Machine (Printer Machine)
RY320-4c Auto Label Flexo Printing Machine Automatic Flexographic Flexo Label Printing Machine (Printer Machine)
RY320-4c Auto Label Flexo Printing Machine Automatic Flexographic Flexo Label Printing Machine (Printer Machine)
RY320-4c Auto Label Flexo Printing Machine Automatic Flexographic Flexo Label Printing Machine (Printer Machine)
RY320-4c Auto Label Flexo Printing Machine Automatic Flexographic Flexo Label Printing Machine (Printer Machine)
RY320-4c Auto Label Flexo Printing Machine Automatic Flexographic Flexo Label Printing Machine (Printer Machine)
RY320-4c Auto Label Flexo Printing Machine Automatic Flexographic Flexo Label Printing Machine (Printer Machine)
RY320-4c Auto Label Flexo Printing Machine Automatic Flexographic Flexo Label Printing Machine (Printer Machine)
Specifications
Brand Name :
BEST
Model Number :
LC-7320
Certification :
CE
Place of Origin :
wenzhou
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 sets/ 45 days
Delivery Time :
45 days
Packaging Details :
wooden box
Printing speed :
100m/m
Printing color :
7 colors
Max. width of paper :
350mm
Name :
RY320-4c Auto Label Flexo Printing Machine Automatic Flexographic Flexo Label Printing Machine (Printer Machine)
Voltage :
380
color :
customized
Description

Allfine Group-20 years experience Solution

1:Label production line- flexo print machine,die cutting machine,slitting machine,inspection and rewinding machine
2:Flexible package line-water bottle label PVC,heat transfer Pet, Opp, Pe etc rotogravure printer, dry laminator, PP PE film blowing machine,bag making machine
3:Decal paper,wine and smoking package-Silk screen press machinery, wicket dryer, uv dryer
4:Paper cup production line- flexo printer. die cutting machine, paper cup making machine

1: Save material 2: Improve efficiency 3:Professional tranning 4: Factory built

Partner Manager-Jack Huang
Allfine Group

RY320-4c Auto Label Flexo Printing Machine Automatic Flexographic Flexo Label Printing Machine (Printer Machine)

flexo printing production line.pdf

Model Label flexo printing machine (printing speed 100m/min)
Width 320mm 420mm 520mm
Note: upgrade model will be with 2 servo motors and drives, PLC(Germany siemens), Touch screen(Taiwan Weinview), etc. The printing speed is 100m/min.

Standard configuration

1. 1set of printing rollers

2. 1set of anilox roller

3. IR Dryer

4. One rotary die-cutting station

5. Unwinder tension controller (China brand)

6. Rewinder tension controller (China brand)

7. Web-guiding system: Simulation EPC

1.main motor use imported Variable frequency stepless speed regulation
2.unwinding and rewinding by magnetic brake,clutch control( optional:mitsubishi auto tension controller)
3.Unwinding device controlled by auto web guide sensor
4.Use the ceramic anilox roller, more wear and corrosion resistance and longer life, reduce the time of replacement of anilox roller, improve the printing efficiency
5.Printing unit use 360 degree adjustment for web. they can be printed connected or separated
6.very printing unit have one IR dryer
7.Optional:UV dryer
8.Rewinding and unwinding adopt tile air shaft
9.The ink roller can be auto break away and running at low speed to prevent ink from drying
10.auto add oil for the die cutting system, to reduce the heating made by magnetic die cutting roller when using
11.from feeding paper, printing, gluing, uv polishing, laminating, printing, Reverse die cutting, die cutting, die cutting dotted line, rewinding finished continues, take advantage of widely printing, no oil pollution, high economic efficient, fast printing ect,. Ideal for the logistic label printing
Advantage:water ink printing,more environmental protection,suit for middle and high standard adhesive sticker/label printed, special for security labels,food labels,medicine labels etc

Technical Data
Model 320 420 520
Printing speed 100m/min 100m/min 100m/min
Printing color 4colours 4colours 4colours
Max. width of paper 350mm 450mm 550mm
Max .printing width 320mm 420mm 520mm
Max. unwinding diameter 600mm 600mm 600mm
Max. rewinding diameter 600mm 600mm 600mm
Printing length 175-355mm 175-355mm 175-355mm
Precision of chromatography ±0.1mm ±0.1mm ±0.1mm
Dimensions 2m*1.0m*2.2m 2m*1.1m*2.2m 2m*1.2m*2.2m
Machine weight About 2600kg About 2800kg About 3000kg
RY320-4c Auto Label Flexo Printing Machine Automatic Flexographic Flexo Label Printing Machine (Printer Machine)RY320-4c Auto Label Flexo Printing Machine Automatic Flexographic Flexo Label Printing Machine (Printer Machine)

LC-320Z automatic label die cutting machine
HD video link about LC- 350Z Medium Speed Die Cutting Machine (300 times per min, running at domestic customer's factory)
https://youtu.be/BwWWdGclTH8

During the early part of the 20th century, the technique was used extensively in food packaging in the United States. However, in the 1940s, the Food and Drug Administration classified aniline dyes as unsuitable for food packaging. Printing sales plummeted. Individual firms tried using new names for the process, such as "Lustro Printing" and "Transglo Printing", but met with limited success. Even after the Food and Drug Administration approved the aniline process in 1949 using new, safe inks, sales continued to decline as some food manufacturers still refused to consider aniline printing. Worried about the image of the industry, packaging representatives decided the process needed to be renamed.
