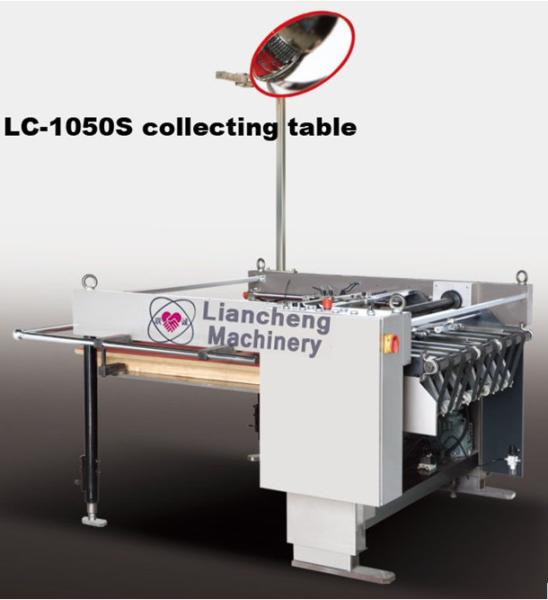

LC-1050S collection machine collect the paper and make them in order automatically full-automatic cylinder screen press
LC-1050S collection machine collect the paper and make them in order automatically full-automatic cylinder screen press
Specifications
Brand Name :
Best
Model Number :
LC-1050S
Certification :
CE
Place of Origin :
wenzhou
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10sets/month
Delivery Time :
20-30 working
Packaging Details :
fumigation wooden
Description
Usage characteristic
1050S Full automatic stacker can combine with full-automatic cylinder type screen press and all kinds of dryer together to collect the paper and make them in order automatically.

Technical data
Model LC-1050S
Max.Paper size 1100×750 mm
Min.Paper size 560×350 mm
Max.Pile height 700 mm
Top speed 3600pcs/h
Installed power 3P 380V 50Hz 1.32KW
Total weight 650 kg
Overall size 1500×1800×1000 mm

Features
1. The whole machine is controlled by PLC, collecting printing substrate and making the paper in order automatically.
2. Photoelectricity monitoring,two sides of baffles run when the paper comeinto the plate.
3. Paper conveying system is controlled by inverter with stepless speed regulation and conveyor belt guide the idler wheel to feed the paper.
4. Pneumatical elements control the jogger action, which avoid paper to be broken or other damage.
5. Following all kinds of paper size, paper jogging device can be adjusted from back, left and right easily and conveniently.
6. Induction sensor make the stacking board down automatically and keep paper collect smoothly.
7. Paper stacker has limitation safety mechanism at up and down position to avoid the machine from damaged.
8. Paper jam and paper pile height supervision and make the printing press stop in-line.
9. Connected with the printing part which can control the printing part's running.
10. Paper counting function.
