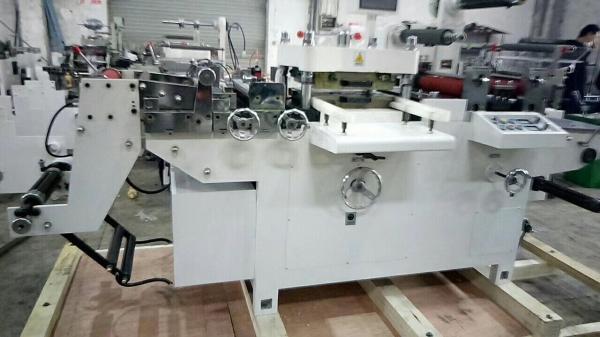

MQ-350C Double head Station Label Hot Stamping and Die Cutting Machine 300times/m
MQ-350C Double head Station Label Hot Stamping and Die Cutting Machine 300times/m
Specifications
Brand Name :
Best
Model Number :
MQ-350C
Certification :
CE
Place of Origin :
wenzhou
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5sets/month
Delivery Time :
40-60 working days
Packaging Details :
fumigation wooden box
Description

Extended functions: laminating-hot stamping-hole punching

Standard functions: unwinding-die cutting-waste discharging-cutting into pieces-rewinding

The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark.this machine is matching with different printing machine and slitting machine, such as roll paper printing machine,flexo printing machine,screen printing machine,gravure printing machine.

This machine is widely used in electronic line, adhesive product line and

so on.

Features:

This machine is insistent of platen pressing structure, servo system control the material feeding and forwarding, the photoelectric eyes track the material colors, unwinding-die cutting-waste discharging-sheet cutting-rewinding all are completed in one turn, all are control by PLC control system.

Technical parameters:

型号 Model MQ-350C
最大进料宽度 Max. Feeding width 320mm
模切面积 Cutting/stamping area 310*350mm
模切速度 Cutting speed 300 times/min
定位精准度 Position accuracy ±0.10mm
主机功率 Power of main motor 5.5kw
外形尺寸 Size(L*W*H) 3800mmx1400mmx1600mm
放料直径 Unwinding/rewinding diameter 600mm
电压 Voltage 380v,3ph
总功率 Total power 10kw
重量 weight 2200kg
