Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic
Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic
Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic
Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic
Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic
Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic
Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic
Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic
Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic
Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic
Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic
Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic
Specifications
Brand Name :
FENGMING
Model Number :
FM-B1020
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
10 Sets / Month
Delivery Time :
30 working days
Packaging Details :
wooden pallet
Model NO. :
FM-B920-1320
Structure :
Unit Type
Application :
Flexible Packaging Printing
Automatic Grade :
Automatic
Printing Speed :
150m/mim
Max. Web Width :
1020mm
Max. Printing Width :
1000mm
Printing Repeat Length :
286-1200mm
Max. Unwinder/Rewinder Diameter :
1524mm
Gearing :
1/8 Cp
Max. Printing Speed :
150m/Min
Diameter of Web Roller :
100mm
Main Motor Power :
11kw
Drying Mode :
Hot Air Drying & IR Drying
Ink Used :
Water Based Ink
Power Supply :
380V 3pH 50Hz
Printing Material :
60-350GSM Paper Roll
Transport Package :
with Wooden Pallet Packing
Specification :
CE
Trademark :
Fengming
Origin :
Zhejiang, China
HS Code :
8443160090
Printing Page :
Single Faced
Printing Color :
4 Colors
Anilox Roller :
Ceramic Anilox Roller
Dryer :
UV& IR
Type :
Flexo
Embossing Structure :
Rotary Letterpress
Customization :
Available | Customized Request
Description

Woven Bag Printing Machinery with Max. Printing Speed of 150m/Min Customized Request

Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic

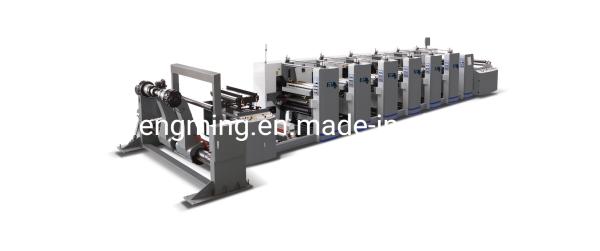

FM-B650-1320 MODEL FLEXOGRAPHIC PRINTING MACHINE


Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic

Application Object
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:
Specification 1020 1300 1350
Max. Web Width 1020mm 1300mm 1350mm
Max. Printing Width 1000mm 1270mm 1320mm
Printing Repeat 286-1200mm 286-1200mm 286-1200mm
Max.Unwinder Diameter 1524mm 1524mm 1524mm
Max.Rewinder Diameter 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp
Max Printing Speed 150m/min 150m/min 150m/min
Diameter of web roller 100mm 100mm 100mm
Drying mode Hot air Drying/IR Drying/ UV Drying
Substrate 80-400g chrome paper, aluminum-foil paper, BOPP, paper board, kraft paper.



Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic

Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic

Woven Bag Printing Machine 150m/Min 1020mm Unit Type Automatic
