Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing
Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing
Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing
Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing
Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing
Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing
Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing
Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing
Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing
Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing
Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing
Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing
Specifications
Brand Name :
FENGMING
Model Number :
FM-B1020
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
20/Month
Delivery Time :
30 working days
Packaging Details :
wooden pallet
Structure :
Unit Type
Application :
Flexible Packaging Printing
Automatic Grade :
Automatic
Printing Speed :
150m/mim
Transport Package :
Standard
Specification :
17*4.5*2M
Origin :
Zhejiang China
Warranty :
1 Year
Printing Page :
Single Faced
Printing Color :
6 Colors
Dryer :
UV& IR
Type :
Ink Jet
Embossing Structure :
Flexo Printing
Customization :
Available | Customized Request
Description

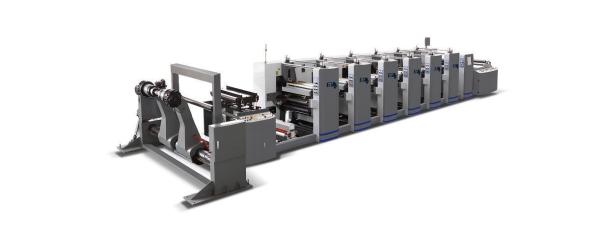

Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing

Product Parameters
Technical Parameters
Specification 47.5''(1200)
Max.Web Width 1220mm
Max.Printing Width 1200mm
Printing Pepeat 286--1200mm
Max.Unwinder Diameter 1524mm
Max.Pewinder Diameter 1524mm
Gearing 1/8cp
Max Printing Speed 150m/min
Diameter of web roller 100mm
Base motor power 11kw
Drying mode a. Warm Drying b. IR Drying c. UV Drying
Ink Used a. Water Based Ink b. UV ink
Power Requirement 380v 3PH 50 Hz
Substrate Copy paper, Cotton paper, paper board, Kraft paper etc.
Product Description
Main Characteristics
1. Petal type plate mounting, anilox and cylinder with quick change structure.
2. Printing unit easy opertion, cylinder and anilox pressing once successfully.
3. Plate full servo shaftless transmission, automatically pre-printing, time sving &material saving.
4. Registering remains the same during liftng process.

Application Object
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper bax, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used
Kraft paper, paper board, coated paper, liner paper, laminated paper, multilayer composite paper, nonwoven paper and carton board materials etc.

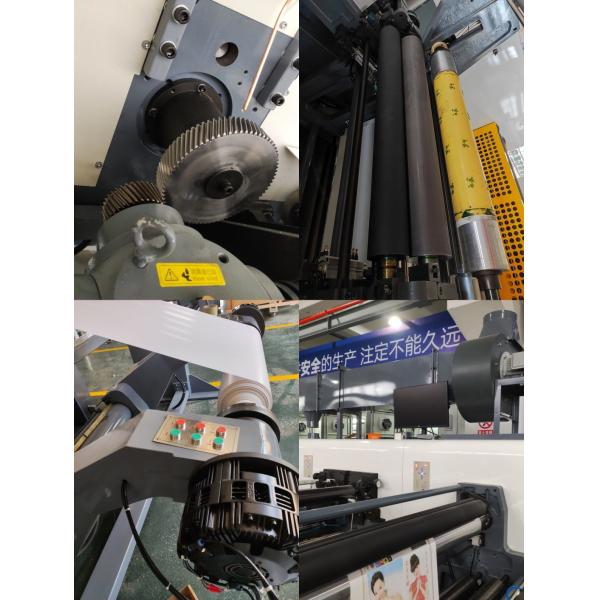

Detailed Photos


Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing

Packaging & Shipping

Single Faced Printing Unit Type 6 Colors Flexographic Machine for Paper Plate Varnishing
