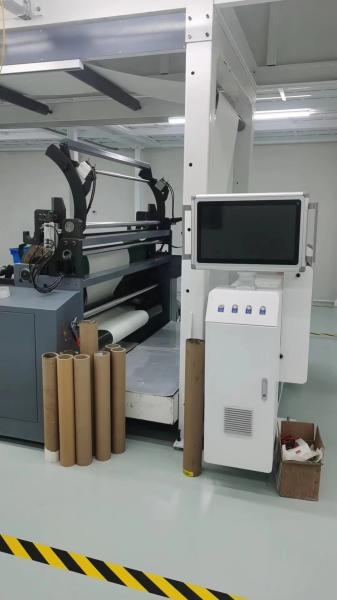

Web Guide System

●Paper Splicing Table : with pneumatic paper holding device.

●Ball screw electric actuator

●Adopt the photoelectric sensor for web guide transmission

●Electronic web guide traction device. If there is any excursion in paper feeding,the system will have a constant and accurate adjustment

●Adopt closed loop control system to accurately detect the deviation and correct it

●Hard Anodization to the paper guide HV 800-1000

●Inspection:the edge

●Web Guide precision:±0.02mm

In-feed Tension Control Unit

Use the double side pressure rubber roller to clutch and feed paper and to ensure the tension

Biodegradable Glue Coating Unit

●The coating is equipped with main power motor for setting the main speed.

●Special motor is used for coating ration. Through the scale setting of the computer, matching the relationship between formula and material provided by Fengming company, coating is finished according to the speed.

●The scraper part of Fengming company has independent intellectual property rights system. Its air volume is setted according to the curve of the computer and the infinite regulation by special blower.

●The glue supplying part is controlled by pneumatic diaphragm pump.

Technical Parameters:

Specification

FM-T 1020

Max. Web Width

1020mm

Max.Diameter Unwinder/Rewinder

1524mm

Thickness of Coating

3.5-8gsm

Drying Method

Hot Air & IR

Air Knife Length

1020mm

Substrate

Art paper, Cardboard paper, Kraft paper etc paper roll
