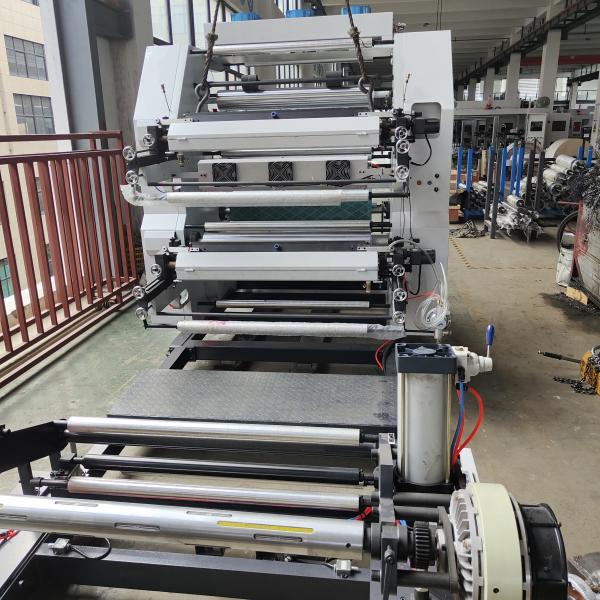

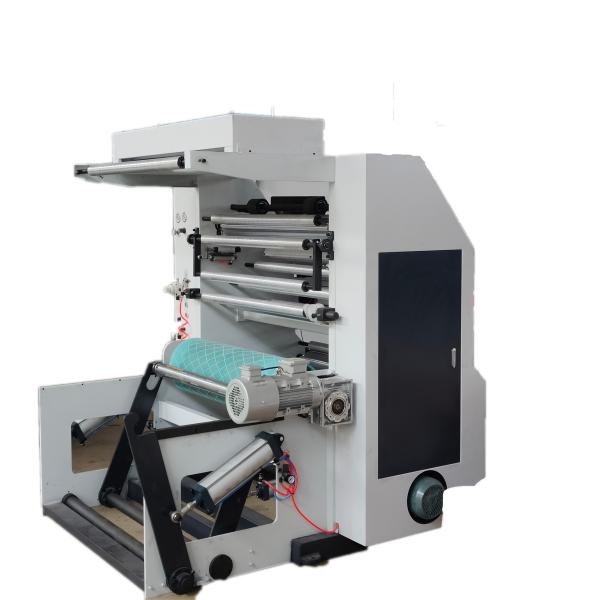

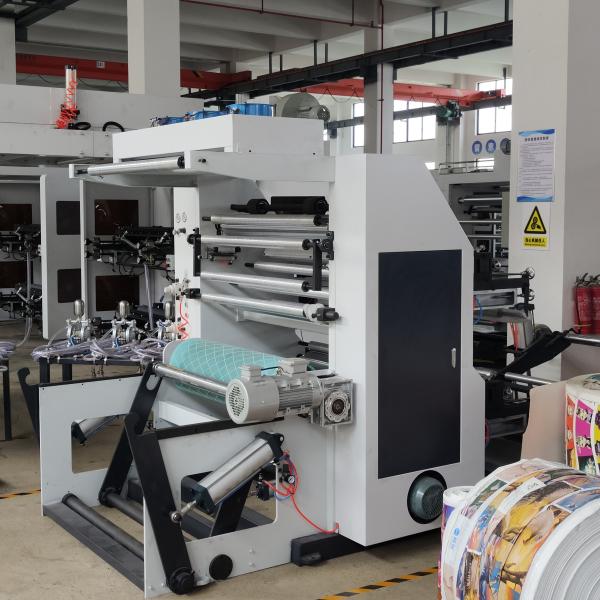

HJ-21000 Flexographic Printing Machine

Picture is just for your reference.

1. Main Variables:

A. Model: HJ-21000

B. Material: paper

C. Max. Width of Printing: 950mm

D. Max. Length of Printing: 200-1200mm

E. Max. Speed of Printing: 70m/min

F. Thickness of Plate(including glue):2.38mm

G.. Machine Dimension: 4500*2000*2300mm

H. Machine Weight: 1500kg

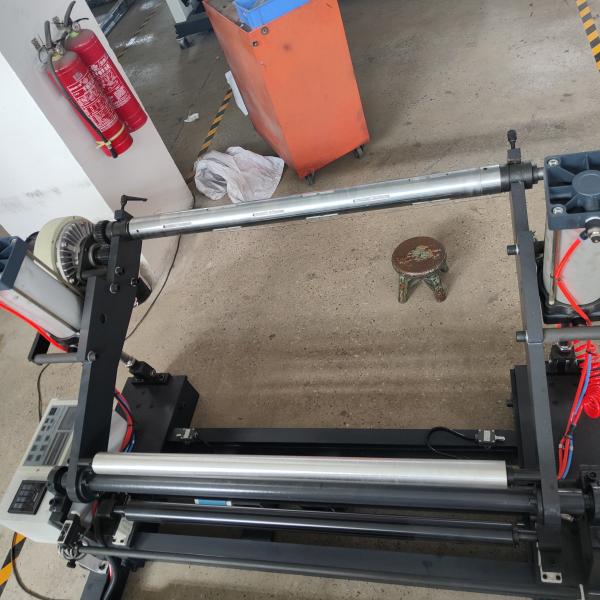

2. Unwind Unit:

A. Max. Length of Roller: 1050mm

B:Max. Length of Effective Roller: 1000 mm

C:Dia. Of Roller: 76mm

D:Max. Dia. Of Unwind: 1000mm

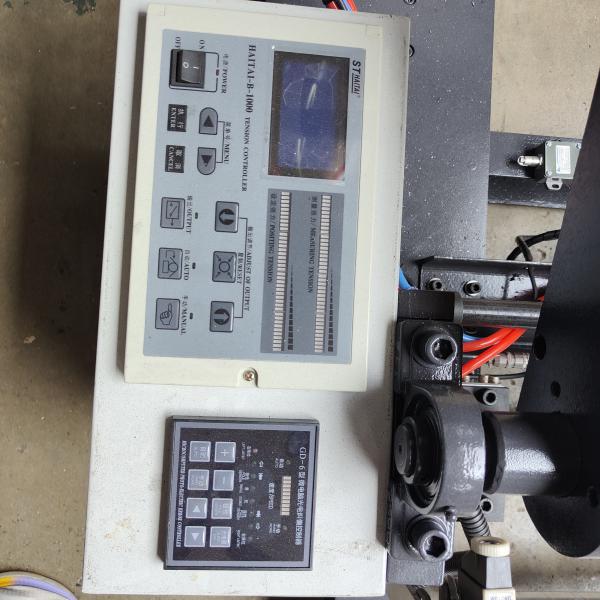

E:Method of Unwind: EPC device, magnetic powder, automatic tension, air shaft

F: Way of Laoding Paper Roll: Pneumatic type

3. Traction Unit:

A:Constitution of Traction: Rubber Roller and Chrome plated Roller

B:Traction Zones: 2

4:Printing Unit:

A. Constitution of Printing: Chrome plated Roller, Rubber Roller, Anilox roller, Plate Cylinder, Doctor Blade

B:Girth of Plate Cylinder: 200-1200mm

C:Material of Plate: Resin and Rubber

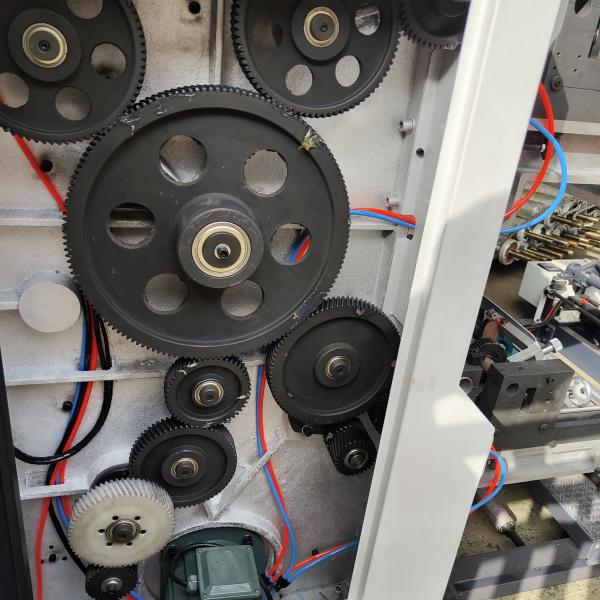

D:Principle of Work: Helical Gears Drive

E:Plated-glued roller adjusting: Pneumatic type

F: Anilox Roller: Ceramic Anilox roller: 1pc/per color

G: Doctor Blade: 1pc/ color

5:Heating and Drying Unit:

A. Type of Heating and drying : blowing first then heating

B:Heating Zones : Heating Tubes 5Zones

C:Power of Heating :7.5kw

D:Assistance of Drying Length: 1m

E:Small Fan:10pcs

F:Power of Small Fan:35w/pc

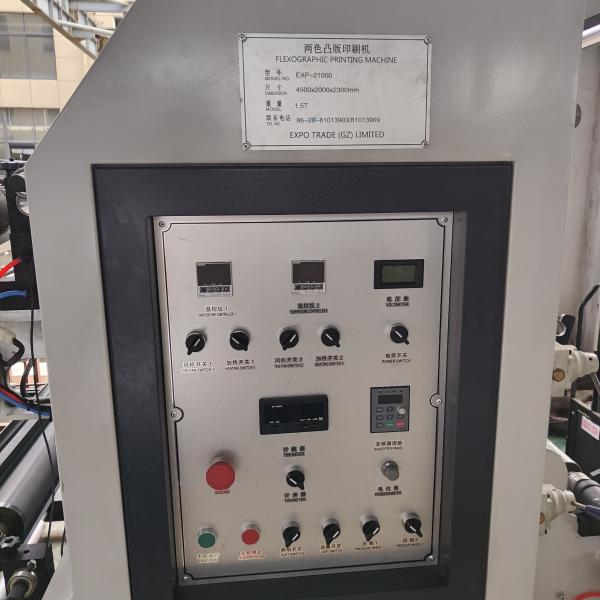

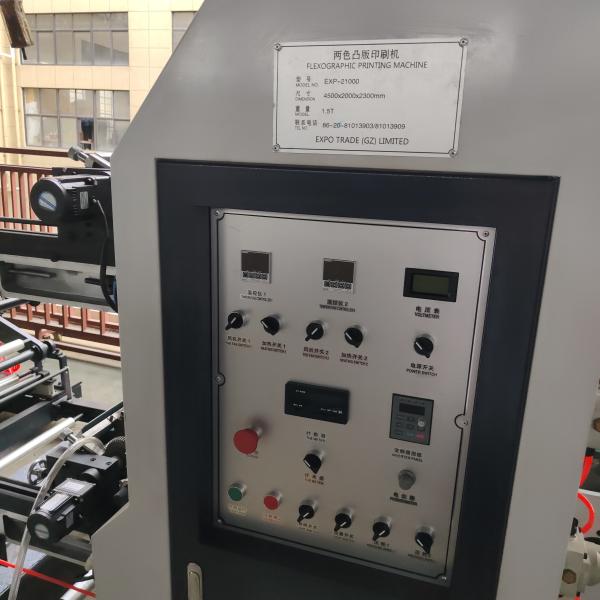

6:Electrical Parts:

A.:Main motors: 2.2kw

B:Ink-Transfer Motor:15w*2pcs

C:An speed adjustable Inverter Equips With the Main Motor

7:Rewind Unit:

A:Max. Length of Roller: 1050mm

B:Max. Length of Effective Roller: 1000mm

C:Dia. of Roller: 76mm

D:Max. Dia of Wind: 1000mm

E:Way of Rewind: Surface Rolling, Air shaft, Pneumatic type

8:Main Machine Specification List:

A. Main Motor: 1 pc (Kuayue, Shaihai)

B. Ink transfer motor: 1 pcs (Lianyi, Jinhua)

C: Converter Motor 1 pc (Ruian)

D: The inverter: 1pcs ( Kewo, Shenzhen)

F: Small fan: 10pcs (Changcheng, Suzhou)

G: Aluminum Rollers: (Ruian)

H: Ceramic Anilox Roller: 1 pc/per color (Murata)

I:Rubber rollers: 1 pc/per color (own product)

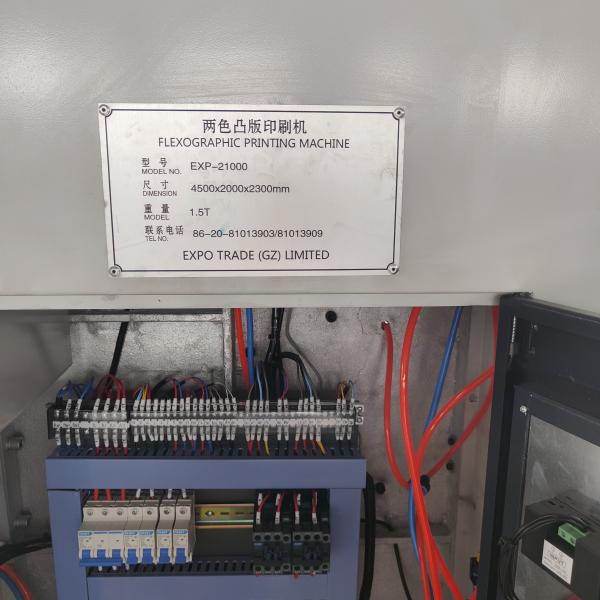

J:Low pressure Electrical parts :(Zhenju)

K:Switches: (Schneider emluator)

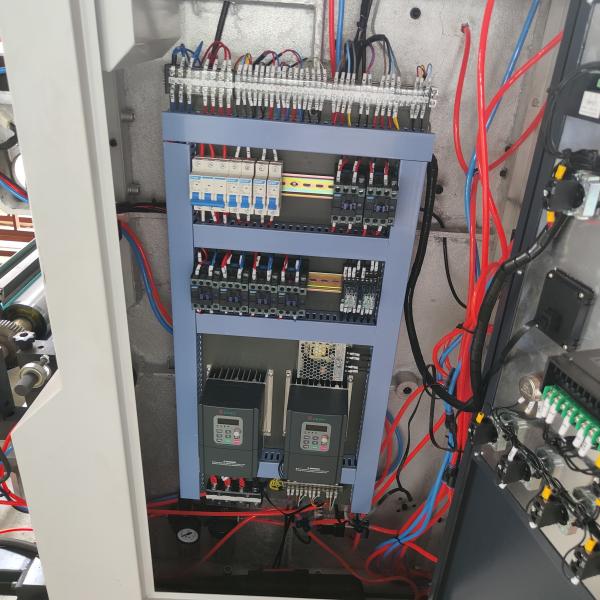

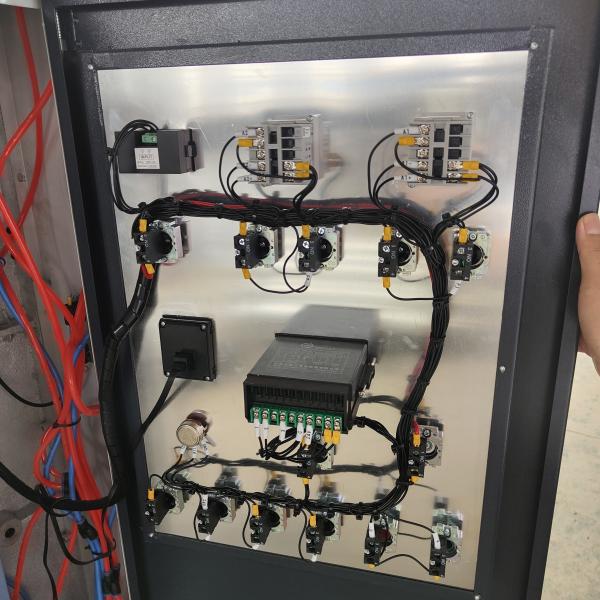

L:Electrical control Box: 1 set (own products)

M:Main machine body: 1 set (own products)

N:Main machine casting: 1set (Chuangxin Cast iron Co., Ltd, Henan)

O:Pneumatic component: 1 set (Chuangfeng Qidong)

9: Spare Parts For Free:

Tool Box 1 set (1-10# screwdriver, oil gun, Inner Hexagon Spanner 1 set)

Switches 2 pcs

Contactor 2 pcs

Heating tube 2 pcs

Machine operation instruction 1 pc

Inverter instruction 1 pc

Printing cylinder 1set (Printing length 400mm)
