Specifications
Brand Name :
haijing
Model Number :
HJ
Certification :
CE
Place of Origin :
RUIAN
MOQ :
1 set
Price :
5
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
9999 PCS per minute
Delivery Time :
15
Packaging Details :
wooden case
Material :
Paper
Weight :
3000kg
Machine type :
Bag Forming Machine
Voltage :
220V/380V
Condition :
New
Dimension(l*w*h) :
3600*1500*1950mm
Description

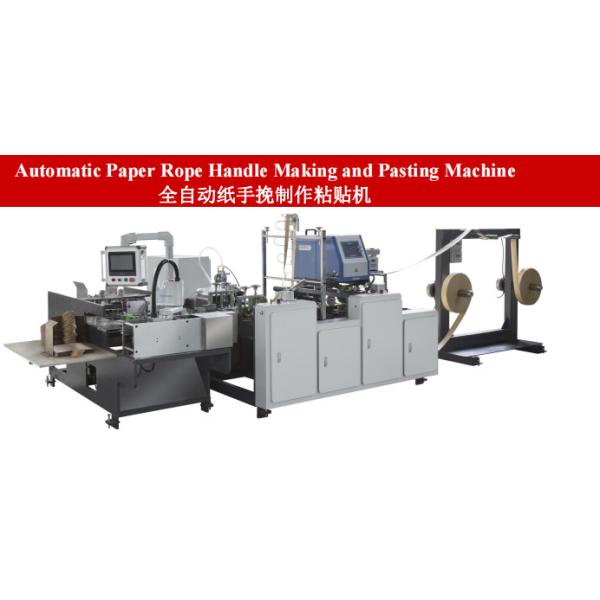

Automatic Paper Rope Handle Making and Pasting Machine
Introduction:
This machine designed to work with our paper bag machine, can produce paper rope handles and then stick the
handles to paper bags to make paper bag with handle in line. This machine takes two narrow paper rolls and one
paper rope roll as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form
paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly
improve the efficiency of subsequent processing operations of users
Features:
1.
The use of mechanical arms to transfer the handle saves labor
and reduces labor costs.
2.
Convenient operation and stable quality
Type
HJ-W
Handle Spacing (W)
76 mm
95 mm
Paper Board Length(L)
152 mm
190 mm
Paper Board Width(h)
30-40mm
Rope Diameter(D)
3-5 mm
Rope Height(H)
100 mm
Bag Width
250-400 mm
Bag Length
250-450 mm
Top opening size
Over 130mm
Max.Speed
40 pcs/min
Paper Thickness
100-150 gsm
Paper Roll Width
60-80 mm
Max.Roll diameter
1000 mm
Reel inner diameter
76 mm
Total Power
10 Kw
Weight of Machine
3500 kg
Overall Dimension(LxWxH)
6000×1600×1500 mm
