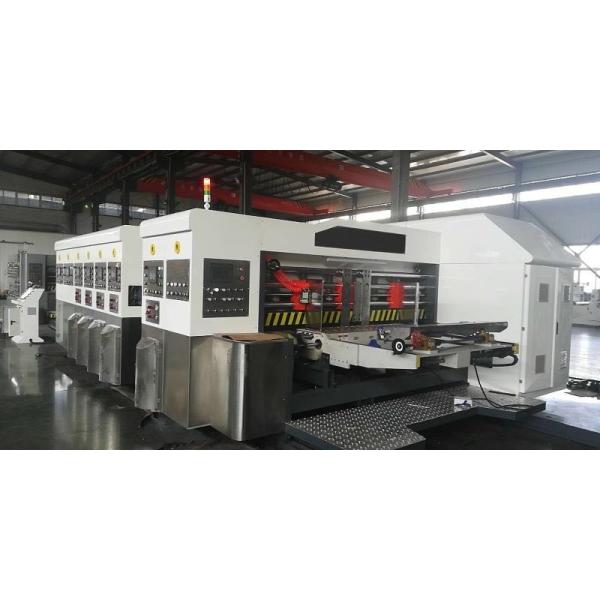

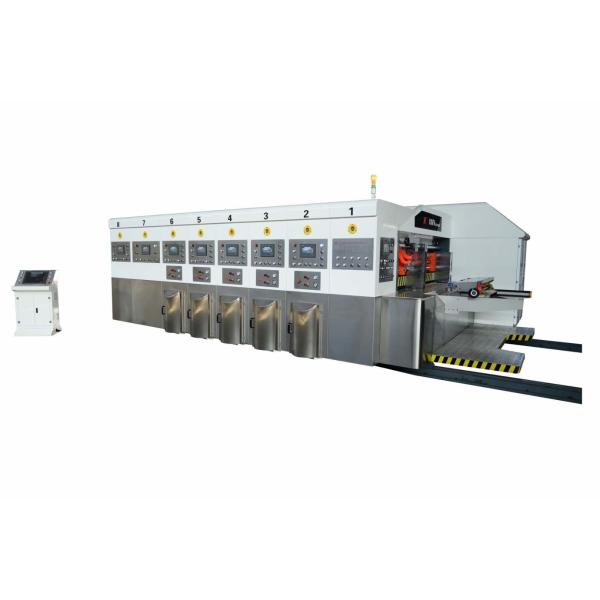

30kw Carton 2 3 4 Color Printing Slotting Die Cutting Machine
30kw Carton 2 3 4 Color Printing Slotting Die Cutting Machine
30kw Carton 2 3 4 Color Printing Slotting Die Cutting Machine
30kw Carton 2 3 4 Color Printing Slotting Die Cutting Machine
Specifications
Brand Name :
xinglong
Model Number :
1224
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
D/P, T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
30 days
Packaging Details :
film
type :
high definition
automatic grade :
automatic
feeding way :
no pressure lead edge
colors :
1-6
Description

High Definition Vacuum Transfer Carton 2 3 4 Color Printing Slotting Die Cutting Machine

Main Technology parameters

Model

 FAYZ922

Machine inside width (mm)

 2400

Max feeding paper siz(mm)

 900*2200

Max effective printing size(mm)

 900*2000

Min coverage size(mm)

 400*500mm

Min slotting space(mm)

 190*50*190*50

Design speed

 220pcs/min

Working speed

 180-200pcs/min

Standard Thickness of printing plate

 6mm

Printing precision

 ±0.5mm

Thickness of cardboard

 1.2-9mm

Wall thickness

 50mm

Main motor power

 About 30kw

Performance and Characteristics:

The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, gluingMachine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.Motorized digital phase adjustment with “automatic zero return” and “memories” function PLC control with touch screen

Lead edge feeder with vacuum sucntion, easy operate, high precision.

All units move automatic orderly, locked by pneumatic, alarm continually

All unit vacuum transfer

high definition printing quality
