Cassette Type Carton Making Machine Single Facer Machine Paper Fast Change Corrugated Roller
Cassette Type Carton Making Machine Single Facer Machine Paper Fast Change Corrugated Roller
Cassette Type Carton Making Machine Single Facer Machine Paper Fast Change Corrugated Roller
Cassette Type Carton Making Machine Single Facer Machine Paper Fast Change Corrugated Roller
Specifications
Brand Name :
Xinglong
Model Number :
W320D-1800
Certification :
CE
Place of Origin :
Hebei China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 set/year
Delivery Time :
25~35 days
Packaging Details :
no package by FCL, wooden pallets and wooden case by LCL
After-sales Service Provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Operation side :
left or right (depends on customer’s factory)
Design speed :
150m/min
Working speed :
120m/min
Temperature control :
160-200℃
Voltage :
380V 50HZ 3Ph or customized
Air pressure :
0.4-0.9Mpa
Dimension(L*W*H) :
6000*2000*2000mm
Flute type :
UV or UVV
Description

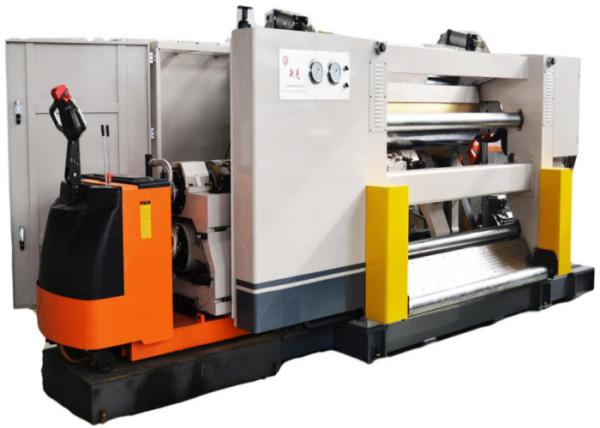

Cassette Type Single Facer Machine Paper Fast Change Corrugated Roller ​

Structure and Features:

1. Quick change rolls in 15mins, while replacing the corrugated rolls, the whole complete set of

additional rolls with cassette is delivered into the machine by the carriage and matched the hydraulic

motor to be fixed on the base of the machine by hydraulic system. Quickly and easily complete the

corrugated roller replacement.

2. Corrugated roller are made of 48CrMo high quality alloy steel.

3. The corrugating rolls, pressure roll and glue roll are adopted with high stability of the airbag control

system, also with pneumatic control buffer effect.

4. Adopt glue width motorized dividing to match the paper width. Idle running motor for glue applicator

roll to avoid glue dry. Adjustment for gap between glue roll and doctor roll.

5. The moveable type glue unit is convenient to clean and maintain.

6. Easy operation control system. Touchscreen with colorful drawing display operation state, easy and

simple to handle.

7. Bulit-in pre-conditioner with production spraying device for the medium moisture and temperature

adjustment.

8. Bearing for corrugated rollers, and pressure roller adopt high-temperature lubricate grease to keep

running smoothly and durably.

Technical parameters:
1. Working width 1800mm
2. Operation side Left or right (depends on customer’s factory)
3. Design speed 150m/min
4. Working speed 120m/min
5. Temperature control 160—200℃
6. Air pressure 0.4—0.9Mpa
7. Flute type UV or UVV
Roller diameter parameters:
1. Corrugated roller 320mm
2. Pressure roller 324mm
3. Gluing rolle 242mm
4. Pre-heater rolle 402mm
Motor parameters:
Main motor (frequency)

15KW
Blower motor 11KW

Cassette Type Carton Making Machine Single Facer Machine Paper Fast Change Corrugated Roller
