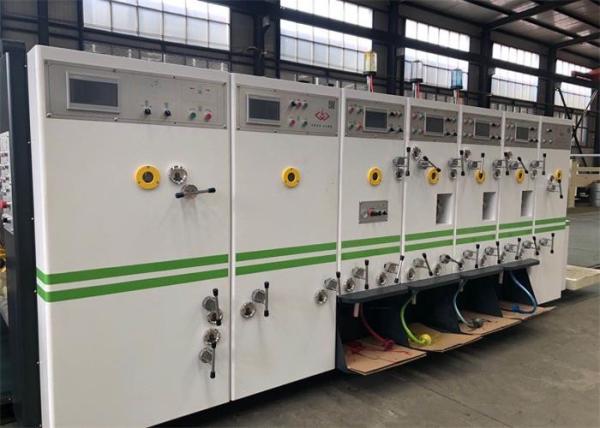

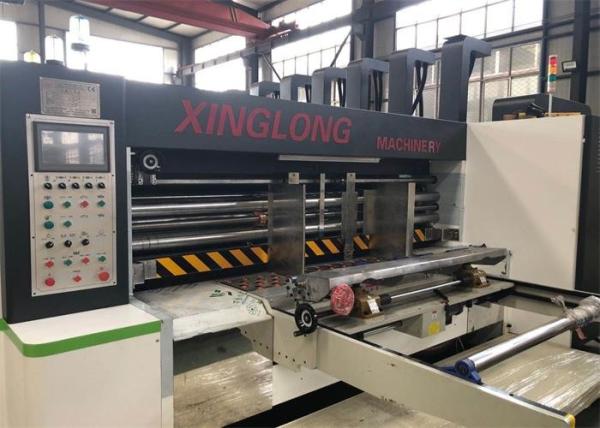

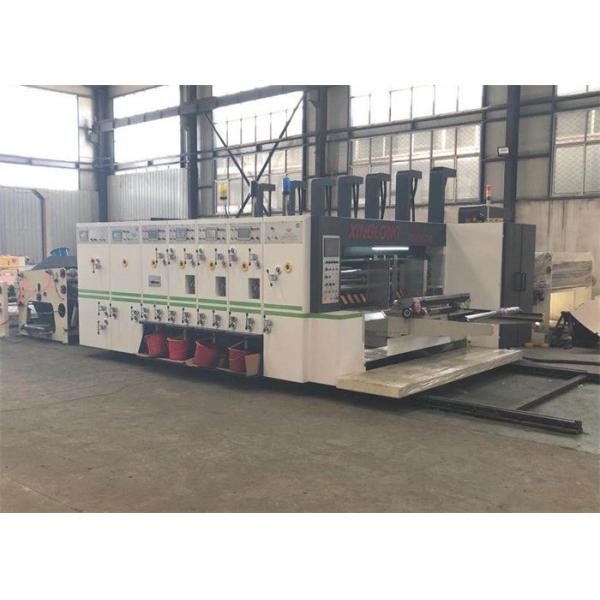

Computer Controlled Flexo Printer Slotter For Corrugated Carton Boxes Durable
Computer Controlled Flexo Printer Slotter For Corrugated Carton Boxes Durable
Computer Controlled Flexo Printer Slotter For Corrugated Carton Boxes Durable
Computer Controlled Flexo Printer Slotter For Corrugated Carton Boxes Durable
Computer Controlled Flexo Printer Slotter For Corrugated Carton Boxes Durable
Computer Controlled Flexo Printer Slotter For Corrugated Carton Boxes Durable
Specifications
Brand Name :
xinglong
Model Number :
FAYKM1428
Certification :
CE
Place of Origin :
hebei
MOQ :
1set
Price :
Negotation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5sets/month
Delivery Time :
15-50days
Packaging Details :
PE fimlm
feeding way :
lead edge
control system :
computer
design speed :
180 pcs/min
working speed :
150 pcs/min
voltage :
380/415/440V
lead time :
20-30days
Thickness of cardboard :
1.2-9mm
wall thickness :
50mm
Description

Cardboard Flexo Printer Slotter Machine For Corrugated Carton BoxesFunction and characteristic

The whole machine is adopted international famous brand appliances and computer software,the quality is stable and reliable .Man-machine interface, Multi-point touch screen control ,computer order management, easy to operate.Replace the order faster(can be stored 999 orders in advance)There is lack of ink alarm device and the real-time monitoring for the ink working condition system .

Optional: ceramic anilox roller, doctor blade and set ink system, stacking machine.

project
920
1224
1426
1628
max
speed(pcs/min)
300
250
180
160
min sheet size(mm)
300*600
420*600
450*600
450*600
max sheet size(mm)
860*2100
1150*2500
1350*2700
1500*2900
skip sheet size(mm)
1200*2100
1500*2500
1800*2700
2000*2900
max printing area(mm)
900*2000
1200*2400
1400*2600
1600*2800
plate thickness(mm)
7.2
7.2
7.2
7.2
Minimum slot distance
positive knife(mm)
negative knife(mm)
130*130*130*130
230*65*230*65
140*140*140*140
230*70*230*70
150*150*150*150
240*75*240*75
max slot depth(mm)
230
300
360
400
increase the blade,increase the slot depth

Feeding unit

  • Light type Lead edge feeder with vacuum suction, wind is adjustable depend on sheet, make sure feed sheet smoothly.
  • Main motor with start protecting device, machine cannot run when machine units aren’t lock.
  • Continuous or skip feeding available
  • Double feed rollers wrapped with rubber, with groove prevent overpressure, reduce pressed sheet
  • Left-right baffle adjusted by computer with automatic flap, back baffle adjusted by motorized, front baffle manual synchronous adjust.
  • Dust clearance bush and fan to clean dust on board. Air outlet can be adjusted as per sheet size
  • Machine units move by motorized and move with alarm belling to make sure safety.

printing unit

  • Fast change printing plate, with footstep to control cylinder rotate clockwise or anticlockwise
  • Feed roller, press roller, rubber roller, anilox roller gap adjust with self-lock part
  • Printing phase adjusted by PLC in 360degree with digital input, do when machine running or stop
  • Pneumatic brake device to keep printing register fixed, when units separate or clean, brake limit gear rotate, keep original gear position.
  • Pneumatic lift anilox roller for ink, motorized ink will no dry.
  • Printing cylinder made of seamless steel pipe, be grinded with chrome plated, do balance treatment, running smooth and steady.
  • Lift-down design( when feed sheets anilox roller down in order, stop sheet lift rollers in order)
  • Double diagram pump ink, recycle automatically, clean with water
  • Memory function, after clean plate it back to original position
  • Printing precision: +-0.5mm
  • Printing cylinder horizontal move by motorized
  • Steel anilox roller from Haili brand (option: ceramic roller with doctor blade)

slotting unit

  • Box height adjusted by motorized.
  • Slotting phase adjusted by PLC in 360 degree with digital input, do when machine running or stop.
  • Slotting die and crease die move together by motorized
  • Crease gap and knife gap adjusted by self-lock mechanism
  • Collison protection on slotting knife for height adjust and move, don’t damage machine
  • Collison protection for slotting die horizontal move (electronical)
  • Slotting knife width 7mm, good quality material, with hot-treatment and grinded, teeth knife, double-piece trim knife, sharpen and precision.

Main Technology parameters

Model FAYKM1428
Machine inside width (mm) 3000
Max feeding paper size(mm) 1400*2800
Max effective printing size(mm) 1400*2600
Min coverage size(mm) 400*700mm
Min slotting space(mm) 250*80*250*80
Design speed(pcs/min) 180pcs/min
Working speed(pcs/min) 150pcs/min
Standard Thickness of printing plate 6mm
Printing precision ±0.75mm
Thickness of cardboard 1.2-9mm
Wall thickness 50mm
Main motor power About 18kw
