Corrugated Cardboard Box Semi-Auto Folder Gluer Machine
Corrugated Cardboard Box Semi-Auto Folder Gluer Machine
Corrugated Cardboard Box Semi-Auto Folder Gluer Machine
Corrugated Cardboard Box Semi-Auto Folder Gluer Machine
Specifications
Brand Name :
Xinglong
Model Number :
ZXJ-2600
Certification :
CE
Place of Origin :
Hebei China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 set/year
Delivery Time :
20days
Packaging Details :
No package by FCL, wooden pallets and wooden case by LCL
After-sales Service Provided :
Engineers available to service machinery overseas
Warranty :
12 months
Motor power :
4kw
Dimension(mm) length×width×height :
4000×2000×1900
Max size( length+ width) :
2460mm
HS Code :
8441309000
Color :
Customized
Speed :
0-60 pcs /min
Description

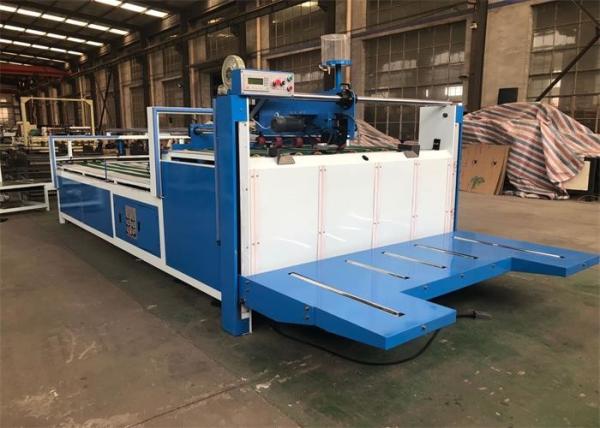

Corrugated Cardboard Box Semi-Auto Folder Gluer Machine

This machine is the last process equipment of the carton folding, it is used to combination of 3 and 5 layer corrugated cardboard production line( if need to glue 7 layer cardboard, we also can produce according customers' appointed). Efficiency and production is attractive. The prominent advantage is low cost , strong adhesion, simple operating, saving labor and electric, runs smoothly, it is idea equipment for exporting advanced carton.

Features and characteristics

1. Working table

Photoelectric control the feeding, reduce labor and improve work efficiency.

2. Press correction

After gluing and the second pressing to the bonder is smooth and firm.

Equipped automatic correction device to make the carton size is correctly, and effectively avoid knife and fork phenomenon

Counting output devices and with the photoelectric correlated mechanism, When reaching to the const carton, it outputs automatically.

3. Horizontal Output

Press counting output signal, then work automatically, stacking and strapping conviently.

4. Main spare parts

Gear reducer is known brand from China

Electricity components from "Chint"

Conveyor belt is made in XINBEXPLC from Delta.

The whold gluing head usd of imported material with finish process, wear-resisting, correction resisting, easy to clean.

Main technology parameter

Max size( length+ width) 2460
Min size( length+ width) 340
Max size(width+ height) 1515
Min size( width+ height) 240
Height of feeding paper 900
Motor power 4
The length of Machine 4500
The width of Machine 2100
The weight of Machine 2000
Machine speed 40
Dimension(mm) length×width×height 4000×2000×1900
