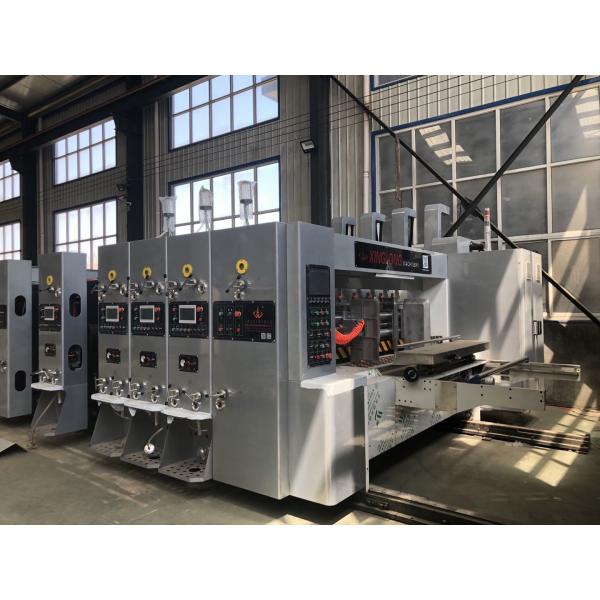

Carton Printer Die Cutter Slotter Machine With Ceramic Anilox Roller Doctor Blade
Carton Printer Die Cutter Slotter Machine With Ceramic Anilox Roller Doctor Blade
Carton Printer Die Cutter Slotter Machine With Ceramic Anilox Roller Doctor Blade
Carton Printer Die Cutter Slotter Machine With Ceramic Anilox Roller Doctor Blade
Specifications
Brand Name :
xinglong
Model Number :
FAY1426
Certification :
CE
Place of Origin :
hebei
MOQ :
1set
Price :
USD36800-66000/set
Payment Terms :
T/T, L/C, D/P
Supply Ability :
7 sets/month
Delivery Time :
15-50days
Packaging Details :
PE film
model :
FAY1426
feeding way :
light pressure type lead edge
control system :
computer
design speed :
180 pcs/min
working speed :
160 pcs/min
certificate :
CE
lead time :
30 days
weight :
30 T
Main power :
about 18KW
wall thickness :
50mm
Description

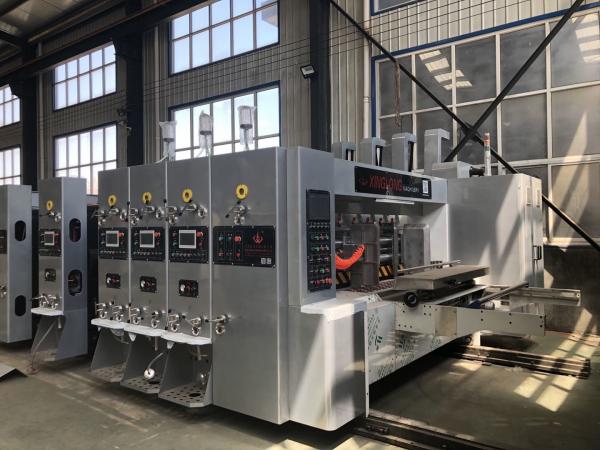

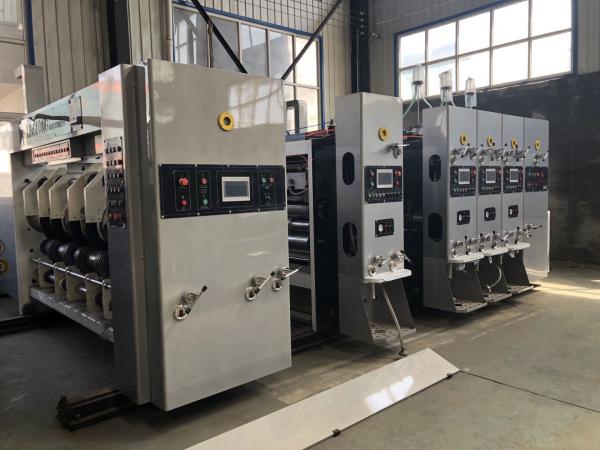

Carton printer die cutter slotter machine with ceramic anilox roller doctor blade

Carton Printer Die Cutter Slotter Machine With Ceramic Anilox Roller Doctor Blade

Carton Printer Die Cutter Slotter Machine With Ceramic Anilox Roller Doctor Blade

Performance and Characteristics:

The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.

Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .

All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.

Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.

The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.

Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen)

Lead edge feeder with vacuum sucntion, easy operate, high precision.

All units move automatic orderly, locked by pneumatic, alarm continually

Main motor is VFD, working stability, low power consumption.

with ceramic anilox roller,doctor blade ,high printing quality.

Main Technology parameters

Model YJ250-1022 YJ220-1224 YJ200-1426
Machine inside width (mm) 2400 2600 2800
Max feeding paper siz(mm) 1000*2200mm 1200mm*2400mm 1400*2600mm
Max effective printing size(mm) 1000*2000mm 1200mm*2200mm 1400*2400mm
Min coverage size(mm) 350*700mm 350mm*700mm 350mm*700mm
Design speed (pcs/min) 250pcs/min 220pcs/min 200pcs/min
Working speed (pcs/min) 230pcs/min 200pcs/min 180pcs/min
Standard Thickness of printing plate 6mm 6mm 6mm
Printing precision ±0.5mm ±0.5mm ±0.5mm
Thickness of cardboard 1.2-9mm 1.2-9mm 1.2-9mm
Wall thickness 50mm 50mm 50mm
Main motor power About :18kw About :18kw About :18kw
