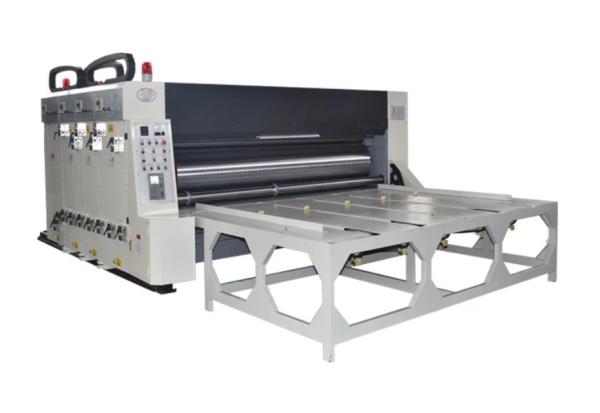

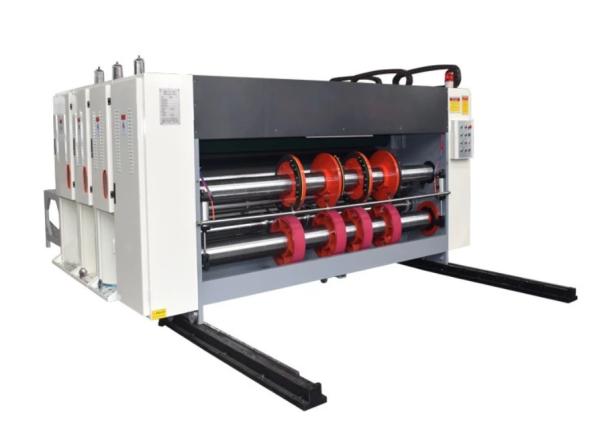

Carton Printing Slotting Die Cutting Machine Semi Auto Chain Feeding Optional Color
Carton Printing Slotting Die Cutting Machine Semi Auto Chain Feeding Optional Color
Carton Printing Slotting Die Cutting Machine Semi Auto Chain Feeding Optional Color
Carton Printing Slotting Die Cutting Machine Semi Auto Chain Feeding Optional Color
Specifications
Brand Name :
xinglong
Model Number :
SYKM1224
Certification :
CE
Place of Origin :
Hebei
MOQ :
1 set
Price :
USD6600-32600
Supply Ability :
12 sets/month
Delivery Time :
7-30days
Packaging Details :
PE film
name :
semi auto carton printer machine
model :
SYKM1424
function :
making carton box
feeding way :
chain feeding
type :
semi auto
thickness of cardboard :
1.5-10mm
speed :
0-60pcs/min
certificate :
CE
After-sales service provided :
Engineers available to service machinery overseas,Video technical support
Colors :
customer request
Description

semi auto chain feeding multi color printing slotting die cutting machine for carton

Function and characteristic:


1. This machine adopts chain feeding type,bilateral side lay positioning,to ensure that feed paper accurately.

2. Each unit uses electric to separate and combine,pneumatic locking, pneumatic lift plate, automatic ink distributing,pneumatic brake fission positioning.

3. Print and slotting adopts structure of planetary gear type,electric 3600 adjustment,digital display.

4. The lubrication way uses double oil pump,automatic spray,circulating oil supply,keep the balance of the oil level,greatly improve the operation precision and the service life.

5. The machine gear uses 45# steel,helical gear design,shaving uses high frequency quenching.

6. The machine transmission uses cross slide block structure,adopts free key connection,remove the link clearance,operate smoothly.

7. The shaft and roller of the machine are all grinding processing,hard chromium plating.

8. The machine electrical adopts the international famous brand,such as Siemens,Schneider.


9. The machine bearing,adopts one of three domestic famous brands:"Hawa los'".

10. The slotting unit adopt electric digital 3600 adjustment,stop and start can be adjusted.

11. Box height manually adjust,four knife synchronization.

12. The length and width adjustment, the knife and the line pressing on the top and the bottom,the paper cutter and the paper pressure rod,gauge pointers can be manually linkage shift,save the time of order transformation.


13. The machine is pneumatic combined control,has the function of counting,alarm,operation at the back of the machine.


14. The hanging plate is optional,anilox roller mesh can option 180-250 mesh.

Model
Max.paper
feeding size
Effective
printing
size
The thicknes of
The plate
Slotting width*Max.slotting depth
work speed
Min.paper feeding size
Roller
diameter
YSK-B2400
2300*1250mm
2100*1250mm
4-7mm
7*300mm
60
350*600mm
405
YSK-A2000
1900*1900mm
1700*1990mm
4-7mm
7*220mm
80
300*600mm
300
YSK-A2200
2100*1900mm
1900*1900mm
4-7mm
7*220mm
80
300*600mm
300
YSK-B2600
2500*1250mm
2300*1250mm
4-7mm
7*300mm
60
350*600mm
405
YSK-C2600
2500*1470mm
2300*1470mm
4-7mm
7*350mm
60
400*600mm
480
YSK-C2800
2700*1470mm
2500*1470mm
4-7mm
7*350mm
60
400*600mm
480
YSK-D2800
2700*1600mm
2500*1600mm
4-7mm
7*400mm
60
400*600mm
530
YSK-D3000
2700*1600
2700*1600mm
4-7mm
7*400mm
60
400*600mm
530
YSK-D3000
2900*1800mm
2700*1800mm
4-7mm
7*450mm
60
450*600mm
530
YSK-D3300
3200*1800mm
3000*1800mm
4-7mm
7*450mm
60
450*600mm
530
