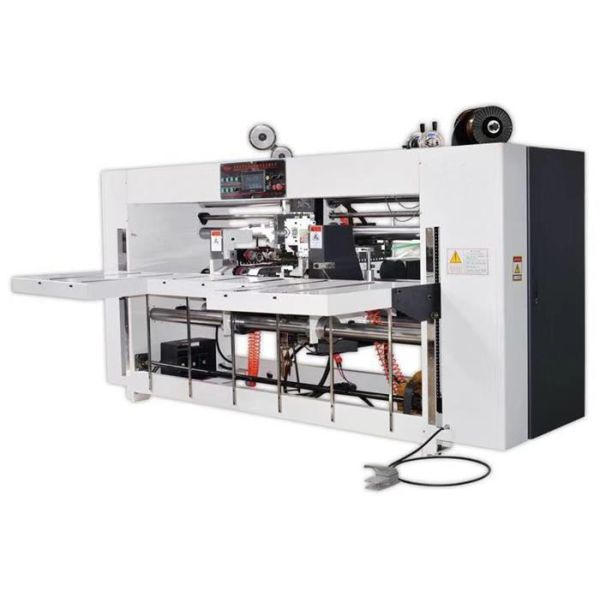

Semi Automatic Box Stitching Machine 450 Nail / Min Easy Maintenance Durable
Semi Automatic Box Stitching Machine 450 Nail / Min Easy Maintenance Durable
Semi Automatic Box Stitching Machine 450 Nail / Min Easy Maintenance Durable
Semi Automatic Box Stitching Machine 450 Nail / Min Easy Maintenance Durable
Specifications
Brand Name :
XINGLONG
Model Number :
XLS-2400
Certification :
CE
Place of Origin :
Hebei China
MOQ :
1 set
Price :
negotiate
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5 set/month
Delivery Time :
30 days
Packaging Details :
plastic or wooden
Name :
double servo semi-auto stitching machine
After-sales Service :
Engineer available service machinery overseas
Speed :
450nail/min
Nail Span :
30-100mm or optional
Number of nail :
1-99
Nail type :
Single, double and reinforced nail
nail line specification :
2.0mm×(0.65-0.75mm)
Weight :
2000KGS
Warranty :
1 Year
certificate :
CE
lead time :
15-30 days
Power :
22KW
Description
Semi-Automatic Automatic Corrugated Cardboard Carton Box Stitching Machine
Product Description
Model and Configurations SDJ-2000 SDJ-2400 SDJ-2700 SDJ-3000
Maximum size (A+B) x2 (mm) 4000 4800 5400 6000
Minimum size (A+B) x2(mm) 1060 1060 1060 1060
Maximum length A(mm) 2850 2850 2850 2850
Minimum length A(mm) 350 350 350 350
Maximum width B(mm) 1000 1200 1500 1800
Minimum width B(mm) 180 180 180 180
Maximum size( C+D+C)(mm) 2500 2500 2500 2500
Minimum height ( C+D+C )(mm) 400 400 400 400
Maximum cover C(mm) 560 560 560 560
Minimum cover C(mm) 50 50 50 50
Maximum height D(mm) 2000 2000 2000 2000
Minimum height D(mm) 150 150 150 150
Maximum width of nail tongue(mm) 45 45 45 45
Nails distance(mm) 30-150 30-150 30-150 30-150
Order number (pcs) 1-99 1-99 1-99 1-99
Mechanical speed (nail / min) 500 500 500 500
Total weight (ton) 2.5 3.0 3.5 4.0

Double servo semi-auto stitching machine is latest improved product base on normal semi-auto stitching machine. The whole drive and running part adopt two pieces servo motor to drive machine running. The feeding part, stitching head and back baffle also adopt servo motor. When adjust back baffle through touch screen to operate, accurate, fast and convenient, needn’t worker take rule to adjusting. Improve the disadvantage of normal stitching machine used gear and bear to drive machine running, reduce the machine failure, prolong the machine use life. The stitching machine is the idea equipment in carton factory.

Features:

  • Adopts Japanese servo mechanism and Taiwan touch screen
  • Rubber wheel be adjusted by motorized, easy to adjust, more personal.
  • Single/, double// and strengthen nail // / / // are available, be finished one time, it can meet different requirements of different clients.
  • It can change size only one minute, fast, needn’t experience.
  • Feeding part automatically counting, sending and bundling.
  • Human-machine operation panel, easy to operate, display the trouble locate and easy for maintenance.
  • Automatic alarm when nail is over. (to avoid nail sick or less nail).
  • With automatic counting function, the finished products can be conveyed to the end of delivery part depend on set quantity (1-99), easy for bundling.
  • Only need two operators from semi-produce making to final products assortment consequently reducing cost of human resources and easy to operate.
