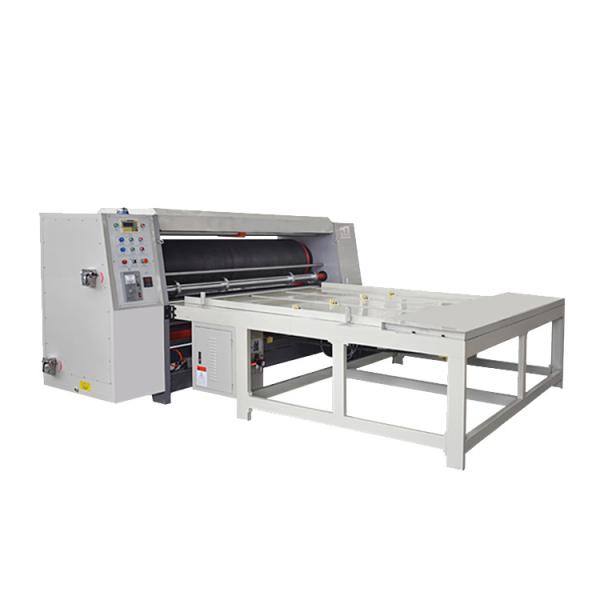

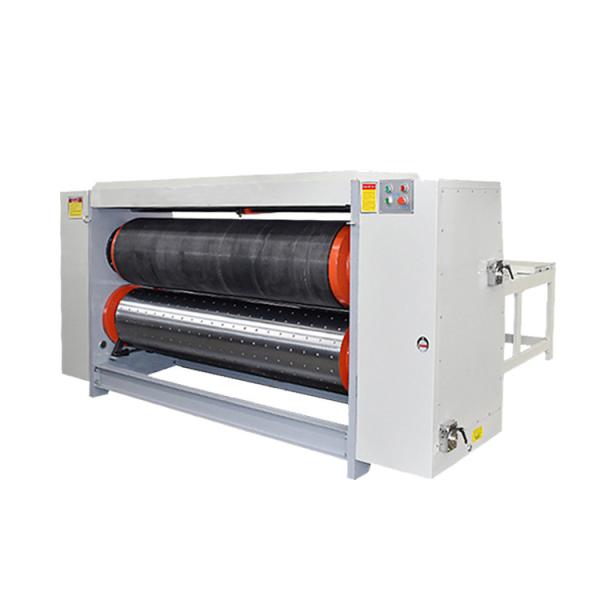

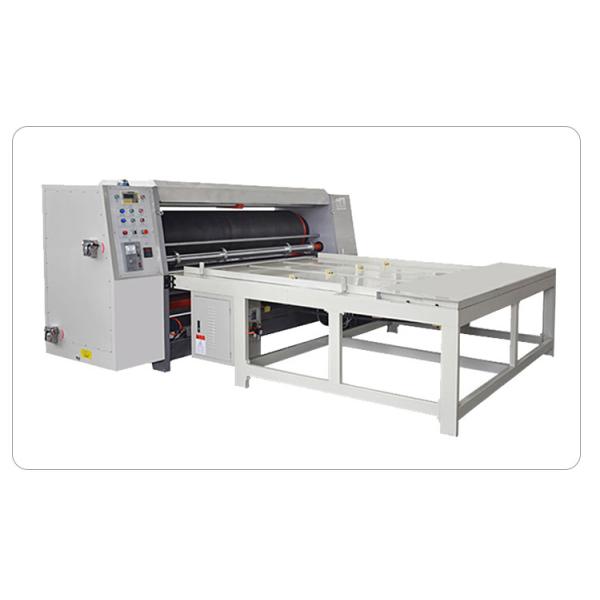

Chain Feeding Industrial Die Cutting Machine Semi Auto Rotary With Slotter Knife
Chain Feeding Industrial Die Cutting Machine Semi Auto Rotary With Slotter Knife
Chain Feeding Industrial Die Cutting Machine Semi Auto Rotary With Slotter Knife
Chain Feeding Industrial Die Cutting Machine Semi Auto Rotary With Slotter Knife
Specifications
Brand Name :
xinglong
Model Number :
SM1424
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD9000-14000 per set
Payment Terms :
T/T, D/P, L/C, Western Union
Supply Ability :
6sets/month
Delivery Time :
10-20days
Packaging Details :
plastic film
name :
chain feeding semi automatic rotary die cutting carton machine with slotter knife
feeding way :
chian feeding
model :
SMQ1424
speed :
0-60pcs/min
type :
semi-automatic
Condition :
New
Warranty :
12 Months
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support
Voltage :
3 Phase 380v
Weight :
4000kg
Computerized :
No
Power(w) :
5.5KW
Color :
As your order
Function :
carton forming machine
Machine type :
Die cutting machine
Description

chain feeding semi automatic rotary die cutting carton machine with slotter knife

Model MQ-295*2000 MQ-340*2200 MQ-405*2400 MQ-480*2600
Max feeding size 850*1750mm 1000*1950 1200*2150 1400*2350
Max die-cutting size 850*1750mm 1000*1950 1200*2150 1400*2350
Speed 0-60pcs/min 0-60pcs/min 0-60pcs/min 0-60pcs/min
Power 4kw 4kw 5.5kw 5.5kw

Function and uses:

The machine adopts chain feeding system and double roller rotary type. It can perform all process of slitting, creasing, corner cutting and hit special hole at one time. It has advantage of high precision, easy to operate, long service life and low cost.

Main characteristics:

l Automatic compensation device for linear speed of rubber cushion roller to prolong the service life of superior adhesive.

l Automatic lateral movement of cushion roller 40 mm from left to right, prolonging the service life of superior rubber.

l When the rubber pad is used unevenness, can open the function of the rubber roller, prolong the service life of the rubber pad.

l Adopt high-quality Germany Depair rubber pad.

l The roller is made of cast steel, with a wall thickness of 45mm.

l Pneumatic manual or automatic control of die cutting roll, die cutting roll to lift cutting paper, stop the paper feed to fall to avoid damage to the rubber pad.

l Electrically adjusted phase die-cutting position

l The transmission gear is automatically sprayed and lubricated, and the service life of the gear is prolonged.

l with slotting blade when make RS4 cartons no need to make a wooden die.easy to operate

Chain Feeding Industrial Die Cutting Machine Semi Auto Rotary With Slotter KnifeChain Feeding Industrial Die Cutting Machine Semi Auto Rotary With Slotter Knife
