Belt Feeder Slitter Scorer Machine , Slitter Scorer Corrugated Easy Installation
Belt Feeder Slitter Scorer Machine , Slitter Scorer Corrugated Easy Installation
Belt Feeder Slitter Scorer Machine , Slitter Scorer Corrugated Easy Installation
Belt Feeder Slitter Scorer Machine , Slitter Scorer Corrugated Easy Installation
Belt Feeder Slitter Scorer Machine , Slitter Scorer Corrugated Easy Installation
Belt Feeder Slitter Scorer Machine , Slitter Scorer Corrugated Easy Installation
Belt Feeder Slitter Scorer Machine , Slitter Scorer Corrugated Easy Installation
Belt Feeder Slitter Scorer Machine , Slitter Scorer Corrugated Easy Installation
Specifications
Brand Name :
Xinglong
Model Number :
XL
Certification :
CE certificate
Place of Origin :
Hebei China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability :
100 set/year
Delivery Time :
25~35days
Packaging Details :
no package by FCL, wooden pallets and wooden case by LCL
After-sales Service Provided :
Engineers available to service machinery overseas
Warranty :
12 months
Max. Feeder size :
2400mm
Min .width of slitting :
125mm
Min .length of slitting :
350mm
Min . distance of creasing :
40mm
Description

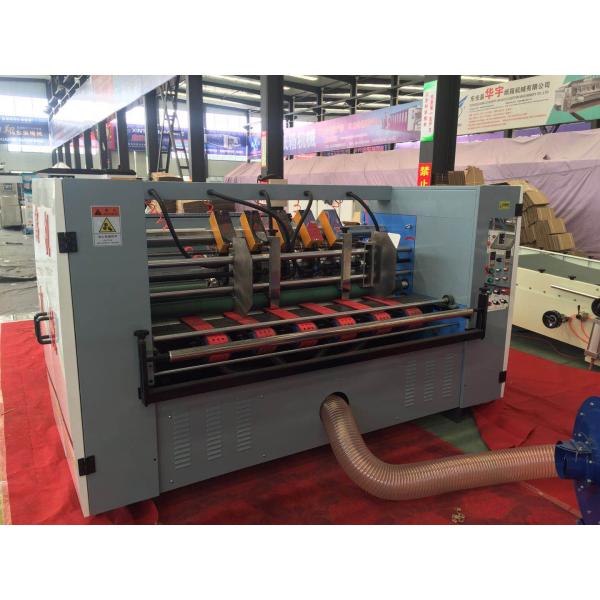

Belt Feeder Slitter Scorer Machine

Main Features

1. Can set the qty. of paperboard, automatic stop the feeding after finishing.
2. Auto suction paper feeding, assured the safety of workers and decreased the working load.
3. Suitable to a large scale paperboard machining.
4. Three types of blade adjusted methods by manual / electric /automatic for optional .
5. Slitting part: adopt high quality tungsten steel blade, sharp and long work life, slice more tidy, non-pressing and non-burr.
6. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard to 260mm for small paper.
7. 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.
8. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
9. Grinding part: adopt automatic and manual two kinds pneumatic grinding type for option, it could be grinding when working, improved work efficiency.

  1. Main configuration:

1. Can set the qty. of paperboard,automatic stop the feeding after finishing.

2. Auto belt feeding,assured the safety of workers and decreased the working load.

3. Suitable to a large scale paperboard maching.

4. Adopt high quality tungsten steel blade,sharp and long work-life,slice more tidy,non-pressing and non-burr.

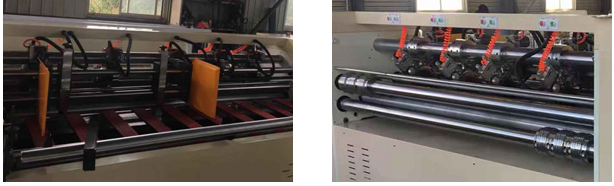

Auto paper feeder: Electric adjust blade:

Belt Feeder Slitter Scorer Machine , Slitter Scorer Corrugated Easy Installation

技术参数:Technical parameters:

Model 2500mm 2200mm 2000mm
Max. Feeder size 2400mm 2100mm 1900mm
Min .width of slitting 125mm 125mm 125mm
Min .length of slitting 350mm 350mm 350mm
Min . distance of creasing 40mm 40mm 40mm
Qty for Slitting knife 4 group 4 group 4 group
Qty for creasing wheel 6 group 6 group 6 group
Max speed About 80m/min About 80m/min About 80m/min
Available paperboard thickness 3-11mm 3-11mm 3-11mm
Power 7.5kw 7.5kw 5.5kw

Belt Feeder Slitter Scorer Machine , Slitter Scorer Corrugated Easy Installation
