Durable Industrial Die Cutting Machine Auto Lead Edge Feeder Thin Blade Slitter Scorer Machine
Durable Industrial Die Cutting Machine Auto Lead Edge Feeder Thin Blade Slitter Scorer Machine
Durable Industrial Die Cutting Machine Auto Lead Edge Feeder Thin Blade Slitter Scorer Machine
Durable Industrial Die Cutting Machine Auto Lead Edge Feeder Thin Blade Slitter Scorer Machine
Durable Industrial Die Cutting Machine Auto Lead Edge Feeder Thin Blade Slitter Scorer Machine
Durable Industrial Die Cutting Machine Auto Lead Edge Feeder Thin Blade Slitter Scorer Machine
Durable Industrial Die Cutting Machine Auto Lead Edge Feeder Thin Blade Slitter Scorer Machine
Durable Industrial Die Cutting Machine Auto Lead Edge Feeder Thin Blade Slitter Scorer Machine
Specifications
Brand Name :
Xinglong
Model Number :
BF series
Certification :
CE certificate
Place of Origin :
Hebei China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 set/year
Delivery Time :
30 days
Packaging Details :
no package by FCL, wooden pallets and wooden case by LCL
After-sales Service Provided :
Engineers available to service machinery overseas
Warranty :
1 year
Wall Inside width（mm） :
2800 2500 2000
Min.slitting width（mm） :
125
Min .slitting length（mm） :
350
Min.creasing size（mm） :
40
Description

Auto Lead Edge Feeder Thin Blade Slitter Scorer Machine

Main configuration:

1. Can set the qty. of paperboard,automatic stop the feeding after finishing.

2. Auto suction feeding,assured the safety of workers and decreased the working load.

3. Suitable to a large scale paperboard maching.

4. Adopt high quality tungsten steel blade,sharp and long work-life,slice more tidy,non-pressing and non-burr.

5. Electric adjusted the space of slitter blade,auto pneumatic locking,easy to operate,improve the efficiency.

6. Scorer electrically adjusted,the above scorer pneumatic lifting,pneumatic locking,fast order changing.The scorer part adopt above & lower button for rectification can make the above and lower scorers align center.

7. Scorer part:adopt 5 points scoring,scoring distance in-phase adjust,blazonry and easy to bend the carton sheet.

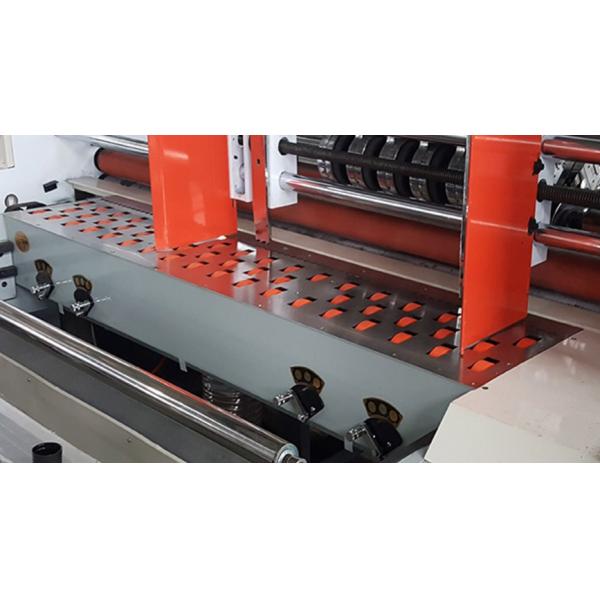

  • Auto paper feeder:

Durable Industrial Die Cutting Machine Auto Lead Edge Feeder Thin Blade Slitter Scorer Machine

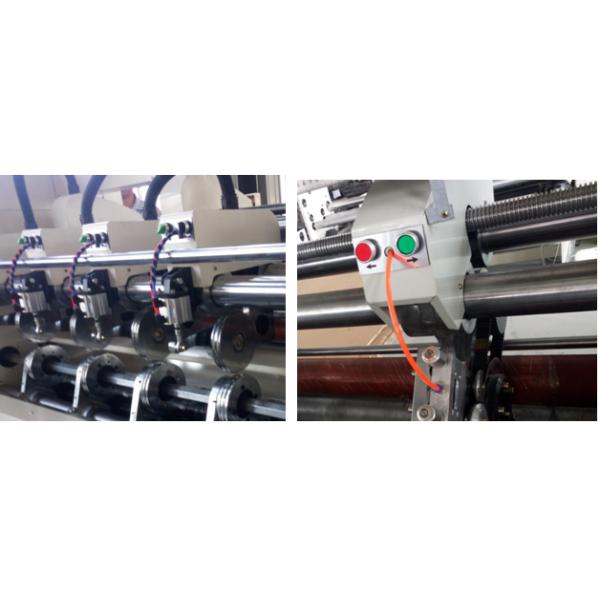

Electric adjust creasers Electric adjust blades

Durable Industrial Die Cutting Machine Auto Lead Edge Feeder Thin Blade Slitter Scorer Machine

Technical parameters:

Model BF2800 BF2500 BF2000
Wall Inside width(mm) 2800 2500 2000
Min.slitting width(mm) 125 125 125
Min .slitting length(mm) 350 350 350
Min.creasing size(mm) 40 45 45
Max.speed(m/min) About 80 About 80 About 80
blades 6 5 4
creasers 10 8 6
Cardboard thickness(mm) 3~11 3-11 3-11
Power (Kw) 7.5 7.5 5.5

Durable Industrial Die Cutting Machine Auto Lead Edge Feeder Thin Blade Slitter Scorer Machine
