Paper Box Making Machine , Automatic Carton Die Cutting Machine 150 Pcs / Min
Paper Box Making Machine , Automatic Carton Die Cutting Machine 150 Pcs / Min
Paper Box Making Machine , Automatic Carton Die Cutting Machine 150 Pcs / Min
Paper Box Making Machine , Automatic Carton Die Cutting Machine 150 Pcs / Min
Specifications
Brand Name :
XINGLONG
Model Number :
XL-MQ
Certification :
CE
Place of Origin :
Hebei
MOQ :
1 set
Price :
Negotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per year
Delivery Time :
20-30 days
Packaging Details :
plastic film
Driven Type :
Electric
Color :
customized
Usage :
Making Carton
Speed :
150pcs/min
Warranty :
1 year
Suitable for :
corrugated carton
Description

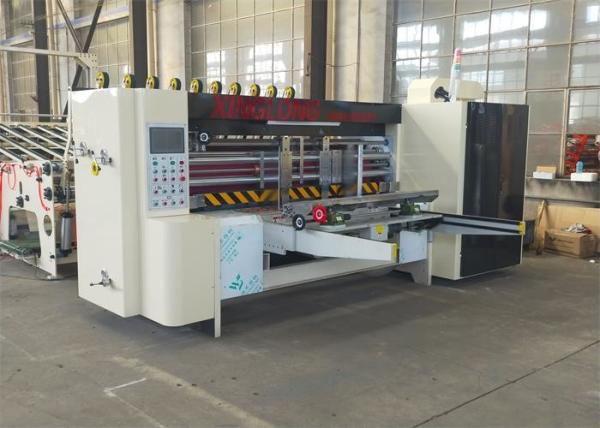

Paper Box Making Machine Automatic Die Cutting Carton

Function and uses:
The machine adopts automatic lead edge feeding system and double roller rotary type. It can perform all process of slitting, creasing, corner cutting and hit special hole at one time. It has advantage of high precision, easy to operate, high speed ,long service life and low cost.
Main characteristics:

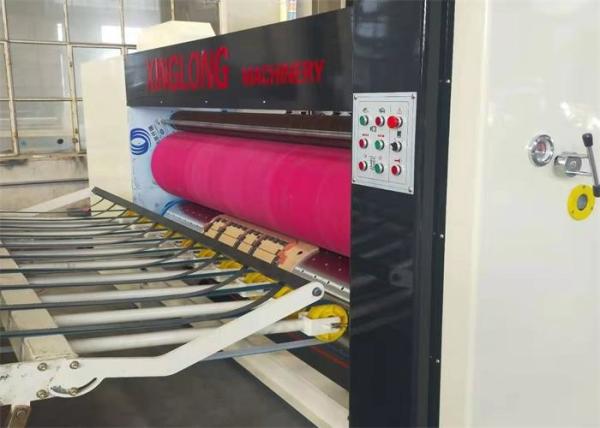

Automatic compensation device for linear speed of rubber cushion roller to prolong the service life of superior adhesive.

The lead edge feeding has the advantages of good stability, fast working speed, low failure rate and high efficiency.

The rubber feeding roller with resorte device, feeding accurately, stably, not destroy paperboard strength if the feeding space is very small.

The left and right side baffles adopt electric control , the back baffles adopt electric adjustment, the front baffle space manual sync adjustment.

Equipped with colors touch screen take 360 degree set to die roller, display product speed and set production quantity.

Automatic lateral movement of cushion roller 40 mm from left to right, prolonging the service life of superior rubber

When the rubber pad is used unevenness, can open the function of the rubber roller, prolong the service life of the rubber pad.

Adopt high-quality Germany Depair rubber pad.

The roller is made of cast steel, with a wall thickness of 45mm,

Pneumatic manual or automatic control of die cutting roll, die cutting roll to lift cutting paper, stop the paper feed to fall to avoid damage to the rubber pad.

Electrically adjusted phase die-cutting position

The transmission gear is automatically sprayed and lubricated, and the service life of the gear is prolonged.
Technical parameter

Model AM-918 AM-1020 AM-1222 AM-1424
Max. Cardboard size 1800×900mm 2000*1000mm 2200*1200mm 2400*1400mm
Min. Cardboard size 350×630mm 350*630 350*630 350*700mm
Total power 5.5kw 5.5kw 7.5kw 7.5kw
Max. speed 140pcs/min 130pcs/min 120pcs/min 100pcs/min
Adoptable thickness of paperboard 2-10mm 2-10mm 2-10mm 2-10mm
