Automatic Rotary Slotter Machine High Speed Corrugated Paperboard RS4 Wall Thickness 40mm

Specifications

Brand Name :

xinglong

Model Number :

RS-1022

Certification :

Place of Origin :

China

MOQ :

1 set

Price :

USD 11200-20000USD

Payment Terms :

T/T, D/P, L/C

Supply Ability :

10 sets per month

Delivery Time :

7-30days

Packaging Details :

plastic film or wooden box

Name :

rotary slotting machine

type :

automatic

model :

1022 1224 1426

certificate :

design speed :

150pcs/min

work speed :

130pcs/min

thickness of cardboard :

1.5-9mm

wall thickness :

40mm

weight :

power :

7.5kw

control system :

PLC

lead time :

20days

Description

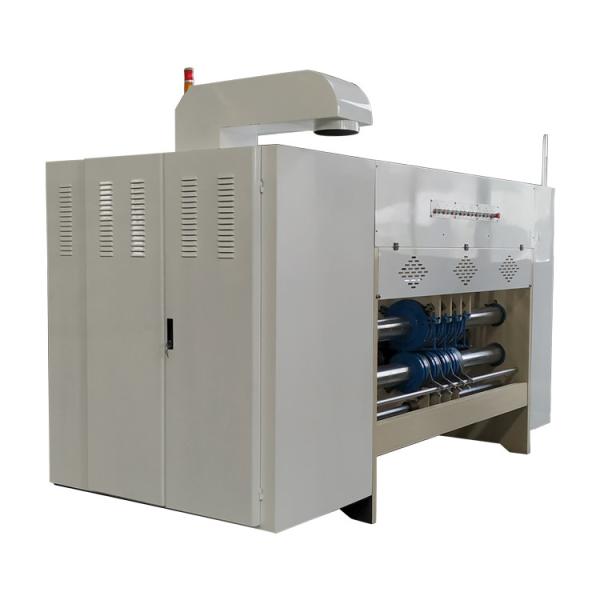

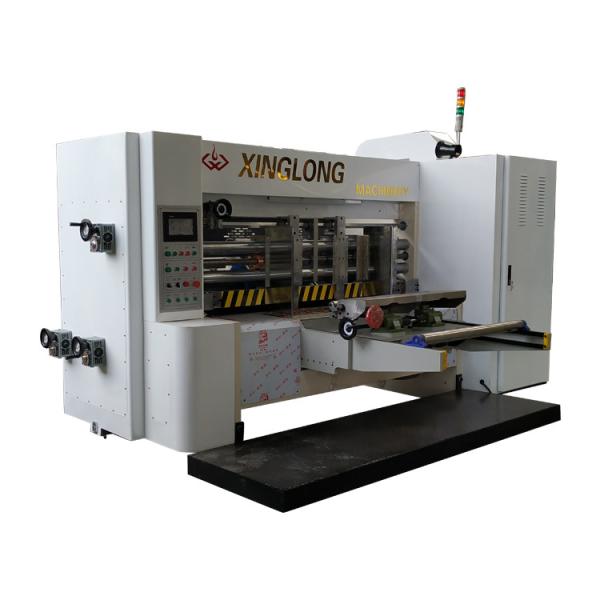

Automatic high speed corrugated paperboard RS4 rotary slotter machine

Function and Characteristics:

1. This machine adopts the vacuum adsorption paper feeding style , can once complete slotting, corner cutting, side cutting, creasing and so on.

2. The power motor adopts frequency conversion motor, running smoothly and saving energy.

3. Electric side baffle, electric rear baffle.

4. The slotted phase is adjusted by the planetary gear structure and is adjusted by the electric digital 360 degree.

5. Spray lubrication, longer service life of gear transmission.

6. The gear transmission adopts no clearance adjustment design to improve the paper feeding accuracy.

7. Photoelectric counter.

8. Electrical synchronous adjustable slotting knife and creasing wheels togther, easy to adjust, save time and labor.

Main Technical parameter:

Model	ARS4-918	ARS4-1020	ARS4-1222	ARS4-1424
Max. Cardboard size	1800×900mm	2000*1000mm	2200*1200mm	2400*1400mm
Min. Cardboard size	350×630mm	350*630	350*630	350*700mm
Total power	5.5kw	5.5kw	7.5kw	7.5kw
Slotting width	7mm	7mm	7mm	7mm
Max. speed	140pcs/min	130pcs/min	120pcs/min	100pcs/min
Adoptable thickness of paperboard	2-10mm	2-10mm	2-10mm	2-10mm
Min.slotting distance(positive knife)	140140140*140	140140140*140	140140140*140	140140140*140
Min.slotting distance(positive knife and negative knife)	28080280*80	28080280*80	28080280*80	Product tags duplex paper board making machine , rotary corrugated box slotting machine , ibr panel roll forming machine Send your message to this supplier Message* Email* Phone or WhatsApp* Name Company Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Send Now Submission successful! Automatic Rotary Slotter Machine High Speed Corrugated Paperboard RS4 Wall Thickness 40mm Ask Latest Price Product Detail Brand Name : xinglong Model Number : RS-1022 Certification : CE Place of Origin : China MOQ : 1 set Price : USD 11200-20000USD Contact Supplier Dongguang Xinglong Packaging Machinery Co., Ltd. Active Member 6 Years hebei, cangzhou Since 2009 Business Type : Manufacturer, Distributor/Wholesaler, Exporter, Trading Company, Seller Main Products : Printing Slotting Die Cutting Machine, Flexo Printer Slotter Die Cutter, Corrugated Cardboard Production Line Total Annual : 2500000-3000000 Employee Number : >100 Certification Level : Active Member Discover similar products Rs4 Corrugated Box Paperboard Rotary Slotter Machine 130pcs/Min Contact Now High Speed Rotary Slotting Rs4 Corrugation Machine Creaseing Corner Cutting Contact Now Semi Automatic Rotary Slotter Machine Corrugated Carton Box Creasing Corner Cut Contact Now Easy Operation Die Cutting And Creasing Machine Adjustable Template Stable Contact Now Corrugated Cardboard Rotary Slotter Machine Slotting Width 7mm Easy Operation Contact Now Corrugated Paperboard 130pcs/Min Rotary Slotter Machine Contact Now Four Link Corner Cutter Rotary Slotting Machine 2.2 Kw 40 Pcs / Min Easy Contact Now Electric Chain Feeder Rotary Slotter Machine Semi Auto For Corrugated Carton Box Contact Now Corrugated Carboard Rotary Slotting Machine Automatic Spray Lubrication Contact Now RS4 Rotary Creaser Slotter Machine , High Speed Corrugated Carton Machine Contact Now View More Find Similar Products By Category: Supplier Homepage Products Rotary Slotter Machine MachineU China Products Machinery Printing Machine Carton Printing Slotting Die-Cutting Machine Contact Supplier Message* Email* Phone or WhatsApp* Name Company Submit Requirement Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Submitted successfully! Your request message has been successfully sent to the supplier. Please keep in touch and they will contact you as soon as possible. OK China Hot Products: A \| B \| C \| D \| E \| F \| G \| H \| I \| J \| K \| L \| M \| N \| O \| P \| Q \| R \| S \| T \| U \| V \| W \| X \| Y \| Z \| 0~9 Copyright © 2009-2025 Machineu.com. All rights reserved. Copyright © 2009-2025 Machineu.com. All rights reserved.
