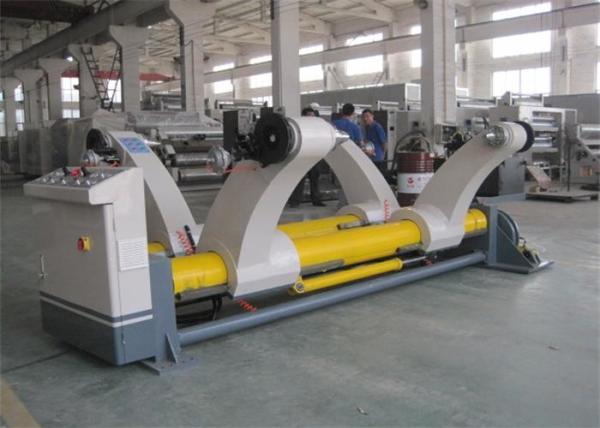

Hydraulic Shaftless Paper Mill Roll Stand for corrugated line
Hydraulic Shaftless Paper Mill Roll Stand for corrugated line
Hydraulic Shaftless Paper Mill Roll Stand for corrugated line
Hydraulic Shaftless Paper Mill Roll Stand for corrugated line
Specifications
Brand Name :
xinglong
Model Number :
1800
Certification :
CE
Place of Origin :
Hebei
MOQ :
1set
Price :
Negotiate
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
8sets/month
Delivery Time :
15-30days
Packaging Details :
film
type :
hydraulic
Max width :
1400/1600/1800/2000/2200mm
Min width :
600mm
Single Side carriage :
2500kg
speed :
120-180m/min
Power :
7.5kw
Voltage :
220v/380v/440v
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support
Automatic grade :
Automatic
Packaging type :
Film
Warranty :
1 Year
Function :
Make corrugated cardboard from craft paper
Color :
according to your request
Description

Hydraulic Shaftless Paper Mill Roll Stand for corrugated line

Technology Parameter:

Max working width 1800
Min working width 600mm
Max paper roll diameter 1500mm
Single Side carriage 2500kg
Air pressure 0.6-0.9Mpa
Power 4.5kw
Speed 120-180m/min
Drive Hydraulic

Features:

l Symmetrical structure can install two rolls of paper at the same time and continually change paper roll;

l It adopts motorized control clamping, loosen, up-down, movement, contraposition, translation .

l Equipment was made of HT200-wide casting

l It adopts pneumatic braking.

l Electrical components are controlled centralized(domestic brand)

l Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

l Brake adjustable adopts multi point braking systerm

Hydraulic Shaftless Paper Mill Roll Stand for corrugated line
