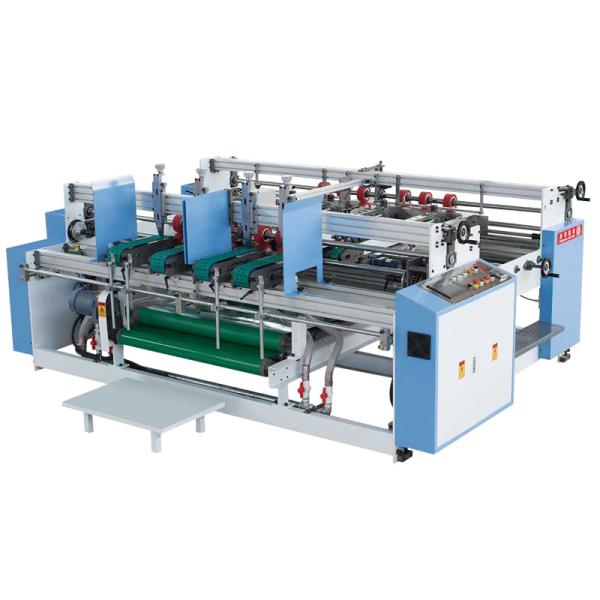

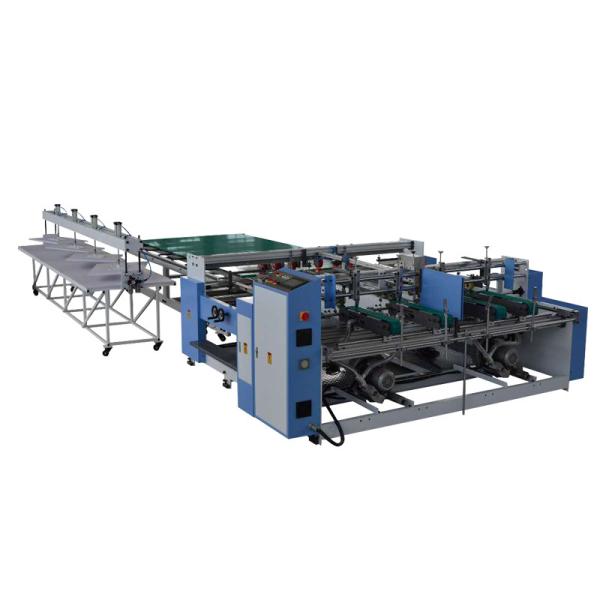

Dongguang Double Pieces Type Carton Folder Gluer Machine Manufacturer

Two piece folder gluer machine is a new type of "people-oriented and efficient" based on the change of domestic and international market demand, comprehensive analysis of similar products both at home and abroad and on the basis of further research on manufacturing, "Excellent performance" double-sided paste box machine.

Machine Features:

1. The machine uses dual servo feed, to ensure the stability of high-speed feeding equipment and high-speed feed synchronization, and servo feed can make A and B products individually set the feed size, to solve the size of the film problem.

2. Glue using double glue, respectively, hot-melt adhesives and general sealing plastic, to ensure that the product into the container and cold storage after 100% bonding.

3. Two-piece docking position is also used when the double-servo paper, to the machine at low speed bonding and high-speed bonding provides the same accuracy of consistency.

4. This machine can be flat box and shaped box, the first regulation of our original company, using a regulatory dual-use, to shorten the time for the transfer machine for a single.

High speed semi-auto folder gluer suit for AA, AB two piece box and single piece box. It instead manual glue, reduce labor intensity. Machine Features: high degree of automatic, reduce labour, improve product quality and effective, reduce work cost. Only need two workers operate it, one worker feed sheet and collect finished boxes, another worker fold and rectify boxes. Reduce space for machine. Working range of sheet: A-E flute.

Machine adopt double variable-frequency motor, PLC centralize control, drive and control precision.

High-power adsorption device for feed system, feed single and double piece of sheet. Independ servo motor for left and right feed wheel for double pieces sheet feeding. When sheet to out place stop feed.

When make two piece box, sheets can be glued during feed( hot-melt glue in the middle), three side pneumatic fix position, top pneumatic press, two piece sheets adhesive to one, glue firmly.

Press part is final set. After glue to one-piece fold by manual and rectify problem of line and flute cross. Go to press belt to finish product.
