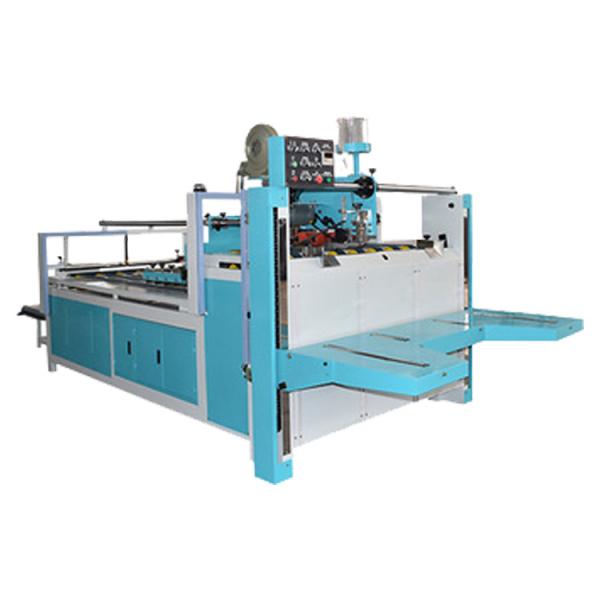

Semi Automatic Carton Folder Gluer Machine / One Piece Box Folder Gluer Machine ZXJ2600
Semi Automatic Carton Folder Gluer Machine / One Piece Box Folder Gluer Machine ZXJ2600
Semi Automatic Carton Folder Gluer Machine / One Piece Box Folder Gluer Machine ZXJ2600
Semi Automatic Carton Folder Gluer Machine / One Piece Box Folder Gluer Machine ZXJ2600
Specifications
Brand Name :
xinglong
Model Number :
ZXJ2600
Certification :
CE
Place of Origin :
Hebei
MOQ :
1 set
Price :
Negotiation
Supply Ability :
15sets/month
Delivery Time :
12-30days
Packaging Details :
film
Payment Terms :
T/T
name :
carton box folder gluer machine
Condition :
New
Automatic grade :
Semi-Automatic
Driven type :
Electric
Weight :
2150kg
Packaging type :
Film
Application :
Machinery & Hardware,Food,Medical,Beverage,Apparel
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support
Dimension(l*w*h) :
3570*3100*1200mm
Function :
Gluing Corrugated Carton Board
Description

ZXJ2600 Semi-Automatic One Piece Carton Folding Box Gluing Machine

Technology Parameter

Max size( length+ width) 2460mm
Max size(width+ height) 1500mm
Min size( length+ width) 340mm
Min size( width+ height) 240mm
Motor power 4kw
The length of Machine 4500nn
The Width of Machine 2100mm
The weight of Machine 1200kg
Machine speed 40
Dimension(mm) length*width*height 4000*2000*1900
Main parts list
Item Specification Qty(set) Original/brand
Main motor 0.75KW 1 Huicheng
Press motor 0.4KW 1 Huicheng
Glue motor 120W 250W 2 Oute
Blow 2.2KW 2 Shanghai
Bearing SKF
LM shaft Shunyang, Tianjin
Belt Xibeike

Function and Characteristics:

Folder gluer is the last process equipment of carton making, it is used to produce 3 and 5-layer corrugated cartons (for 7ply cartons is customized). Machine with high efficiency, glue consumption is low, product cost is 10times less than stitching. Produce carton beautiful and stable. Easy operation, save power and labor, running smoothly. It is a idea machine to make cartons.

Structure of machine

1. Feed table

Photoelectric control the height of table, reduce labor and improve work efficiency.

2. Press correction

After gluing go into press part, adhesion smooth and firm.

Equipped automatic correction device to enure the carton size is correctly, and effectively avoid knife and fork problem.

Equipped Fan to dry the glue fast.

Automatic counter with sensor, when reaching to the set height, send out cartons automatically.

3. Horizontal Output

Convey out product carton automatically, easy for bundling.
