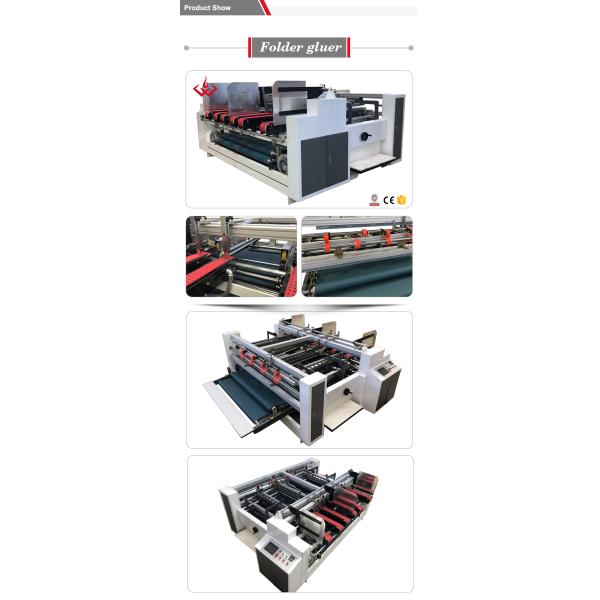

Two Pieces Carton Folder Gluer Machine 380v 50 Hz High Speed PLC Centralize Control
Two Pieces Carton Folder Gluer Machine 380v 50 Hz High Speed PLC Centralize Control
Two Pieces Carton Folder Gluer Machine 380v 50 Hz High Speed PLC Centralize Control
Two Pieces Carton Folder Gluer Machine 380v 50 Hz High Speed PLC Centralize Control
Two Pieces Carton Folder Gluer Machine 380v 50 Hz High Speed PLC Centralize Control
Two Pieces Carton Folder Gluer Machine 380v 50 Hz High Speed PLC Centralize Control
Specifications
Brand Name :
xinglong
Model Number :
SFG2000
Certification :
CE
Place of Origin :
Hebei
MOQ :
1set
Price :
USD15000-18600
Payment Terms :
T/T, L/C
Supply Ability :
11set/month
Delivery Time :
10-30 days
Packaging Details :
film
name :
two piece folder gluer machine
model :
SFG2000
automatic grade :
semi auto
Voltage :
380v 50 hz
Condition :
New
power :
5kw
Description

Hebei Province Two Pieces Carton Folding Box Gluing Machine

Technology Parameters

Model SPHX-2000A SPHX-2000B SPHX-2500A SPHX-2500B
Sheet size(mm)

Max1000×800,

Min450×320

Max 1000×1200,

Min 450×320

Max 1250×800,

Min 450×320

Max 1250×1200,

Min 450×320
Speed 0-2000pcs/h 0-2000pcs/h 0-2000pcs/h 0-2000pcs/h
Dimension 3400*3150*1340 3400*3550*1340 3900*3150*1340 3900*3550*1340
Power 6.6kw 6.6kw 6.6kw 6.6kw

Two Pieces Carton Folder Gluer Machine 380v 50 Hz High Speed PLC Centralize Control

High speed semi-auto folder gluer suit for AA, AB two piece box and single piece box. It instead manual glue, reduce labor intensity. Machine Features: high degree of automatic, reduce labour, improve product quality and effective, reduce work cost. Only need two workers operate it, one worker feed sheet and collect finished boxes, another worker fold and rectify boxes. Reduce space for machine. Working range of sheet: A-E flute.

Machine adopt double variable-frequency motor, PLC centralize control, drive and control precision.

High-power adsorption device for feed system, feed single and double piece of sheet. Independ servo motor for left and right feed wheel for double pieces sheet feeding. When sheet to out place stop feed.

When make two piece box, sheets can be glued during feed( hot-melt glue in the middle), three side pneumatic fix position, top pneumatic press, two piece sheets adhesive to one, glue firmly.

Press part is final set. After glue to one-piece fold by manual and rectify problem of line and flute cross. Go to press belt to finish product
