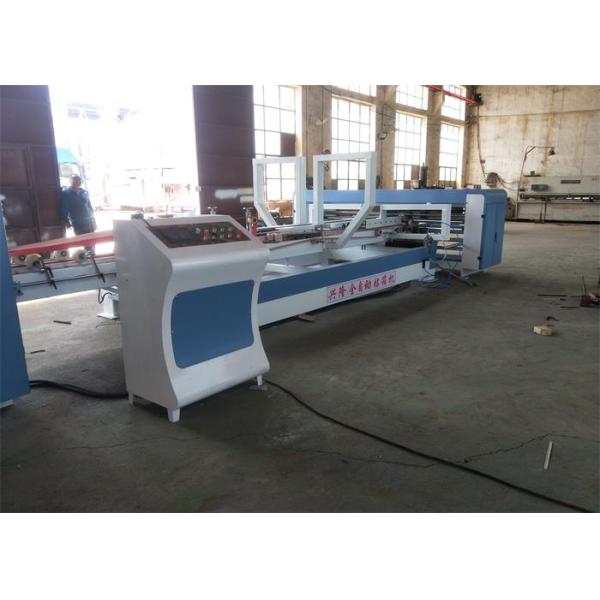

220V/380V Box Folding And Gluing Machine Fully Automatically 220 Sheets / Min
220V/380V Box Folding And Gluing Machine Fully Automatically 220 Sheets / Min
220V/380V Box Folding And Gluing Machine Fully Automatically 220 Sheets / Min
220V/380V Box Folding And Gluing Machine Fully Automatically 220 Sheets / Min
220V/380V Box Folding And Gluing Machine Fully Automatically 220 Sheets / Min
220V/380V Box Folding And Gluing Machine Fully Automatically 220 Sheets / Min
Specifications
Brand Name :
xinglong
Model Number :
XL-QZD
Certification :
CE
Place of Origin :
Hebei
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15set/month
Delivery Time :
10-20days
Packaging Details :
PE film
Certificate :
CE
feeding way :
belt suction
Warranty :
1 Year
Application :
Machinery & Hardware,Food,Medical,Beverage,Apparel
Max speed :
220sheets/min
Weight :
1100 kgs
Voltage :
220V/380V
Description
Full Automatic Folder Gluer Machine For Corrugated Cardboard Box Making

QZD automatic folder & gluer consist of three parts which feeding part, gluing folding part, counting and piling part. Digital display adjust speed, microcomputer adjust width, with easy, fast, stable, precision, automatically feed, fold and glue, count, pill and output. Average speed: 150sheets/min, Max speed: 220sheets/min, high efficiency energy save.

Model QZD-2000 QZD-2400 QZD-2800
Max. cardboard 1000*2000mm 1000*2400mm 1200*2800mm
Min. cardboard 300*680mm 300*800mm 300*800mm
Installation area 2400*13500mm 2800*15500mm 3000*15500mm
Power required 11.5kw 11.5kw 11.5kw

Characteristics:

- Automatically finish the top folding and middle folding, meanwhile finish the glue belt stick off the upper and lower part, save labor and time.

- Suitable different cartons, adjust fast and easy.

- The machine work stable, the effective is firm and good looking.

- Easy to operate and easy to maintain.

- Automatically amend carton right-angle degree.

Feeding section:

- Vacuum suction feeding to feed warping paperboard easily.

- Quality electromagnetic clutch and brake adopted, feeding section controlled independent, operation easily.

- Scorer wheel adjustable, suit for 2-8nn thick paperboard.

- Second creasing structure can impress again the paper board which was not creased well.

Gluer &folder section:

- Simples structure and high reliability, glue quantity adjustable, cleaning easily.

- Stainless steel glue wheel adopted, long life and saving glue cost.

- Imported quality rubber belt adopted , automatic folding.

- With paperboard rectify device and creasing rectify device.

Counter & stacker section:

- Stacking and counting are simple and reliable.

- Digital control, operation easily and reliable, No-stop put in data and automatic counting.

- With rectification function.

- Paperboard counting and put out by pneumatic, stable and quickly.
