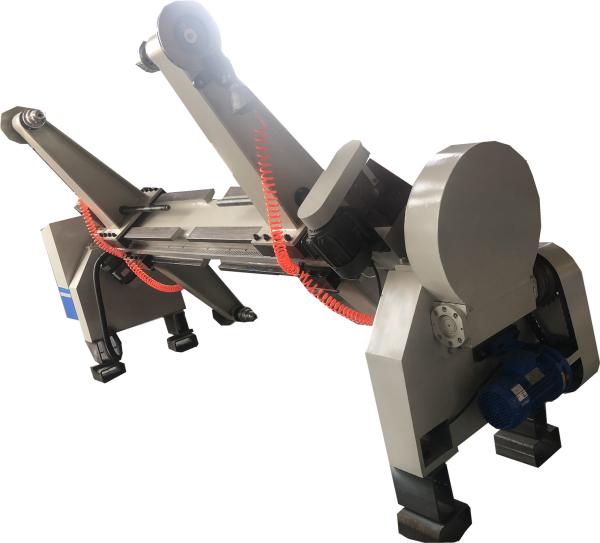

Durable Corrugated Cardboard Production Line Shaftless Electric Mill Roll Stand
Durable Corrugated Cardboard Production Line Shaftless Electric Mill Roll Stand
Durable Corrugated Cardboard Production Line Shaftless Electric Mill Roll Stand
Durable Corrugated Cardboard Production Line Shaftless Electric Mill Roll Stand
Specifications
Brand Name :
xinglong
Model Number :
1600/1800/2000
Certification :
CE
Place of Origin :
Hebei
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
15sets/month
Delivery Time :
15-30days
Packaging Details :
film
Name :
mill roll stand
type :
electric
model :
ERS1600/1800/2000/2200
Max width :
1600/1800/2000/2200mm
Min width :
600mm
speed :
60-100m/min
lead time :
7-15days
warranty :
1 year
Description

Dongguang Corrugated Cardboard Machine Shaftless Electric Mill Roll Stand

The machine is for users to manuafacture the corrugated cardboard sheets.
There are thin blade cutter and cut off machines to cut the corrugated into the dimension you need.
Finished Products:
single facer corrgated paper
3 ply corrugated cardboard
5 ply corrugated cardboard
7 ply corrugated cardboard etc.
Model
Max. Mill Roll Width
Max. Mill Roll Diameter
Max. Loading Capacity
Movement Control
ZJ-D
1200-1800mm
1400mm
2000kgs
Electric

1. Designed with 4 symmetrical supporting arms which can hold 2 mill rolls at the same time.
2. The motorized mill roll stand comes with disc type manual brake equipment that is designed for adjusting the web tension at any time.
3. Clamping and rotary structure of the arm are provided iwth fixed torque clutch, thus ensuring high safety
Durable Corrugated Cardboard Production Line Shaftless Electric Mill Roll StandDurable Corrugated Cardboard Production Line Shaftless Electric Mill Roll Stand
