Shaftless Reel Paper Hydraulic Mill Roll Stand Electrical Drive Easy Installation
Shaftless Reel Paper Hydraulic Mill Roll Stand Electrical Drive Easy Installation
Shaftless Reel Paper Hydraulic Mill Roll Stand Electrical Drive Easy Installation
Shaftless Reel Paper Hydraulic Mill Roll Stand Electrical Drive Easy Installation
Specifications
Brand Name :
xinglong
Model Number :
1600/1800/2000/2200
Certification :
CE
Place of Origin :
Hebei
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
15sets/month
Delivery Time :
15-30days
Packaging Details :
film
Name :
mill roll stand
type :
electric
model :
ERS1600/1800/2000/2200
Max width :
1400/1600/1800/2000/2200mm
Min width :
600mm
speed :
60-100m/min
Description

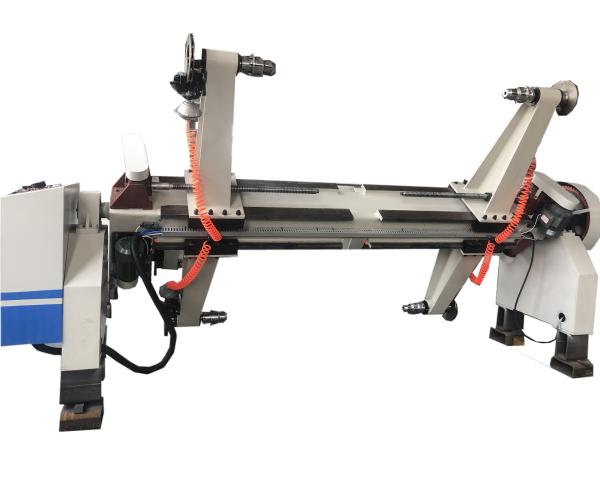

Chinese Electrical Drive Shaftless Reel Paper Stand Roll Holder

1. Machine Description:

* This machine is used for supporting the paper roll, supply the paper to the production line

2. Machine Function:

* It can be loading two paper rolls at the same time, without stopping the machine for changing paper roll

* The whole machine moving use 5 motor fully electric controlled, electric control arm lift and down, clamping and open, left and right moving

* Tension control: manual or pneumatic discbrakes

* The chuck adopt inner expansion type or teeth type, reduce the destruction of the paper core. saving paper

3. Main Components:

4. Machine Technical Parameter:

Max. Working Width 1800mm
Min. Working Width 700mm
Max. Paper Mill Dia 1400mm
Max. Working Pneumatic Pressure 0.6-0.9Mpa
Max. Supporting Weight (One side) 2T
Clamping Motor Power 550W*4pcs
Lifting Motor Power 1.5KW
