Shaftless Paper Hydraulic Mill Roll Stand For Corrugated Single Facer Machine
Shaftless Paper Hydraulic Mill Roll Stand For Corrugated Single Facer Machine
Shaftless Paper Hydraulic Mill Roll Stand For Corrugated Single Facer Machine
Shaftless Paper Hydraulic Mill Roll Stand For Corrugated Single Facer Machine
Shaftless Paper Hydraulic Mill Roll Stand For Corrugated Single Facer Machine
Shaftless Paper Hydraulic Mill Roll Stand For Corrugated Single Facer Machine
Specifications
Brand Name :
xinglong
Model Number :
1400/1600/1800/2000
Certification :
CE
Place of Origin :
Hebei
MOQ :
1set
Price :
USD8900-11000
Payment Terms :
T/T, L/C
Supply Ability :
15sets/month
Delivery Time :
15-30days
Packaging Details :
film
Name :
mill roll stand
type :
hydraulic
model :
HRS/1600/1800/2000/2200
Max width :
1600/1800/2000/2200mm
Min width :
600mm
Power :
7.5kw
Voltage :
220v/380v/440v
Automatic grade :
Automatic
Function :
Make corrugated cardboard from craft paper
Color :
or according to your request
Description

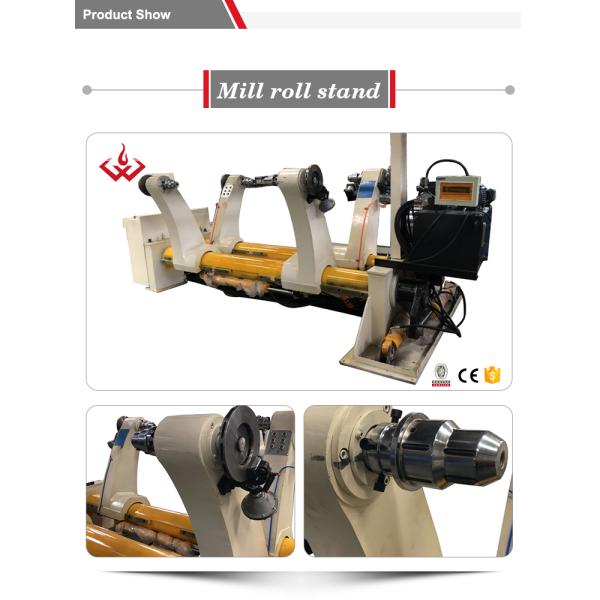

Hydraulic Shaftless Paper Mill Roll Stand for corrugated single facer machine

Technology Parameter:

Max working width 1400/1600/1800/2000mm
Min working width 600mm
Max paper roll diameter 1500mm
Single Side carriage 2500kg
Air pressure 0.6-0.9Mpa
Power 4.5kw
Speed 120-180m/min
Drive Hydraulic

Features:

l Symmetrical structure can install two rolls of paper at the same time and continually change paper roll;

l It adopts motorized control clamping, loosen, up-down, movement, contraposition, translation .

l Equipment was made of HT200-wide casting

l It adopts pneumatic braking.

l Electrical components are controlled centralized(domestic brand)

l Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

l Brake adjustable adopts multi point braking systerm

adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

brake adjustable adopts multipoint braking system.

every stand matched two sets paper car , and they can paper on the both sides at the same time.

technical parameters:

1, the range of clamping paper:MAX1800mm MIN1000mm

2, clamping diameters:MAX1500mmMIN350mm

3, main shaft diameter of paper holder:240mm

4, gas source work pressure(Mpa):0.4---0.8Mpa

5, equipment size:Lmx4.3*Wmx1.8*Hmx1.6

6, single weight:MAX4000Kg

Hydraulic system parameters:

1, Work pressure(Mpa):16---18Mpa

2, lifting hydraulic cylinder:100×440mm

3, Clamping hydraulic cylinder: 63×1300m

4, hydraulic station motor power:3KW --380V -- 50Hz

5, solenoid valve voltage:220V 50 Hze of main parts
