Specifications
Brand Name :
Xinglong
Model Number :
WJ100-2000
Certification :
CE
Place of Origin :
Hebei China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 set/year
Delivery Time :
45~60days
Packaging Details :
5*40GP container, no package by FCL
After-sales Service Provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Max Effective width :
2000mm
Design speed :
100m/min
Cutting length and precision :
500—9999mm ±1mm
Total length :
About 60m (depend on base drawing)
Flute type :
A,B,C,E UV flute
Voltage :
220V/380V
Description

Factory Selling 3ply Corrugated Carton Box Manufacturing Auto Plant

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.
Please contact us for the full version of video.

Main units:

No. Name Sets Comment
1 Mill roll stand Electric mill roll stand , expansion dop top, pneumatioc brake
2 Single facer vac-sorb,φ320 alloy roller ,cardan drive
3 Feeding paper bridge Electric adjust deviation,adsorb tension
4 Second gluing machine Conversion synchronous control
5 Triply pre-heater

φ 800,electric wrap angle

(including qualification certificate )

6 pre-heater

φ 800,land type electric wrap angle

(including qualification certificate )

7

Dry formed

part

520mm×18 pieces hot plate ,adopt Adopt up and down intensive roller(including qualification certificate )
8

Heat formed

part

Adopt up and down intensive roller ,length 8m
9 Feeding paper belt High quality carton belt , electric promote
10 Thin blade slitter scorer machine 5 blade 8 line , electric Correct error , alloy blade
11 Corss cutter

Computer control cutting cardboard length 500-9999mm;

cutting cardboard precision ±1mm

12 Main drive Main power 25KW
13 Make paste system Barrel type ,electric stir circulate glue design
14 Stand feeding paper car Include slipping way
15 Pump Electric aeration
16 Electric system One Operate cabinet ,one sinlge facer 1 main drive
17 Steam system Not including heat source and pipe
18 Gantry stacker Belt drive type

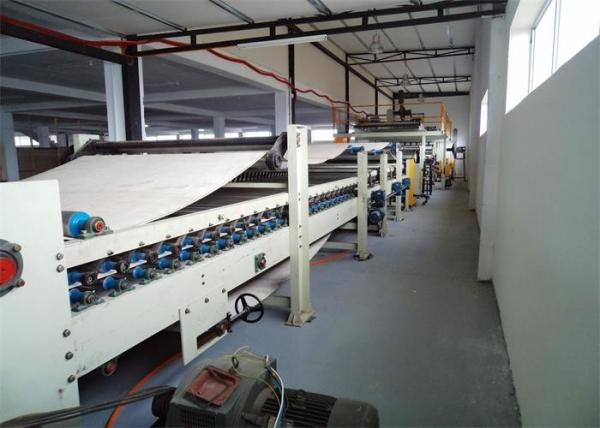

Electric Aeration Pump Corrugated Cardboard Production Line 3 Ply Manufacturing Auto Plant
