Corrugated Board Flexo Water Ink Printer Slotter Die-Cutter stacker Machine
Corrugated Board Flexo Water Ink Printer Slotter Die-Cutter stacker Machine
Corrugated Board Flexo Water Ink Printer Slotter Die-Cutter stacker Machine
Corrugated Board Flexo Water Ink Printer Slotter Die-Cutter stacker Machine
Specifications
Brand Name :
xinglong
Model Number :
AYKM
Certification :
CE
Place of Origin :
hebei
MOQ :
1set
Price :
Negotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5sets/month
Delivery Time :
15-50days
Packaging Details :
PE fimlm
color unit :
1-6
feeding way :
lead edge
control system :
PLC computer
design speed :
120 pcs/min
working speed :
100 pcs/min
certificate :
CE
voltage :
380/415/440V
lead time :
20-30days
package :
PE film
weight :
12-40T
Main power :
about 18KW
Standard Thickness of printing plate :
6mm
Printing precision :
±0.75mm
Thickness of cardboard :
1.2-9mm
wall thickness :
50mm
After-sales service provided :
Engineers available to service machinery overseas,Field installation
Description

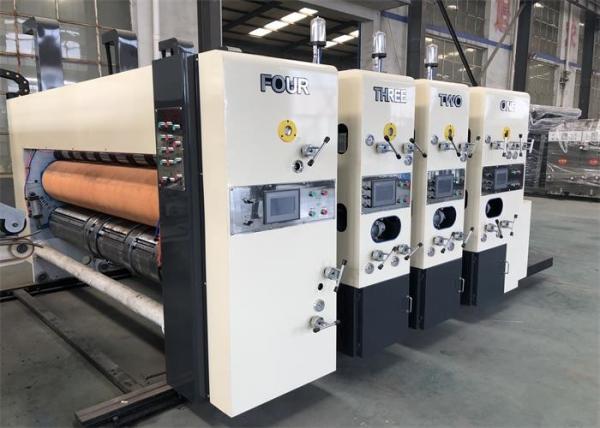

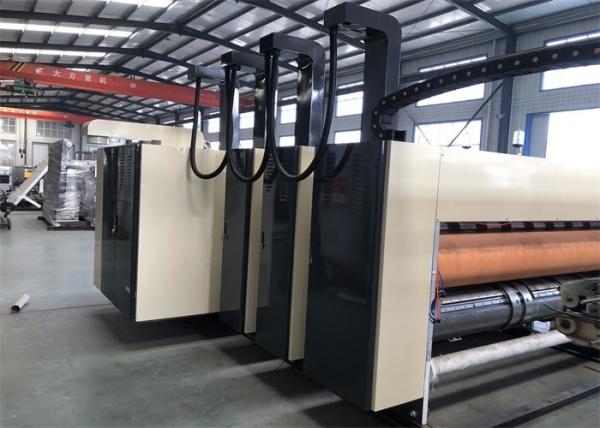

Corrugated Board Flexo Water Ink Printer Slotter Die-Cutter Machine

Performance and Characteristics:

The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.

Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .

All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.

Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.

The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.

Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen)

Lead edge feeder with vacuum sucntion, easy operate, high precision.

All units move automatic orderly, locked by pneumatic, alarm continually

Main motor is VFD, working stability, low power consumption.

Main Technology parameters

Model YJ150-1022 YJ130-1224 YJ120-1426
Machine inside width (mm) 2400 2600 2800
Max feeding paper siz(mm) 1000*2200mm 1200mm*2400mm 1400*2600mm
Max effective printing size(mm) 1000*2000mm 1200mm*2200mm 1400*2400mm
Min coverage size(mm) 350*700mm 350mm*700mm 350mm*700mm
Design speed (pcs/min) 150pcs/min 130pcs/min 120pcs/min
Working speed (pcs/min) 130pcs/min 120pcs/min 100pcs/min
Standard Thickness of printing plate 6mm 6mm 6mm
Printing precision ±0.5mm ±0.5mm ±0.5mm
Thickness of cardboard 1.2-9mm 1.2-9mm 1.2-9mm
Wall thickness 40mm 40mm 40mm
Main motor power About :15kw About :15kw About :15kw
