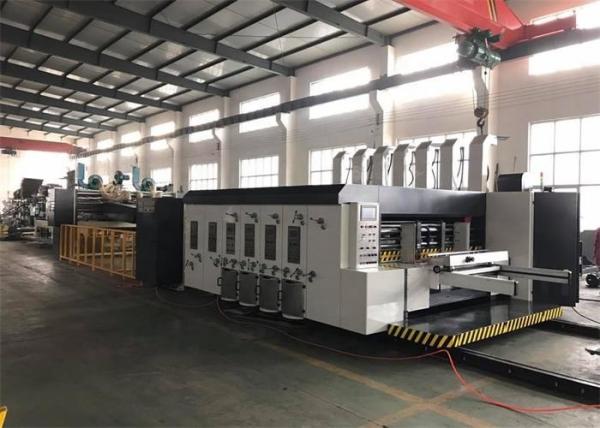

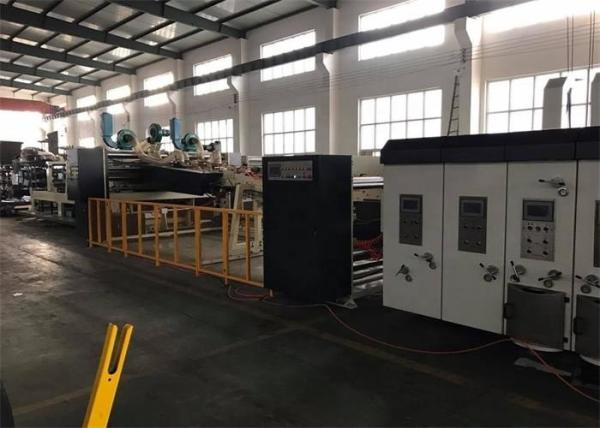

Multi Color Printer Slotter Die-Cutter Gluer Strapper Linkage Line For Carton Box
Multi Color Printer Slotter Die-Cutter Gluer Strapper Linkage Line For Carton Box
Multi Color Printer Slotter Die-Cutter Gluer Strapper Linkage Line For Carton Box
Multi Color Printer Slotter Die-Cutter Gluer Strapper Linkage Line For Carton Box
Specifications
Brand Name :
xinglong
Model Number :
FAYZ1022
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2sets/month
Delivery Time :
30-60days
Packaging Details :
film
Name :
carton production line
type :
Full automatic
design speed :
220pcs/min
working speed :
200pcs/min
color :
1-6 as customized
cardboard thickness :
1.5-9mm
wall thickness :
50-60mm
Printing precision :
±0.5mm
Standard Thickness of printing plate :
6mm
Main motor power :
30 KW
Voltage :
380V/3Phaze /50Hz
After-sales service provided :
Engineers available to service machinery overseas,Video technical support
Application :
Corrugated Carton Box,printing slotting and die cutting,Carton Box Making Machine
Condition :
New
Weight :
28000
Description

Multi Color Printer Slotter Die-Cutter Gluer Strapper Linkage Line For Carton Box

Main technology Parameters

Model LD240-920 LD220-1022 LD200-1224 LD180-1426
Machine inside width (mm) 2200 2400 2600 2800
Max feeding paper siz(mm) 900*2200 1000*2400 1200*2600 1450*2600
Max effective printing size(mm) 900*2000 1000*2200 1200*2400 1450*2400
Min coverage size(mm) 350*700 350*700 400*700 400*700mm
Min slotting space(mm) 190*50*190*50 190*50*190*50 190*50*190*50 190*50*190*50
Design speed 240pcs/min 220pcs/min 200pcs/min 180pcs/min
Working speed(pcs/min) 220pcs/min 200pcs/min 160-180pcs/min 150-160pcs/min
Standard Thickness of printing plate 6mm 6mm 6mm 6mm
Printing precision ±0.5mm ±0.5mm ±0.5mm ±0.5mm
Thickness of cardboard 1.2-9mm 1.2-9mm 1.2-9mm 1.2-9mm
Wall thickness 50mm 50mm 50mm 50mm
Main motor power About 30kw About 30kw About 30kw About 30kw



Automic Flexo Printing Slotting Die Cutting Machine

Features:

l Designed according to high request and reliable function, humanization operation that can setting, revision, implement, changing and memories in short time, and display data.

l All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.

l Drive gears adopt high quality steel with heat treatment with grinded.

l The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

l Engineer oil automatic balance device, keep the oil level equal in each unit.

l Phase adopts electric digital adjusting with "automatic zero return" function(options: PLC control touch screen)

l Feeding type use lead edge or kick feeding.

l Main motor is VFD.

(1). Feeding unit

l Adopts lead edge feeding system. Adjust wind volume according on cardboard bending degree to ensure feeding paper smoothly.

l Main motor start protecting device, when the machine units not be clocked, machine can't run.

l Double feeding rubber roller, the rubber roller has slot for prevent the overlarge pressure.

l Front feeding rubber roller with air cylinder cushioning device, feeding accurately and stable, will not destroy the hardness of the cardboard when the feeding space is small.

l The side baffles adopt electric control. The back baffle box be adjusted by motorized, the front baffles space adopts motorized adjustment.

l With brush dust-remove device with dust-absorption blower. Can adjust the wind volume accord the cardboard size.
