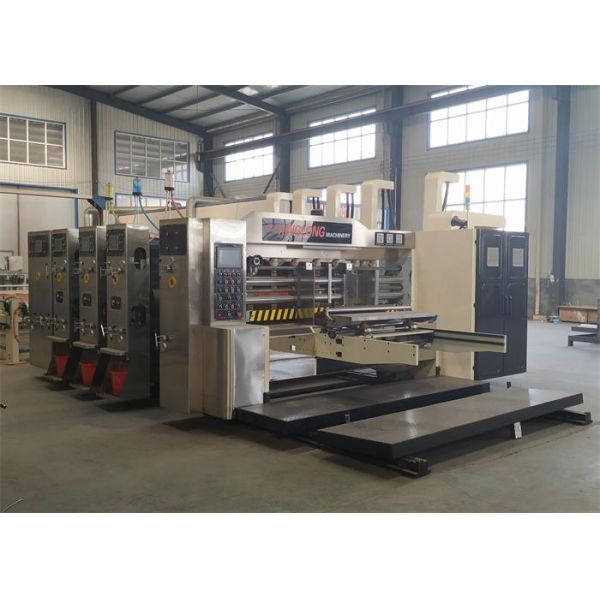

Vacuum Transfer Flexo Printer Slotter Die Cutter , High Defination Rotary Die Cutter

Quality: Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.

Detail

Feeding Unit

1. Lead edge paper feeder with wheels feeding system,laed feeding can adjust paper length according to paper specification.

2. Frequency converter adjustment vacuum negative pressure value can adopt tp different cardboard specification and curved cardboard.

3. Feeding roller is made of two-layer rubber,inner layer is soft and outer layer is hard which makes inner layer more flexible and surface more wear-resistant and reduce the flute damage of the cardboard.

4. Motorized backstops forward/backward and up/down position for easy and quick adjustment.

5. All electronics are original Siemens.

Printing Unit

1. Mounting roller with left and right both of side locking device,let the mounting position more accurately.

2. Printing register is digitally controlled by motor and PLC.

3. Transverse register is also digitally controlled by motor and PLC.

4. Quick set and self locking pull collars.

5. Automatic resetting after cleaning the printer.

Slotting Unit

1. The first pre-creasing can protect the cardboard in case of being damaged.

2. Slotting register and height of carton box are digitally controlled by motor and PLC.

3. Transversal movement of the pre-cresasing rolls and slotting bosses' are digitally controlled by motor and PLC.

4. Motorized controls of the slotting bosses caliber.

Die Cutting Unit

1. With separate servo motor.

2. Side to side oscillation of anvil drum(45mm).

3. The die drum's transverse movement can prolong the service life of anvil cover.

4. Die cutting register is digitally controlled by motor and PLC.

5. Anvil trimmer to keep surface of the anvil covers flat and smooth.
