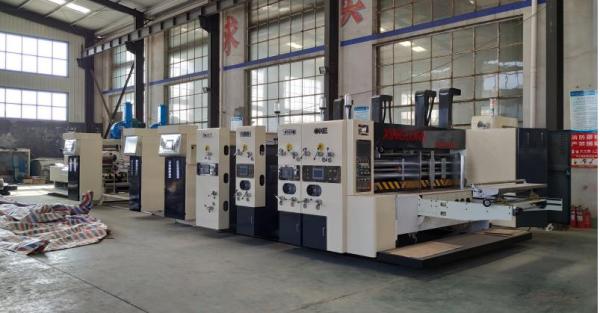

Muliti color Printing Slotting Die Cutter Folder Gluer Carton Making Machine

Performance and Characteristics:

• The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
• Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
• All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
• Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
• The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
• The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.

• All units PLC control with touch screen, with “automatic zero return” and “memories” function

• The machine adopts lead edge feeding, low demand for the cardboard,speed fast.
• Main motor is VFD, working stability, low power consumption.

Main technology Parameters

Equipment process

Printing →Die Cutting/Slotting Unit→Gluing→Folding→Preloading→Count&Stacking→Packaging

Gluing machine function description:

Gluing part:

The horizontal movement of rubber roller is adjusted by electric screw rod. The size is controlled by man-machine interface

The gluing part adopts nonstop or gluing system to prevent the glue solidification when the machine starts at the end of a short time,the gap of the upper rubber wheel can be adjusted easily, which can adapt to the gluing of 3-8mm thick paper, and the gluing amount can be adjusted easily.

The belt speed of upper and lower beams and the speed of slotting machine can be adjusted separately, and the gluing folding belt and conveyor belt are very close to the speed of the slotting machine, avoiding the problem of paper grabbing or blocking between the paste box line and the slotting machine.

The speed of lower belt is separately adjusted by the servo motor, that is, when the upper and lower belt speed is different, it can be adjusted to the same, and micro-adjust for rectify correction.

Adopt belt and rubber covered roller to fold, flexible to adjust the angle of folding and easy to operate.

Preloading degree, using up and down sticks adjustable gap preloading can press 3-8mm paper thick folding box, with man-machine interface for easy adjustment.

Stacking and counting part:

Electric stacking and aligning of the cardboard, attain totally work automatically.

Adopt electric eye (electric eye signal) to count carton quantity, easy to setting and operate ,structure safety and dependable.

electric eye count the stacking quantity, accurate output
