Three - Layer Common - Extruding Rotary Die plastic blown film machine With Screw Speed 15-150r / min
Three - Layer Common - Extruding Rotary Die plastic blown film machine With Screw Speed 15-150r / min
Three - Layer Common - Extruding Rotary Die plastic blown film machine With Screw Speed 15-150r / min
Three - Layer Common - Extruding Rotary Die plastic blown film machine With Screw Speed 15-150r / min
Three - Layer Common - Extruding Rotary Die plastic blown film machine With Screw Speed 15-150r / min
Three - Layer Common - Extruding Rotary Die plastic blown film machine With Screw Speed 15-150r / min
Three - Layer Common - Extruding Rotary Die plastic blown film machine With Screw Speed 15-150r / min
Three - Layer Common - Extruding Rotary Die plastic blown film machine With Screw Speed 15-150r / min
Specifications
Brand Name :
LS
Model Number :
3SJ
Certification :
CE
Place of Origin :
CHINA
MOQ :
one set
Delivery Time :
Within 30 working days
Packaging Details :
Wooden packing
Blow Moulding Type :
Extrusion Blow Moulding
Screw Speed :
15-150r/min
Application :
Film
Plastic Processed :
PE
Voltage :
380v
After-sales Service Provided :
Engineers available to service machinery overseas
Extrusion Output :
110-170kg/h
Description


Three - Layer Common - Extruding Rotary Die plastic blown film machine With Screw Speed 15-150r / min


Quick Detail:

Condition: New
Blow Moulding Type: Extrusion Blow Moulding
Plastic Processed: PE
Application: Film
Automatic: Yes
Voltage: 380v
Screw Speed: 15-150r/min
Extrusion Output: 110-170kg/h
Warranty: one year
After-sales Service Provided: Engineers available to service machinery overseas


Description:

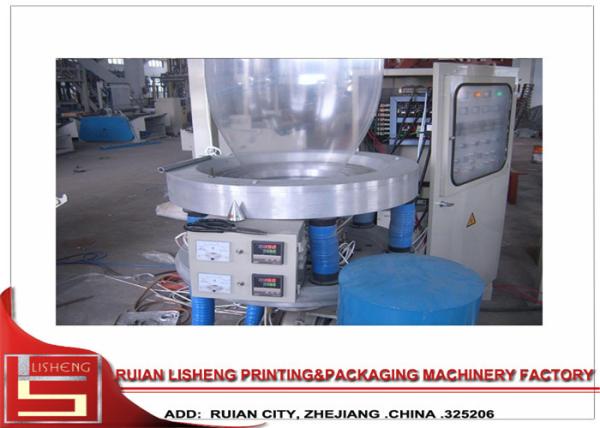

1. Die head is layer type spiral mandrel, continuous 360 degree rotation.

2. Screen pack changer design is reliable, safe in operation and change the fitter screen easier.

3. Various functional parts may be installed to the lies., such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.


Specifications:

Model

3SJ-G1000

3SJ-G1200

3SJ-G1500

Screw Diameter

φ55*2 φ60*1

φ60*2 φ65*1

φ65*2 φ70*1

Screw Ratio(L/D)

28:1

28:1

28:1

Screw Speed

15-150r/min

15-150r/min

15-150r/min

Power of Main Motor

15Kw *2 18.5Kw*1

18.5Kw *2 22Kw*1

22Kw *2 30Kw*1

Extrusion Output110kg/h140kg/h170kg/h
Range of Dieφ150 φ200φ200 φ250φ250 φ300

Max.Folding Width of Film

1000mm

1200mm

1500mm

Single-sided Thickness of Film

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

ElectricTotal Capacity

76Kw

88Kw

102Kw

Weight of Machine

6000kg

8000kg

10000kg

Overall Dimensions

6600*4100*5000mm

6800*4300*6000mm

7000*4800*7500mm

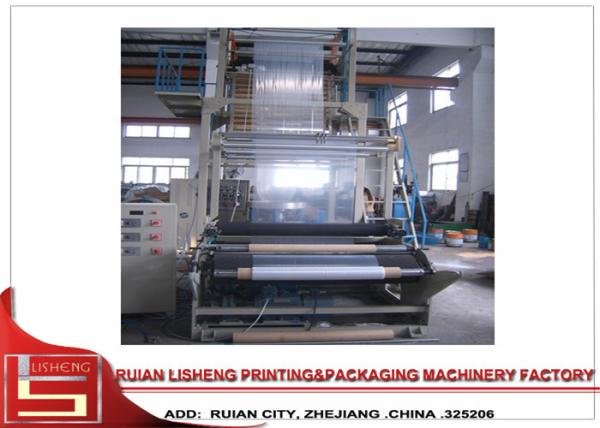

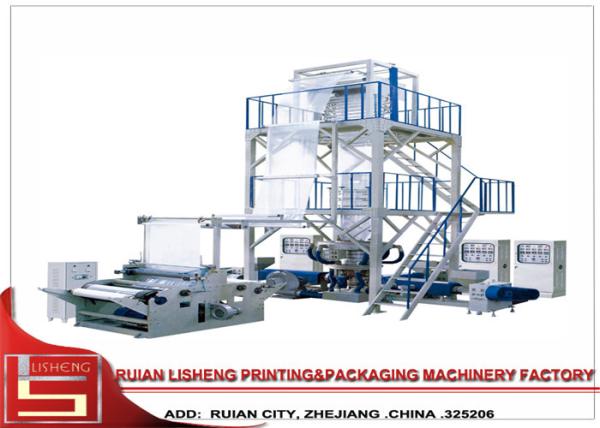

Product Sample:


Three - Layer Common - Extruding Rotary Die plastic blown film machine With Screw Speed 15-150r / min
