Automatic Bag Forming Machine With Computer Control , Heat – sealing Bag Making Machine
Automatic Bag Forming Machine With Computer Control , Heat – sealing Bag Making Machine
Automatic Bag Forming Machine With Computer Control , Heat – sealing Bag Making Machine
Automatic Bag Forming Machine With Computer Control , Heat – sealing Bag Making Machine
Automatic Bag Forming Machine With Computer Control , Heat – sealing Bag Making Machine
Automatic Bag Forming Machine With Computer Control , Heat – sealing Bag Making Machine
Specifications
Brand Name :
LS
Model Number :
SHXJ
Certification :
CE
Place of Origin :
China (Mainland)
MOQ :
1set
Supply Ability :
20sets/month
Delivery Time :
Within 30 working days
Packaging Details :
film packing and wooden packing, wooden packing is with addtional fee
Material :
PE, Plastic Film
Bag-making Speed :
30-180pcs/min
Bag Type :
Shopping bag
Warranty :
One year
Computerized :
Yes
Certificate :
CE, ISO
Description

Automatic Bag Forming Machine With Computer Control , Heat – sealing Bag Making Machine

Quick Detail:

Model NO. SHXJ

Machine Type: Bag Forming Machine

Bag Type: Shopping Bag

Material: Plastic

Max. Bag-making Width: 750mm

Max. Bag-making Length: 1200mm

Capacity: 30-180pcs/min

Certificate: CE, ISO Certificate

Description:

1. The whole machine adopts microcomputer control and material-pulling by stepping motor(Servomotor control system can also be selected and equipped).

2. Arbitrary fixed-length, accurate and stable step photoelectric tracking stopping automatically when the label is lost, photoelectric control feeding.

3. Automatic counting and set able counting alarm.

4. Automatic constant temperature makes the sealing of bag opening firm and smooth.

5. Non-printing material can make bags in double lines by 4 rolls feeding, making 4 bags in one time.

Specifications:

Model of Machine

SHXJ-500

 SHXJ-600 SHXJ-700 SHXJ-800

Max. Bag-making Width

450mm

 550mm 650mm 750mm

Max. Cutting Length

1200mm

 1200mm 999mm 999mm

Capacity

30-180pcs/min

 30-180pcs/min 30-180pcs/min 30-180pcs/min

Total Power

4 Kw

 4.2 Kw 4.5 Kw 5 Kw

Weight of Machine

800kg

 850kg 900kg 950kg

Overall Dimension (mm)

3300*940*1600

 3300*1040*1600 3300*1140*1600 3300*1240*1600

Applications:

It is used for producing vest bags and flat-opening bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurately and the error smaller .It adopts advanced computer to adjust length more freely and accurately.

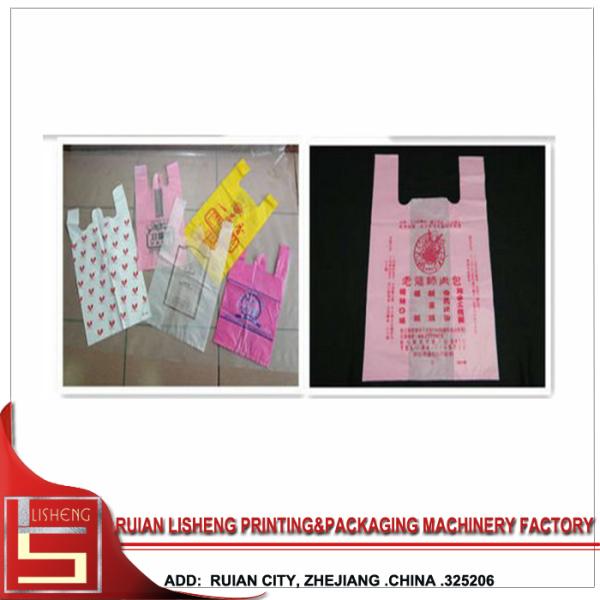

Our Product Show:

Automatic Bag Forming Machine With Computer Control , Heat – sealing Bag Making Machine
