Specifications
Brand Name :
LS
Model Number :
YH
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
USD10000-80000/set
Payment Terms :
L/C, T/T
Supply Ability :
20sets
Delivery Time :
40days
Packaging Details :
Wooden case packing
Width :
600mm,800mm,1000mm
Printing precision :
0.1mm
Speed :
150m/min
Comtrol :
PLC
Description

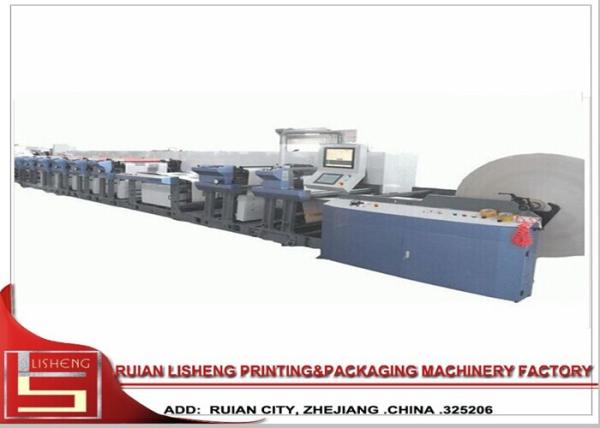

CE / ISO Certificated flexo printing unit for fabric , polygraph bag

Specifications:

flexo machine
roll to roll
resin plate
to printi various material

1. Features:

This machine is a printing machine which adopts flexible photosensitive resin plates, rubber plates as the

base material, anil-ox rollers for transferring ink, liquid ink for printing. It is controlled centrally by PLC

system and generally consists of unwinding section, in feed section, printing section, drying section, out-feed section, rewinding section and control section. This machine is an ideal machine for printing paper cup, carton, paper bag, paper package, and so on.
2. Advantages:

1.Unwinding station
2.Electronic rectifying system(imported from America)
3.Unwinding braking system(magnetic powder braking-imported original)
4.Manual tension control unit
5.Printing unit
6.Output tension unit
7.Still image inspecting system(imported from America)
8.Catwalk
9.Rewinding unit

OPTIONAL FUNCTION DEVICES:
cassette design in printing stations
non-stop changing unwinder
anti-static bar
corona system
delam & relam self-adhesive labels
reverse printing with turn bar
UV glazing system
cold lamination/foil stamping
vacuum web cleaner
ink pump
enclosed doctor blade system
rotary die-cutter
creasing/embossing/punching/fan-folding
sheeter
slitting
electronic hoist
multiple waste take-up
conveyor
rear rectifying systemimported from America
2nd pass printing
in-line gravure/screen printing

Technical Parameters:

MODEL YH810 YH1000 YH1200
Max.Web Width 825mm 1015mm 1215mm
Max.Printing Width 810mm 1000mm 1200mm
Max.Die-cut Width 810mm 1000mm 1200mm
Printing Repeat Length 260-710mm 260-710mm 260-710mm
Die-cut Repeat Length 260-710mm 260-710mm 260-710mm
Max. Unwinder Diameter 1524mm 1524mm 1524mm
Max. Rewinder Diameter 1524mm 1524mm 1524mm
Gearing Size 1/8CP 1/8CP 1/8CP
Max. Mechanical Speed 152m/min 152m/min 152m/min
OD of Web Roller 100mm 100mm 100mm
Main Drive 15-18kw 20-30kw 20-30kw
Motor
Lubricating System auto auto auto
Air Pressure 0.6mp 0.6mp 0.6mp
Power Required 380v3ph50hz 380v3ph50hz 380v3ph50hz

Sample Show

CE / ISO Certificated flexo printing unit for fabric , polygraph bagCE / ISO Certificated flexo printing unit for fabric , polygraph bag
