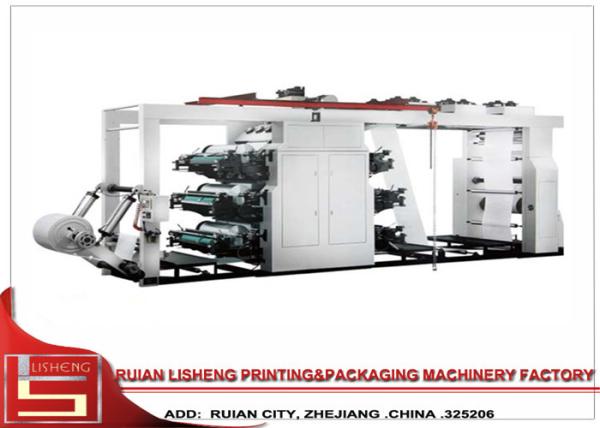

PLC Control Six Colors Flexo Printing Machine Double Side Printing With Doctor Blade
PLC Control Six Colors Flexo Printing Machine Double Side Printing With Doctor Blade
PLC Control Six Colors Flexo Printing Machine Double Side Printing With Doctor Blade
PLC Control Six Colors Flexo Printing Machine Double Side Printing With Doctor Blade
PLC Control Six Colors Flexo Printing Machine Double Side Printing With Doctor Blade
PLC Control Six Colors Flexo Printing Machine Double Side Printing With Doctor Blade
Specifications
Brand Name :
Lisheng
Model Number :
YTB-6
Certification :
CE
Place of Origin :
China
MOQ :
one set
Price :
USD 1000-20000
Payment Terms :
T/T
Supply Ability :
20-30sets/ month
Delivery Time :
30 days
Packaging Details :
film packing
Color & Page :
Double Faced Multi Colors
Plate :
resin or rubber
Structure :
Stack
Printing width :
600mm-3200mm
Export market :
global
Automatic Grade :
Automatic
Max.Diameter of Roll Material :
φ800mm (normal)
Description

PLC Control Flexo Printing Machine Double Side Printing Doctor Blade Type

PLC Control Six Colors Flexo Printing Machine Double Side Printing With Doctor Blade

Quick Detail:

Machine frame: 75-100mm

Model No. : YTB-6

Max speed: 80-120m/min

Tension: Automatic Tension Controller

Anilox roller:Steel Or Ceramic Anilox Roller

Color& page: Double Faced Multi Colors

Certificate: CE Certificate

Use:

This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Description:

1. Unwind unit: Magnetic powder with auto. tension, EPC device
2. Rewind unit: Magnetic powder with auto. tension
3. Machine is run with helical gear
4. Anilox roller is from Japan Murata brand
5. Easy operation, flexible starting, accurate color register.
6.The meter counter can set printing quantity according to the requirements.
7. Automatically at the quantity or when the material is cut off.
8. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting
9. The printing ink is spread by the anilox cylinder with even ink color.
10. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Specifications:

Model of Machine

YTB-6

Max. Width of Printing Material

600mm-3200mm

Max Printing Length

280-1000mm

Printing plate lifting system

Automatic

Mechanical speed

80-120m/min

Printing Speed

80-100m/min

Anilox cylinder

50-1000LPI

Register precision

±0.05mm

Rewinder&Unwinder DLA

±800mm

Main Motor

3.7kw

Weight

6000kg

Overall Dimension

5500*2100*3000mm

Applications:

This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Our priinting effect:

PLC Control Six Colors Flexo Printing Machine Double Side Printing With Doctor Blade
