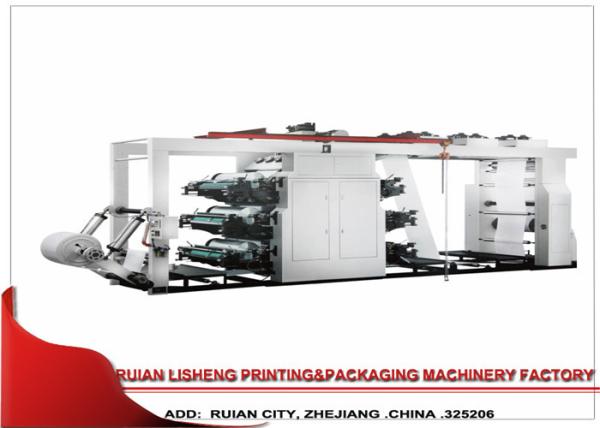

6 Colors Double Face Flexo Printing Machine For Handle Bag Printing

Feature:

1. Ink anilox roller: Ceramic anilox ink roller, lines 100PLI ~ 1000PLI, high speed dot reproduction rate,
Screen printing, structured, three-dimensional sense of strong, registering accurately;
2. Ink: Adopt automated circulation system, transport ink adopt single small motor;
3. Speed control: Adopt Japan frequency speed control, small fluctuations running;
4. Unwinding correcting: Adopt high-grade automated sensitive-photocell correcting system;
5. Unwinding and winding ways: Adopt magnetic automatic tension control;
6. Ink input pattern: Adopt unique doctor blade, and equipped with automatic ink pump unit;
7. Up and down version: Adopt hydraulic automatic landing version;
8. Smooth roller: Adopt special steel processing, and after special treatment, with10um plating hard
Chromium protective layer thick, beat within 0.02mm;
9. Led guid roller: Adopt a small semi-sealed bearings produced in Japan, with static balance
And dynamic balance treatment, hard oxidation treatment, small resistance, small beating;
10. Dryers: Three sets with ventilation hair heating devices, which use the central heating temperature
Control system and the control group;
11. Frame: Thick wall (75mm), longer bridges, the base, make the machine more stable;
12. Machine control system: PLC devices, starting, stopping, running, line adopts PLC control, automation and better equipment and more humane. (can add voice prompts system)

Options:

1)Enclosed Doctor Blade/ General type single-side doctor blade
2)Pneumatic automatic unwind
(Max. Bearing Weight: 1 ton /Range of Diameter of Roll Material: 1000mm~1200mm)
3)Pneumatic automatic wind
(Max. Bearing Weight: 1 ton /Range of Diameter of Roll Material: 1000mm~1200mm)
4)Big drum winding
(Max. Bearing Weight: 1 ton /Range of Diameter of Roll Material: 1000mm~1200mm)
5)Hydraulic automatic unwind (Over 1 ton)
6)Hydraulic automatic wind (Over 1 ton)
7)Photocell correction system / Servo Correction System
8)Computer graphics detection system
9)PLC control device
10)Ceramic anilox roller / Metal anilox roller
