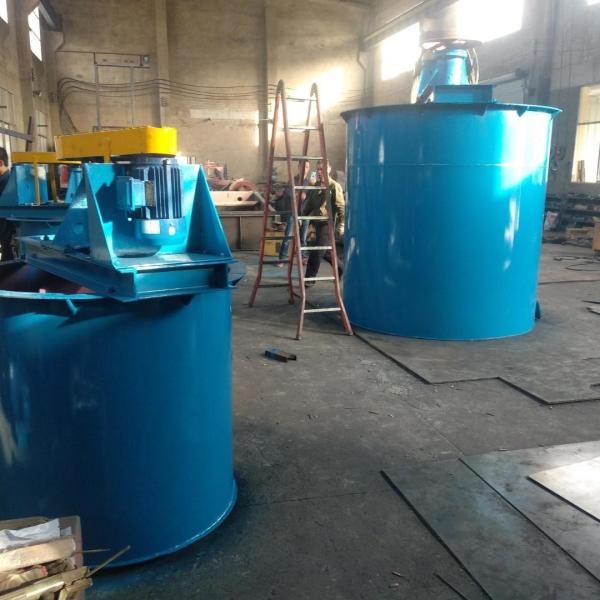

Custermized Small High Shear Emulsifier Mixer Tank Stainless Steel Mixing Tank with Agitator
Custermized Small High Shear Emulsifier Mixer Tank Stainless Steel Mixing Tank with Agitator
Specifications
Brand Name :
Y&X
Model Number :
Mining Mixer
Certification :
Quality Management System Cerification
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30 days
Packaging Details :
Standard Shipping Packaging
Condition :
New
Origin :
China
Lifting height :
1m
Name :
Mining Mixer
Weight :
6.1t
Models :
Y225M-6
Description

Custermized Small High Shear Emulsifier Mixer Tank Stainless Steel Mixing Tank with Agitator

Introduction
The motor and the V-belt of the motor or the gear motor drive the impeller of the stirring tank to rotate. This process can suspend the solid particles and fully mix the medicament and the slurry. The mixing tank has the functions of slurry mixing, mixing storage tank, improved mixing, and chemical mixing. It is suitable for the beneficiation industry and can also be used for the mixing of slurry in other industries.

Feature

The impeller rotating in the tank is similar to the function of centrifugal pump. It uses its suction to absorb the material pump from the feed pipe to the cavity of impeller and then fling the pulp out along the centrifugal directions around the impeller. The slurry which was flung out fills the tank and makes the solid phase to suspend, thus achieving lifting effect of agitation. When the altitude difference is inadequate or relative less for pumping due to the configuration of equipment, lifting agitation tank can be adopted.

Parameter

Models Effective volume Diameter of tank Rotating speed Driving motor Lifting height Weight
Models Power
m³ mm r/min kw m t
XBT-Ф1000×1500 1 1000 502 Y132S-4 5.5 1.0 0.99
XBT-Ф1500×1800 3 1500 400 Y132M-4 7.5 1.2 1.62
XBT-Ф2000×2000 6 2000 363 Y180L-6 15 1.5 2.26
XBT-Ф2500×2500O 12 2500 363 Y200L2-6 22 1.5 4.27
XBT-Ф3000×3000 19,1 3000 363 Y225M-6 30 1.5 6.1


Why choose our company machine?


Q1: Hi, are you a mining machinery manufacturer?
Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.

Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.

Q3: How long does it take to deliver?
Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.

Q4: Do you provide machine operation guidance?
Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
