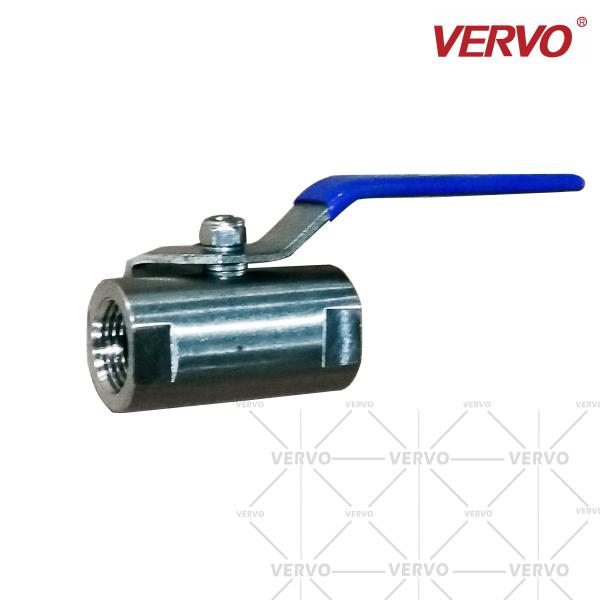

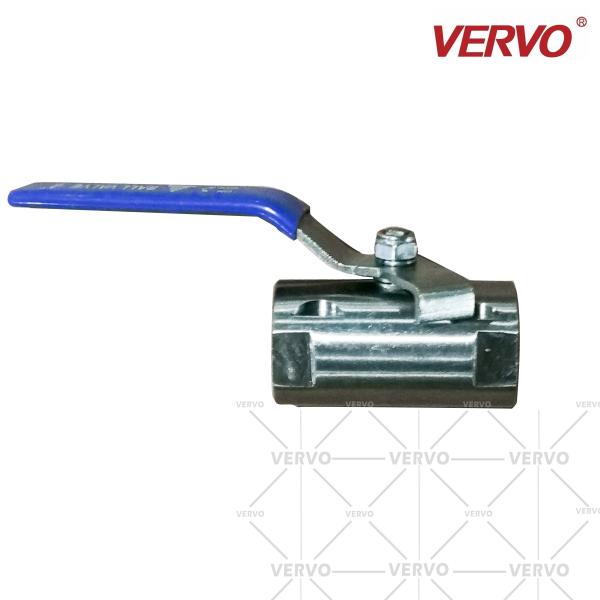

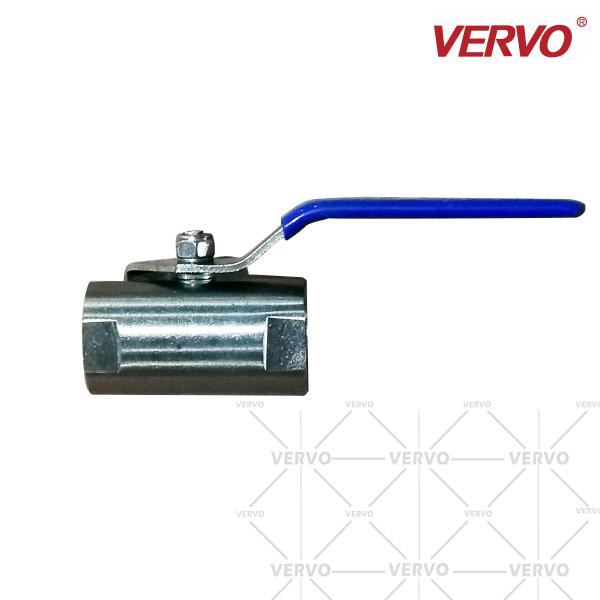

DN25 Bar 1 Piece Ball Valve One Piece Type Stainless Steel Soft Seal Internal Thread Ball Valve Side type API608

Features:

Uses:

• Commonly used in standard applications where a study valve is required and a reduced flow is not important to the application.
• Advantages:
• A One piece ball valve is known for its low cost and Robust design.Low chance of leaking, since there are no body joints.
• Thread:
• Typical for threaded ball valves, the 1 piece comes with female NPT threads on both ports.
• Presure Rating:
• Pressure rated at 1000 PSI WOG (Water, Oil, Gas).
• Port:
• Designed with a reduced port, also known as a standard port.
• Material:
• Our 1-piece valves are made with quality grade 316 stainless steel.

PRODUCT RANGE

Sizes NPS 1/2 to NPS 4

Class 150 to Class 2500

MATERIALS

Available Bar material (A105, A182 F304, F3304L, F316, F316L, A182 F51, F53, A350 LF2, LF3, LF5)

DESIGN FEATURES

Full or Reduced Bore

RF, RTJ, or BW

Bolted bonnet or welded body design

Anti-Static Device

Anti-Blow out Stem

Cryogenic or High Temperature, Extended Stem

DESIGN STANDARD

Design & manufacture according to API 6D, API 608, ISO 17292

Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard

End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)

Test & inspection according to API 6D, API 598

Fire safe design according to API 6FA, API 607

Also available per NACE MR-0175, NACE MR-0103, ISO 15848

FAQ

1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock
