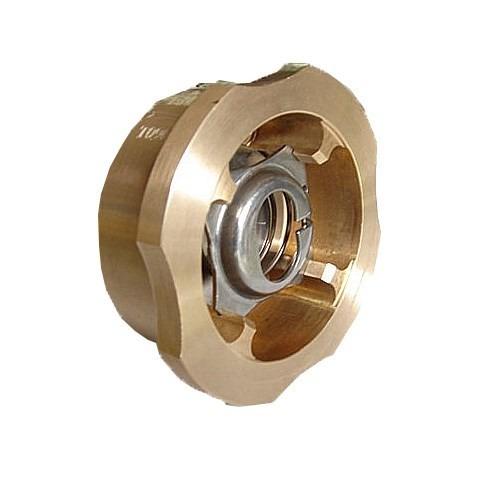

NRV Api 594 Wafer Check Valve Class 600 DN150 Full Bore Single Dual Plate Check Valve
NRV Api 594 Wafer Check Valve Class 600 DN150 Full Bore Single Dual Plate Check Valve
NRV Api 594 Wafer Check Valve Class 600 DN150 Full Bore Single Dual Plate Check Valve
NRV Api 594 Wafer Check Valve Class 600 DN150 Full Bore Single Dual Plate Check Valve
NRV Api 594 Wafer Check Valve Class 600 DN150 Full Bore Single Dual Plate Check Valve
NRV Api 594 Wafer Check Valve Class 600 DN150 Full Bore Single Dual Plate Check Valve
Specifications
Brand Name :
VERVO
Model Number :
H71W-DN150-600LB
Certification :
API/ISO/CE
Place of Origin :
LISHUI,ZHEJIANG
MOQ :
1
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
400000
Delivery Time :
30
Packaging Details :
plywood case
Design standard :
API594
Body material: :
Casting Steel B148 C95800
Nominal diameter :
6Inch/DN150
Pressure :
600LB
End connection. :
WAFER END
Face to face :
API594
Test and inspection :
API 598
Description

DN150 Single Disc Lift Check Valve 600LB Wafer Full Bore Non Return Valve Casting Steel Single Plate Piston Check Valve

Item Single Check Valve Stainless Steel Check Valve
Certification ISO9001,ISO14001,ISO18001,TS,CE,API
Brand VERVO
Model number H71W-DN150-600LB
Port Size 6Inch /DN150
Structure type Single Disc Lift Check Valve
Pressure 600LB(PN100)
Temperature -46-325
Connection form WAFER END
Material Casting Steel B148 C95800
Feature Easy disassembly

Quick Detail

NRV Api 594 Wafer Check Valve Class 600 DN150 Full Bore Single Dual Plate Check Valve

Design standard: API 594, API 6D.
Body material: Casting Steel B148 C95800
Nominal diameter: 6" (DN150).
Pressure: CL600 (PN100).
End connection: WAFER.
Face to face: API 594.
Working temperature: -46-325℃.
Test and inspection: API 598.

Product Range

NRV Api 594 Wafer Check Valve Class 600 DN150 Full Bore Single Dual Plate Check Valve

Body Material: Carbon Steel, Stainless Steel, Alloy Steel,AL-BRONZE
Normal diameter: 1/2"~48" (DN15~DN1200).
End connection: Wafer, Lug, Clamp, Flanged.
Pressure range: 150 lbs~2500 lbs (PN10~PN420).
Working temperature: -196℃~ +560℃.

Compact structure

NRV Api 594 Wafer Check Valve Class 600 DN150 Full Bore Single Dual Plate Check Valve

Wafer design, spring lift type, shut off by spring loaded plate, can provide better performance in eliminating water hammer.

Design specification

Face to face dimension as per manufacturer’s standard.

Long type and short type are available.

Inherently fire safe design

All VERVO check valves are inherently fire safe due to the valve design, material and construction. In case of fire, both resilient seat and metal seat valves provide metal to metal sealing performance.

Light weight and reduced size

Installation costs are greatly reduced by VERVO’s light weight and minimal space requirements. The compact design minimizes the distance between flanges and is easily installed between all flanges.

Horizontal/Vertical installation

Unlike most traditional swing check valves, VERVO check valves are ideal for both horizontal and vertical pipeline installation.

NRV Api 594 Wafer Check Valve Class 600 DN150 Full Bore Single Dual Plate Check Valve

FAQ

NRV Api 594 Wafer Check Valve Class 600 DN150 Full Bore Single Dual Plate Check Valve

1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock

Keywords of DN150 Single Disc Lift Check Valve 600LB Wafer Full Bore Non Return Valve Casting Steel Single Plate Piston Check Valve

NRV Api 594 Wafer Check Valve Class 600 DN150 Full Bore Single Dual Plate Check Valve

DN150 API594 Piston Check Valve,600LB Lift Check Valve,Casting Steel Check Valve, Casting Steel C95800 Single Disc Lift Check Valve,DN150 Piston Check Valve,600LB AL-BRONZE B148 C95800 Check Valve,API594 Single Disc Lift Non Return Valve,NRV Check Valve
