Specifications
Brand Name :
HONWAY
Model Number :
HWS200
Certification :
CE SGS ISO9001
Place of Origin :
China
MOQ :
1Set/Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
100 Sets per month
Delivery Time :
7 working days
Packaging Details :
High Density Polyethylene pallet; Conform to export standard
Power option :
5.5KW Motor for 380V 3P
Working width :
200mm
Working Depth :
1-3mm
Drum rotation :
Changeable
Depth control :
Yes
Num of shaft :
6pcs
Num of cutter :
78pcs
Machine weight :
120KG
Walking way :
Push model
Packing size :
1100*530*970mm
Description

Concrete Scarifier Machine For Floor Removal

Floor scarifier, also called floor milling machine, or floor removal machine, is used to remove the floor surface coatings and makes uneven surface. HWS200 offers high speed, accurate surface preparation at an economical price. It cleans and prepares concrete surface prior to floor coating and floor covering.

Parameters:

Model HWS200 HWS200E
Power OPtion 9HP Honda Engine 5.5KW Motor for 380V,3P
Working Width 200mm 200mm
Working Depth 1-3mm 1-3mm
Drum Rotation Down cut(clockwise) Down cut(clockwise)
Drum Assembly Changeable Changeable
Depth Control Yes Yes
Num of Shaft 6pcs 6pcs
Num of Cutter 78pcs 78pcs
Machine Weight 105KG 120KG
Packing Size 1100*530*970mm 1100*530*970mm
Walking Way Push model Push model

Application:

removing heavy floor tile mastics , rubbery elastomeric or epoxy materials

Remove floor coating, paints and epoxy.

Groove walkways to make them slip resistant

Stick to new material more tightly.

Features

Special heat treatment for the drum, shafts, and cutters

Double bearings design for a long lasting life

Change the drum assembly in a few minutes

Long life tungsten carbide cutters

The multiple belt makes the service life longer

Product Details

2, Drum, shaft, TCT cutters, spacer are high tensile strength, excellent anti-tigue capability, and superior welding performance.

Drum assembly is made in special technique, for long time use.

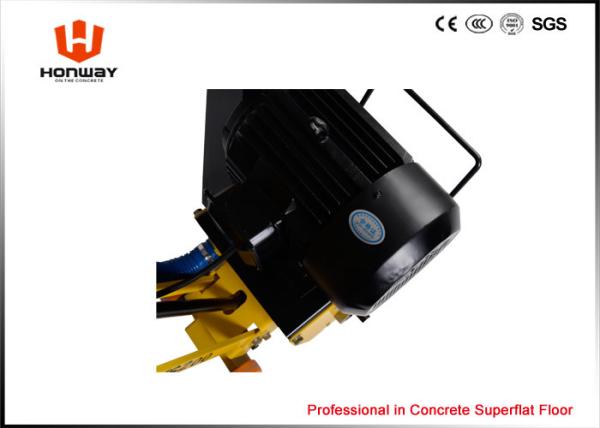

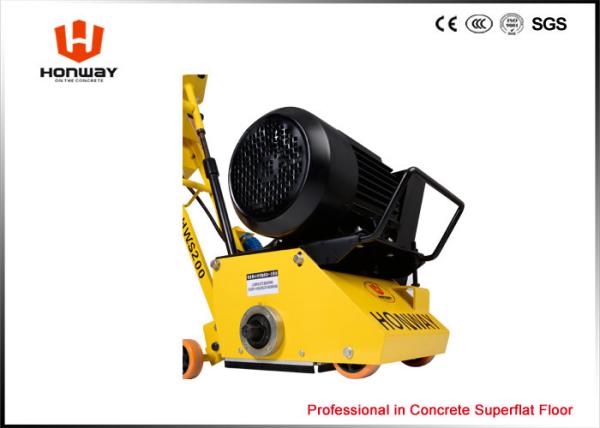

Closer Look

Compact Scarifying Concrete Equipment , Floor Removal Machine Changeable Drum Rotation

Compact Scarifying Concrete Equipment , Floor Removal Machine Changeable Drum Rotation

Compact Scarifying Concrete Equipment , Floor Removal Machine Changeable Drum Rotation

Production Flow

Compact Scarifying Concrete Equipment , Floor Removal Machine Changeable Drum Rotation

Company introduction

Changsha Honway Machinery Co., Ltd is the Professional manufacturer for floor scarifying & grinding & polishing machine in China. Our company is well equipped with CNC machine for mechanical treatment and gear hobbing machines for gear processing. We are proud of having a team of experienced technicians and workers. All of the products are CE certified and comply with international standard. The products are already exported to 20 countries and got the good reputation.

After Sell Service

1. one year of warranty for machine.

2. In the warranty period, the spare parts are sent by DHL, which is paid by Honway Company.

3. Out of warranty period, the spare parts are sent by DHL, which is paid by customer.

4. Honway always store the spare parts of old models, in case that the machine needs repair in future.

5. Our strong R&D department offers technology support within 8 hours.

6. Topwell care service will follow you and your machine for years.

FAQ

Q: Why the bearing needs to inject grease within 4 hours?

A: See the above explanation, please. It is very important.

Q: How to maintain the floor scarifier?

A: Grease the bearing within a few hours. This is very important. When it starts work, don't put down the drum suddenly. It is easy to break up.

Q: How about the quality of motor or gasoline engine?

A: The engine is Honda, made in China, but real Honda; the motor is made up of pure coppers, which we use it for many years.
