Specifications
Brand Name :
HONWAY
Model Number :
HW-G3
Certification :
CE SGS ISO9001
Place of Origin :
China
MOQ :
1Set-Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
100 Set/Sets Month
Delivery Time :
7 working days
Packaging Details :
Pallet, high quality polywood; Conform to export standard; Packing
Voltage :
220V-240V/1Phrase 380V-440V/3Phrase
Frepuency :
50/60HZ
Current :
7.6A
Power output :
5.5hp(4kw)
Inverter power :
5hp(3.7kw)
Motor speed :
300-1600rmp
Grinding width :
500mm
Disc diameter :
250mm*2plate
N.W :
110KG
Warranty :
1 year
Water tank :
20L
Dimension :
970*500*700mm
Description
Marble Floor Grinding Machine With Double disc

HW-G3 is used to grind and polish the concrete, terrazzo, marble, and artificial floor. It is driven by bell, together with gears. The counter rotating plates provide balanced torque which prevents the machine pull from left and right. It is suitable to level small area of uneven joints or high sports of 1/16 to 1/8 inch.

Application:

floor surface preparation and renovations

remove paint, epoxy and adhesives

Features:

Folding design, easy to pack and move

Integrated central control panel

360degree handle

Automatically adjust balance

Parameters

Model HW-G3
Voltage: 220V single phrase
Power output: 4KW,5.5hp
Inverter power: 3.7kw, 5hp
Frequency: 50/60HZ
Current: 7.6A
Grinding width: 500mm
Dis diameter: 250mm*2
Additional weight: 10kg*2pcs
Dust Port: Φ50mm
NO.of grinding plate Double plates
Diamond pad holder: 6 Pieces
Machine L*W*H: 970*500*700mm
Water tank: 20L
Net weight: 95KG/205lbs

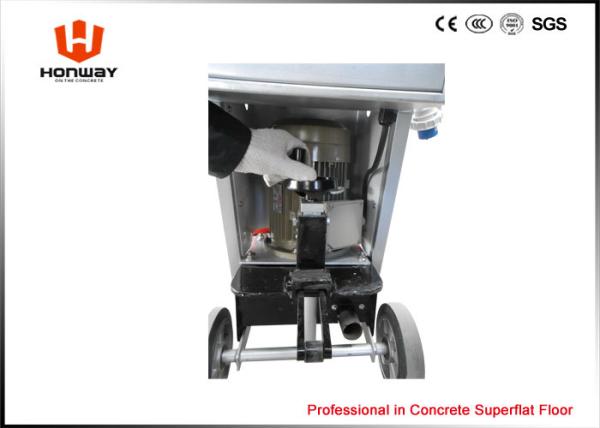

Closer Look

Removing Paint / Epoxy Marble Floor Grinding Machine With Double Disc

Removing Paint / Epoxy Marble Floor Grinding Machine With Double Disc

Removing Paint / Epoxy Marble Floor Grinding Machine With Double Disc

Production Flow

Removing Paint / Epoxy Marble Floor Grinding Machine With Double Disc

Company introduction

Changsha Honway Machinery Co., Ltd is the Professional manufacturer for floor scarifying & grinding & polishing machine in China.

1, Well equipped facilities for mechanical process.

2, Strict quality control throughout the stages of production.

3, A team of experienced technicians and workers.

4, All products are CE certified, comply with international standard.

5, Covering a production area of 1000 square meter.

After Sell Service

  1. One year of warranty for machine.
  2. Honway always store the spare parts of old models, in case that the machine needs repair in future.
  3. The spare parts can be sent out immediately at any time, delivered by DHL.
  4. Honway will service you and your machines for years.
  5. All gear boxes are tested 48 hours before it leaves factory.
  6. If the customers visit our factory, we could provide the training lessons.
  7. We always supply the spare parts for all the old models.

FAQ

Q: If your machine can be customized?
A: Yes, we can design and produce according to client’s requirements.

Q: What is your payment method?
A: 100% or 50% T/T advance, the balance should be paid before shipment. (for old customers, we could discuss again)

Q: How about your delivery time?
A: 7~20 days (according to the order quantity)
