220v 110v 50hz 60hz Concrete Floor Grinding Machine For Small To Medium Floor Area
220v 110v 50hz 60hz Concrete Floor Grinding Machine For Small To Medium Floor Area
220v 110v 50hz 60hz Concrete Floor Grinding Machine For Small To Medium Floor Area
220v 110v 50hz 60hz Concrete Floor Grinding Machine For Small To Medium Floor Area
220v 110v 50hz 60hz Concrete Floor Grinding Machine For Small To Medium Floor Area
220v 110v 50hz 60hz Concrete Floor Grinding Machine For Small To Medium Floor Area
220v 110v 50hz 60hz Concrete Floor Grinding Machine For Small To Medium Floor Area
220v 110v 50hz 60hz Concrete Floor Grinding Machine For Small To Medium Floor Area
Specifications
Brand Name :
HONWAY
Model Number :
HW-G1
Certification :
CE SGS ISO9001
Place of Origin :
China
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
100 Set / Sets month
Delivery Time :
3-7 Working days
Packaging Details :
High Density Polyethylene pallet; Conform to export standard.
Voltage :
220V single phrase
Power output :
2.2kw 3hp
Motor brand :
Honway
Current :
13A
Grinding width :
280mm / 11”
Grinding pressure :
41KG / 90.2lbs
Net Weight :
75KG / 165lbs
Additional Weight :
N / A
Motor speed :
1440rmp
Dust Port :
Yes
Water Pipe :
No
Package Weight :
90KG
Variable Soeed :
No
Description

220v 110v 50hz 60hz Concrete Floor Grinding Machine for small to medium floor area

Brief introduce of G1:

Floor edge grinder HW-G1 is strongly recommended as it is designed to grind small floor area, most of all, it reaches the floor edge and sides,only 2mm margin;

220v, single phrase, working width is 280m;

Light and compacted design;

Parameters:

Model: HW-G1
Voltage: 220V 1phrase
Power output: 2.2KW,3hp
Motor Brand: China Wonder
Frequency: 50/60HZ
Current: 13A
Grinding Width: 280mm/11”
Grinding Pressure: 41KG/90.2lbs
Additional Weight: N / A
Dust Port: Φ 50mm
Motor Speed: 1400rmp
NO.of Diamond Pad: 6 pcs
Machine L*W*H: 1100*420*1000mm
Net Weight: 75KG/165lbs


Advantages:

1, Light machine, for grinding small area;
2, Grind floor edge, only 2mm margin;
3, Motor is Wonder Brand;

4, Electrical elements are Schneider;

5, Aluminum and PU wheels;

6, Floating cover and vacuum port, for free dust;

Closer Look

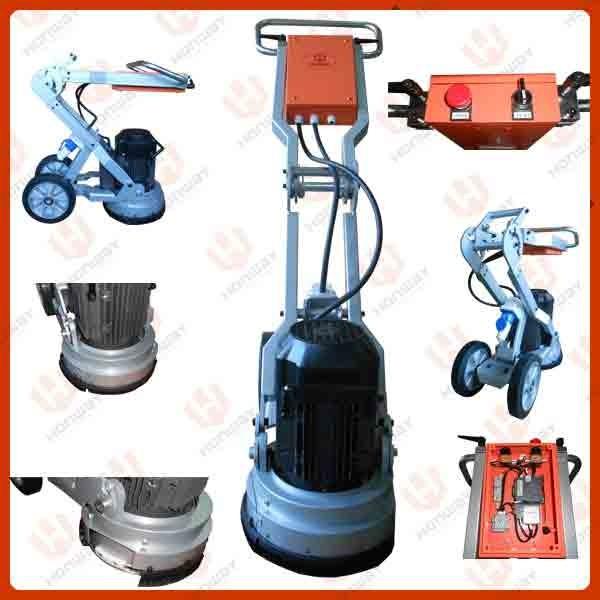

Grinding plate and diamond tools of HW-G1

220v 110v 50hz 60hz Concrete Floor Grinding Machine For Small To Medium Floor Area 220v 110v 50hz 60hz Concrete Floor Grinding Machine For Small To Medium Floor Area

Where is Honway company?

Honway is located in Changsha, capital of Hunan province. It is 1000km away from Shanghai / Guangzhou. It takes 3 hours for high speed train from Guangzhou to Changsha. Changsha is well known as 'Captial of Construction Machinery in China'' as she is abundant with construction machinery industry.

Production Flow

220v 110v 50hz 60hz Concrete Floor Grinding Machine For Small To Medium Floor Area

After sell Service

1. One year of warranty for machine.
2. We always supply the consumables.
3. We always supply the spare parts for all the old models.
4. The spare parts can be sent out immediately at any time, delivered by DHL.
5. The CD and operation manual is sent with machine to guide the installation process works and repair problems.
6. All machines are tested, and the testing record will be kept, before it leaves factory.
7. If the customers visit our factory, we could provide the training lessons.

FAQ
Q: If the floor edge grinder could grind floor?
A: Yes, it can; its grinding width is 280mm and its grinding pressure is 90.2 lbs;

Q: if HW-G1 could grind floor edge and leaves no margin at all?
A: G1 could grind floor edge, but leaves margin of 2mm, which is the narrowest margin which the floor edge grinder could achieve. It is impossible for any machine to leave margin 0mm.

Q: if HW-G1 could grind right edge and left edge?
A: Yes. It can; the two sides could grind floor edge.

Q: How about the floating cover of HW-G1?
A: The floating cover follow floor up and down, preventing dust from entering work site.
