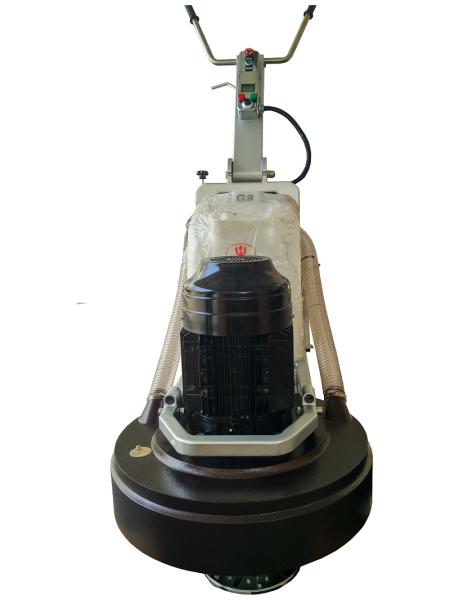

750MM Floor Grinding And Polishing Machine for Polished Concrete Floor Epoxy Floor Hardened Floor
HW-G8 adopts epicyclic gear box, 3 grinding plates with 9 grinding heads, auto rotation and turnover grinding for smooth operation and high efficiency.
220v or 380v voltage selectable, able to meet the demands of different regions.
Application:
Grinding and polishing on surfaces covering concrete, epoxy, stone, marble, granite, terrazzo, etc.
Old floor removal, restoration, renovation.
Removing adhesive residues, mastics, epoxies, urethane, paint and thick coatings.
Parameters:
Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
Frequency | 50/60HZ | 50/60HZ |
Current | 39.2A | 22.6A |
Power Output | 15hp(11KW) | 15hp(11KW) |
Inverter power | 15hp(11KW) | 15hp(11KW) |
Motor speed | 300-1600rpm | 300-1600rpm |
Grinding width | 750mm | 750mm |
Disc Dianeter | 250mm*3plate | 250mm*3plate |
N.W | 390KG | 390KG |
Water Tank | 30L | 30L |
Dimension | 970*750*1050mm | 970*750*1050mm |
Features
1, Adjustable handle 180 degree forward or backward for operator comfort.
2, Motor and inverter are approved CE, quality assured!
3, Dual rear wheel, independently driven, steering easily.
4, Integrated central control panel design, variable frequency speed adjustment, the official turn adjustment, simple operation.
Contrast
HONWAY: Gear box is smooth and clean exquisite craftwork.
OTHERS: Gear box is coars even the dregs are left by parts processing.
HONWAY: Bearing is NSK, made in Japan, famous bearing name.
OTHERS: Chinese bearings, the quality is not as good as that of Japan brand.
HONWAY: Famous brand TTO seal made in Taiwan.
OTHERS: No brand, not imported seal.
HONWAY: Poly urethane rubber pads, the flexibility is adjusted many times, for long life.
OTHERS: Common material, the flexibility is not enough, easy to break.
HONWAY: High strength steel, hard, solid.
OTHERS: Common strength steel, even rust.
HONWAY: High grade gear hobbin high-accuration.
OTHERS: Not high grade gear hobbing, not high-accuration.
Closer Look
Company introduction
Changsha Honway Machinery Co., Ltd is the professional manufacturer for floor scarifying & grinding & polishing machine in China. We are located in Changsha city which is well known as the capital of construction machinery in China. This city has the abundant supply of machinery engineers, workers, technique, workcraft, etc. Our company develops here and builds up as a manufacturing the machines for ‘Concrete Superflat floor’.
After Sell Service
FAQ
Q: Where is your factory?
A: It is located in Changsha, Hunan province. Welcome you come to our factory and produce process at any time.
Q: What kind of machine you supply?
A: Concrete grinding machine, concrete scarifying machine, diamond tools.
Q: What voltage of your machine?
A: 380V three phase,220V three phase and 220V single phase.
Q: What certificates of your machine?
A: 3C CE SGS
