Specifications
Brand Name :
HONWAY
Model Number :
HW-G2
Certification :
CE SGS ISO9001
Place of Origin :
China
MOQ :
1Set/Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
100 Set/Sets Month
Delivery Time :
7 Working days
Packaging Details :
High Density Polyethylene pallet; Conform to export standard
Voltage :
380V-440V, 3phrase
Power output :
4KW 5.5HP
Frequency :
50/60HZ
Current :
7.6A
Motor Speed :
1440rmp
Grinding Width :
400mm / 15.7''
Grinding Pressure :
69kg / 152lbs
Machine Weight :
95kg / 205lbs
Additional Weight :
N/A
Dust port :
∅ 50
No. of disc :
Single plate
No. of tool :
8 piece
Machine dimension :
760*420*1200mm
Packing dimension :
800*450*1000mm
Description

Light Marble Floor Grinding Machine For Hotel Use , Floor Grinding And Polishing Machine

HW-G2 has a high motor rotation rate (1440rpm), so it works effectively and continuously for a long time. The motor speed is fixed, very suitable for coarse grinding. Grinding width is 400mm, has a single grinding plate covered by a floating dust shroud.

Parameters

Model HW-G2
Voltage: 380V three phrase
Power output: 4KW,5.5hp
Motor Speed: 1400rmp
Frequency: 50/60HZ
Current: 13A
Grinding Width: 400mm/15.7”
Grinding Pressure: 69KG/152lbs
Additional Weight: N/A
Dust Port: Φ50mm
NO.of grinding plate Single one
Diamond Pad Holder: 8 Pieces
Machine L*W*H: 760*420*1200mm
Package L*W*H: 800*450*1000mm
Net Weight: 95KG/205lbs

Advantages

The floating dust cover follows up and down of uneven floor;
Single grinding plate driven by motor increases productivity;

Quick change of diamond pad, just with a hammer;

Ergonomic working posture, saving labor;

Triangle structure, less vibration;

Schneider electrical elements are quality assured.

Closer Look

Light Marble Floor Grinding Machine For Hotel Use , Floor Grinding And Polishing Machine

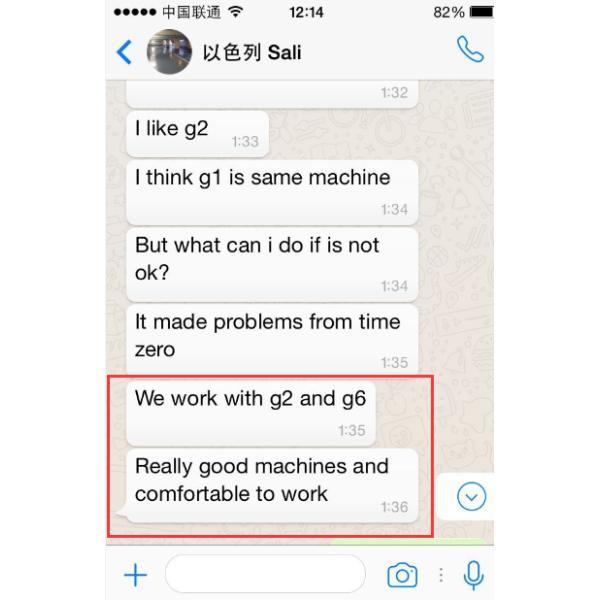

Feedback from customer

Light Marble Floor Grinding Machine For Hotel Use , Floor Grinding And Polishing Machine

Light Marble Floor Grinding Machine For Hotel Use , Floor Grinding And Polishing Machine

After Sell Service

  1. One year of warranty for machine.
  2. In the warranty period, the spare parts are sent by DHL, which is paid by Honway Company.
  3. Out of warranty period, the spare parts are sent by DHL, which is paid by customer.
  4. Honway always store the spare parts of old models, in case that the machine needs repair in future.
  5. All gear boxes are tested 48 hours before it leaves factory.
  6. We could send the technologists to distributors, for training the after sell service staff and maintenance issues.

FAQ

Q: How about the floating cover of HW-G2?

A: The floating cover follow floor up and down, preventing dust from entering work site.

Q: If the machine vibrates when it works?

A: HW-G2 has a chassis which is made of triangle structure. It is more stable and less anti-vibrate. Besides, the machine frame is made of steel tubes, not steel plate, so it could support machine more and decrease vibration.

Q: What is the brand of motor and electrical element?

A:The motor is from the old motor factory over 50 years. Honway uses it since the factory is built up. The motor is made up of pure copper coils and the fault rate is below 0.5%; The electrical elements are Schneider, world brand. The brand of buttons is Dehli, famous China brand.
